Yamaha E40J - Page 77

6F65G11
5-22
9
8
7
6
5
4
3
2
1

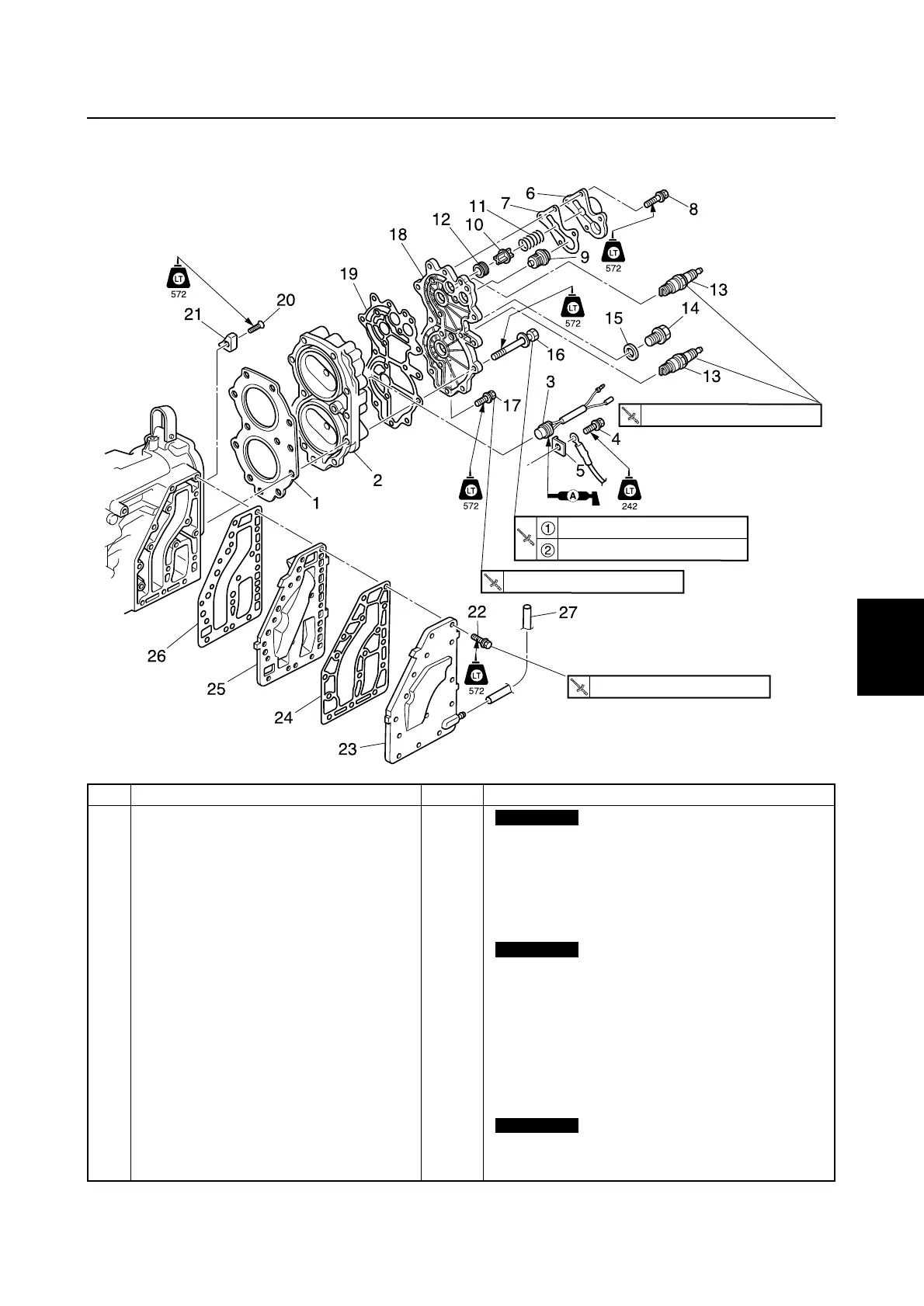

Cylinder head
6F65080E
15 N·m (1.5 kgf·m, 11.1 ft·lb)
30 N·m (3.0 kgf·m, 22 ft·lb)
12 N·m (1.2 kgf·m, 8.7 ft·lb)
25 N·m (2.5 kgf·m, 18 ft·lb)
8 N·m (0.8 kgf·m, 5.8 ft·lb)
No. Part name Q’ty Remarks
1 Gasket 1
2 Cylinder head 1
3 Thermoswitch 1
4 Bolt 1 M6 × 14 mm
5 Holder 1
6 Cover 1
7 Gasket 1
8 Bolt 4 M6 × 30 mm
9 Thermostat 1
10 Valve 1
11 Spring 1
12 Grommet 1
13 Spark plug 2
14 Bolt 1 M12 × 10 mm
15 Gasket 1
16 Bolt 11 M8 × 70 mm
17 Bolt 4 M6 × 25 mm
Not reusable
Not reusable
Not reusable
Cylinder head
