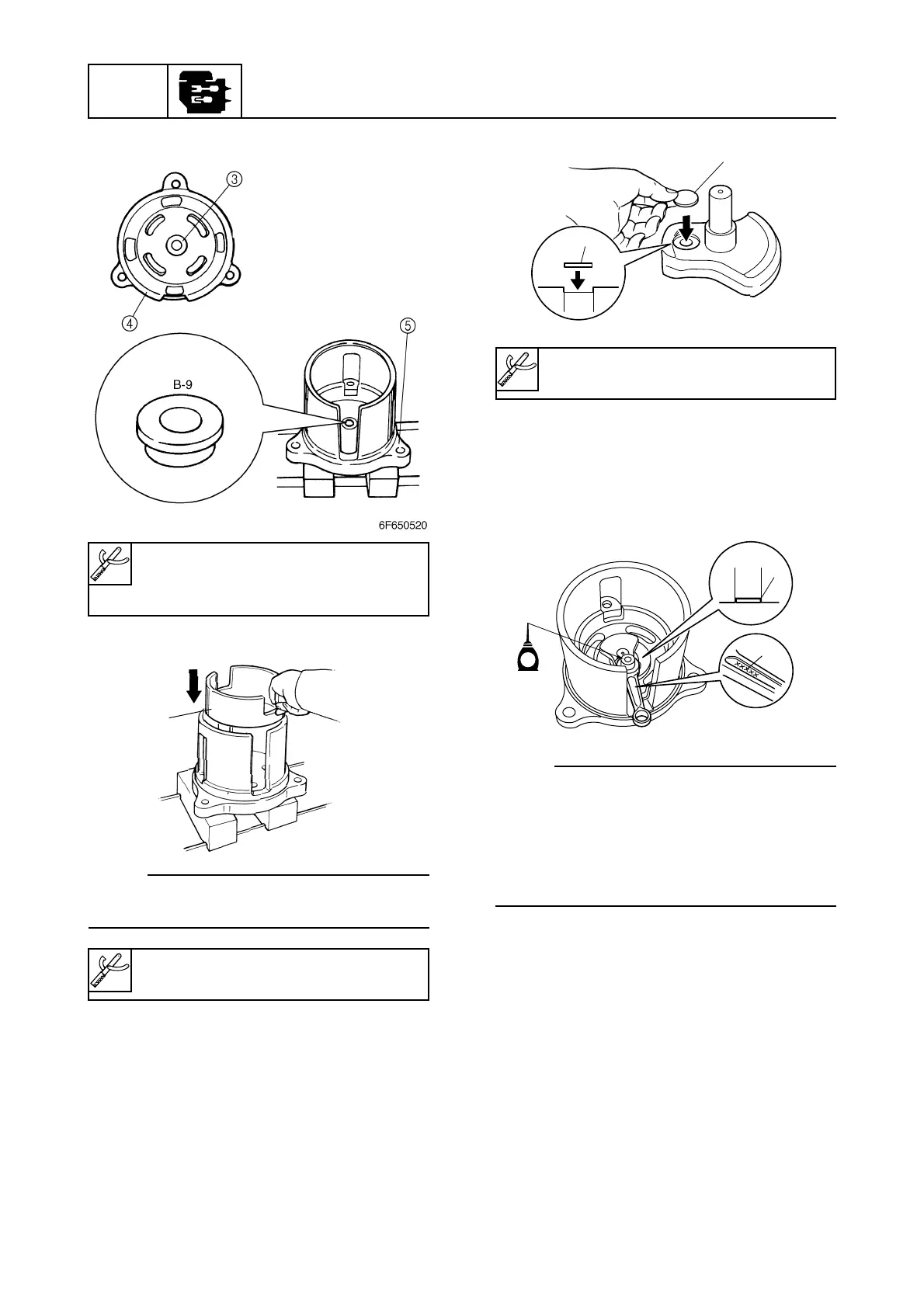

3. Insert the bushing 3 into the body 4.
4. Place the height ring 6 in the body.
NOTE:
Align the slot in the height ring with the slot in
the body.
5. Set the spacer on the crank 2 (or crank
4).
6. Set crank 2 (or crank 4) on the special
service tool.
7. Mount the washers, roller bearing, and
connecting rod on the crankpin.
NOTE:
9 Take care so that spacer C 1 does not fall
out of the crank, turn the crank over so that
the crankpin is on top, and then insert the
crank into the special service tool.
9 The model number a on the connecting
rod should face up.
6F650540
E
1
a
6F650530
1
1
Bushing-9 (D30) 3: 90890-02363
Body4: 90890-02352
Flange5: 90890-02351
Height ring (H-18) 6:
90890-02401
Spacer C 1: 90890-02404
