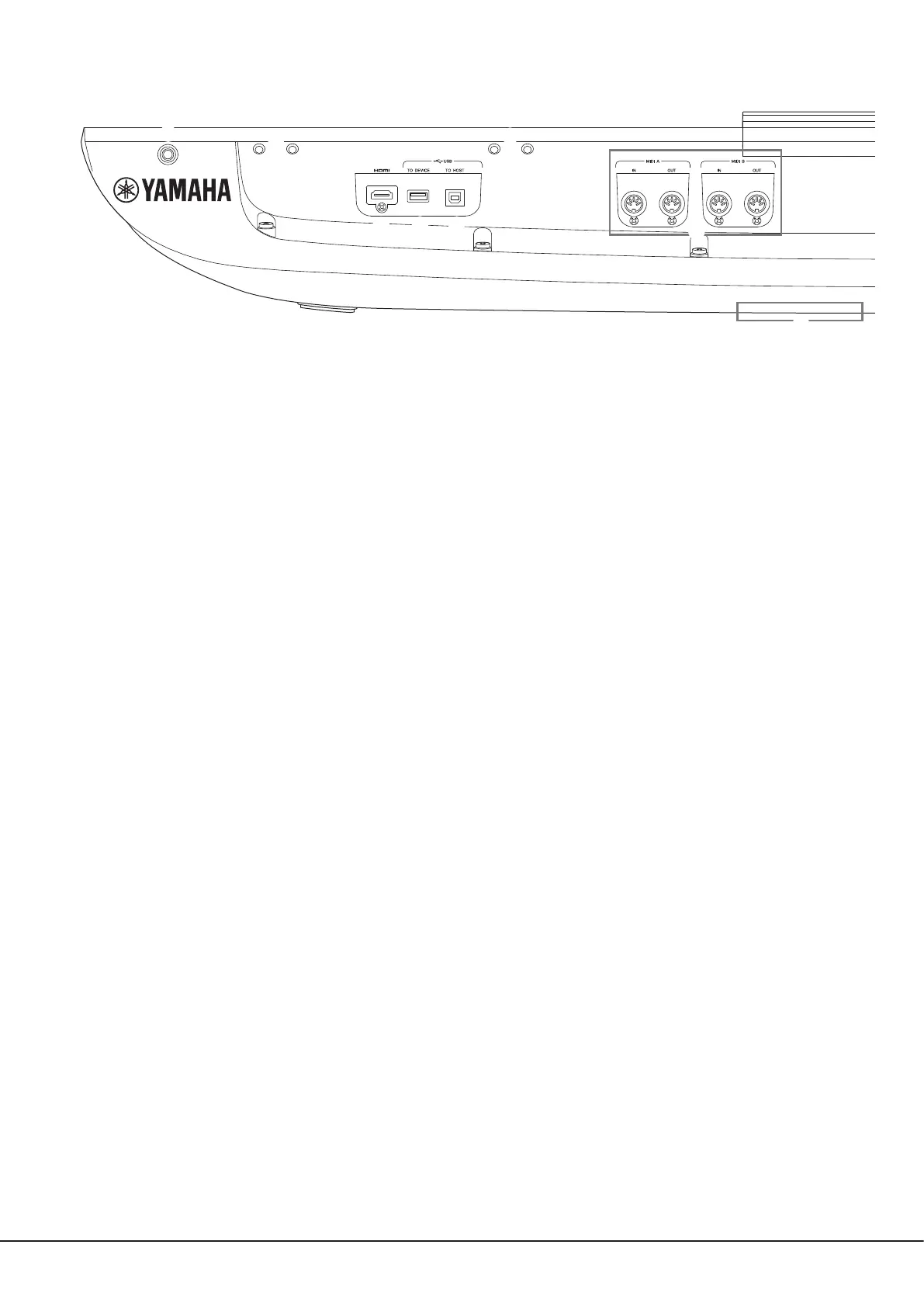

J Slots .....................................................pages 21, 124
The four slots nearest the display panel are for connecting
the music rest brackets; the other slots are for connecting
the speaker brackets of the optional GNS-MS01 speakers.
K [TO RIGHT SPEAKER] jack ......................... page124
For connecting an optional set of speakers.
L [HDMI] terminal......................................... page120
For connecting an external monitor.
M [USB TO DEVICE] terminal .........................page115
For connecting a USB ash drive.
N [USB TO HOST] terminal ............................page117
For connecting to computer, or an optional wireless MIDI
adaptor.
O MIDI terminals ............................................ page117
For connecting external MIDI devices.
P [TO SUB WOOFER] terminal ..................... page124
For connecting an optional set of speakers.
Q LINE OUT jacks ...........................................page112
For connecting audio devices such as a stereo system.
R AUX IN jacks................................................page113
For connecting audio devices such as a portable audio
player.
S ASSIGNABLE FOOT PEDAL jacks ...............page114
For connecting footswitches and/or foot controllers.
T MIC INPUT jack ...........................................page110
Combo jack for connecting a microphone.
(The combo jack accepts either XLR or 1/4" phone plug
connectors.)
a [+48V] switch .............................................. page110
Turns on and o the phantom power. When you turn this
switch on, phantom power will be supplied to the XLR jack
connected to the MIC INPUT jack. Only turn this switch
on/o after connecting a phantom powered condenser
microphone to the device. Always turn the phantom
power switch to OFF when it is not required.
NOTICE
When using phantom power, observe the following to prevent
noise and possible damage to Genos2 or connected equipment.
• Do not connect or disconnect any devices while the phantom
power switch is ON.
• Set all output level controls to the minimum before turning the
phantom power switch to ON or OFF.
• When connecting a device not requiring phantom power to the
MIC INPUT jack, make sure to turn the phantom power switch
to OFF.
NOTE
When the phantom power switch is turned on and o, the input
from MIC INPUT jack will be muted a few seconds.
b AC IN jack ..................................................... page23
For connecting the supplied power cord.
c [TO LEFT SPEAKER] jack ............................ page124
For connecting an optional set of speakers.
d [USB TO DEVICE] terminal (underneath the
instrument) ......................................... pages 21, 115
For connecting a USB ash drive. For information about
opening/closing the cover, see below.
