Yamaha MT-09 2021 - Page 197

4-64

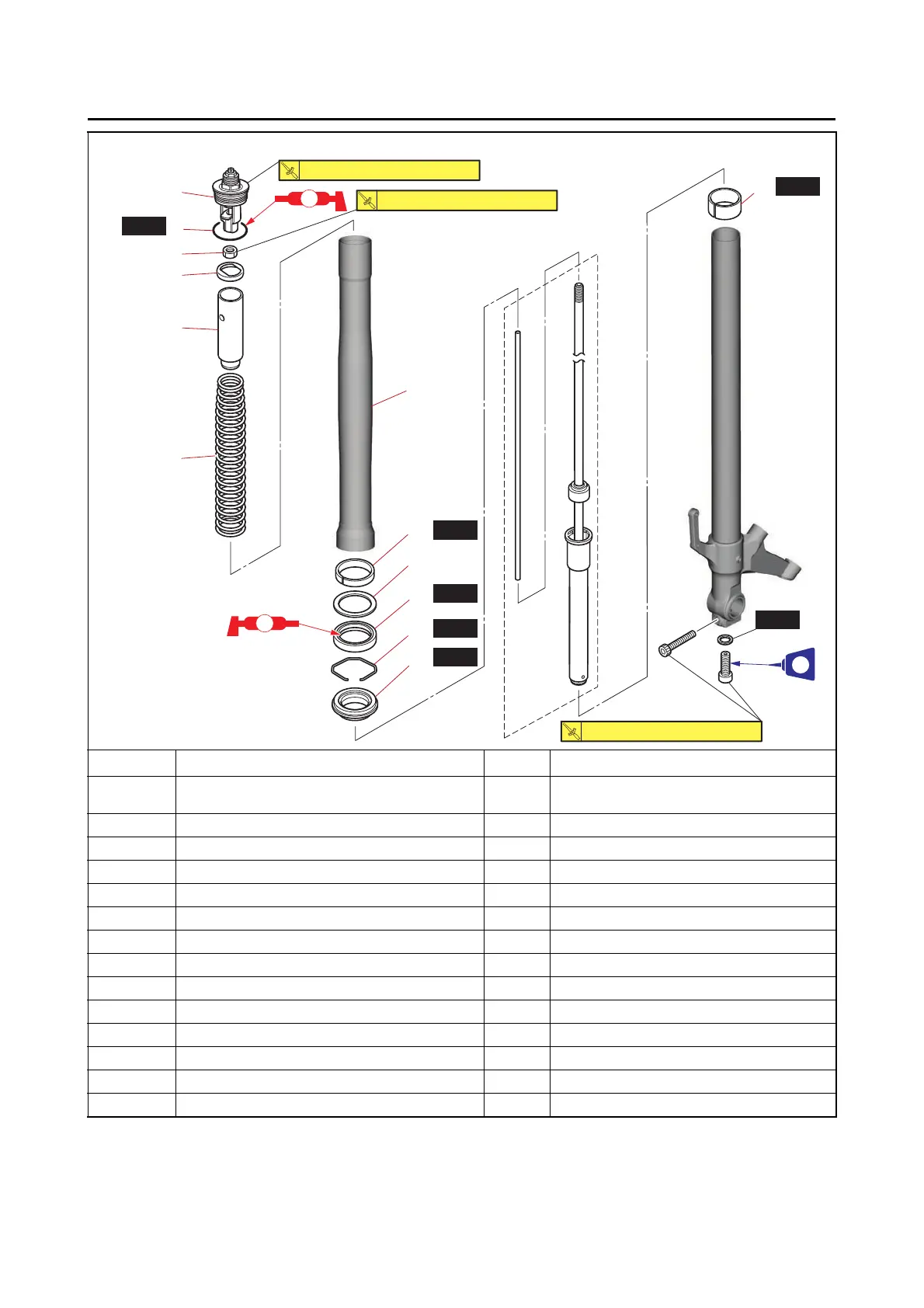

FRONT FORK
Disassembling the front fork leg
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
1 Cap bolt 1
2 O-ring 1
3Washer 1
4 Spacer 1
5 Fork spring 1
6 Locknut 1
7 Dust seal 1
8 Oil seal clip 1
9 Outer tube 1
10 Oil seal 1
11 Washer 1
12 Outer tube bushing 1
13 Inner tube bushing 1
LT
LS
LS
9
12
1
2
6
3
4
5
11
10
8
7
New
New
NewNew
New
New
New
New
13
23 N
•
m (2.3 kgf
•
m, 17 lb
•
ft)
T
.R.
15 N
•
m (1.5 kgf
•
m, 11 lb
•
ft)
T
.R.
23 N
•
m (2.3 kgf
•
m, 17 lb
•
ft)
T
.R.
