Yamaha MT-09 2021 - Page 315

5-88
TRANSMISSION

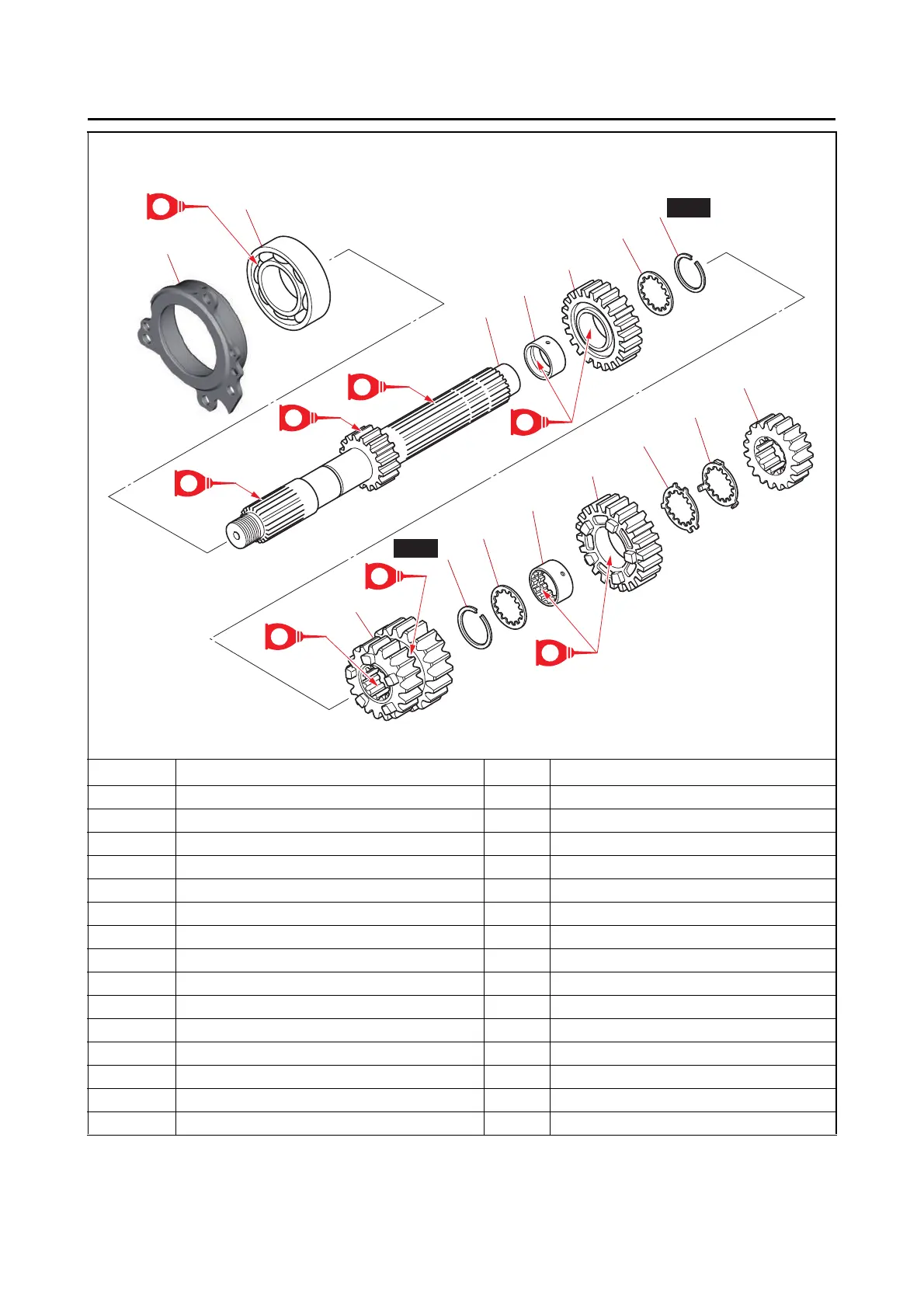

Disassembling the main axle assembly
Order Job/Parts to remove Q’ty Remarks
1 2nd pinion gear 1
2 Toothed lock washer 1
3 Toothed lock washer retainer 1
4 6th pinion gear 1
5Collar 1
6Washer 1
7 Circlip 1
8 3rd pinion gear 1
9 Circlip 1
10 Washer 1
11 5th pinion gear 1
12 Collar 1
13 Bearing housing 1
14 Bearing 1
15 Main axle 1
9
10
12
15
13
14
7
8
6
5
4
3
2
1
11
E
M
M
M
M
M
M
M
New
New
