Yamaha MT-09 2021 - Page 316

5-89
TRANSMISSION

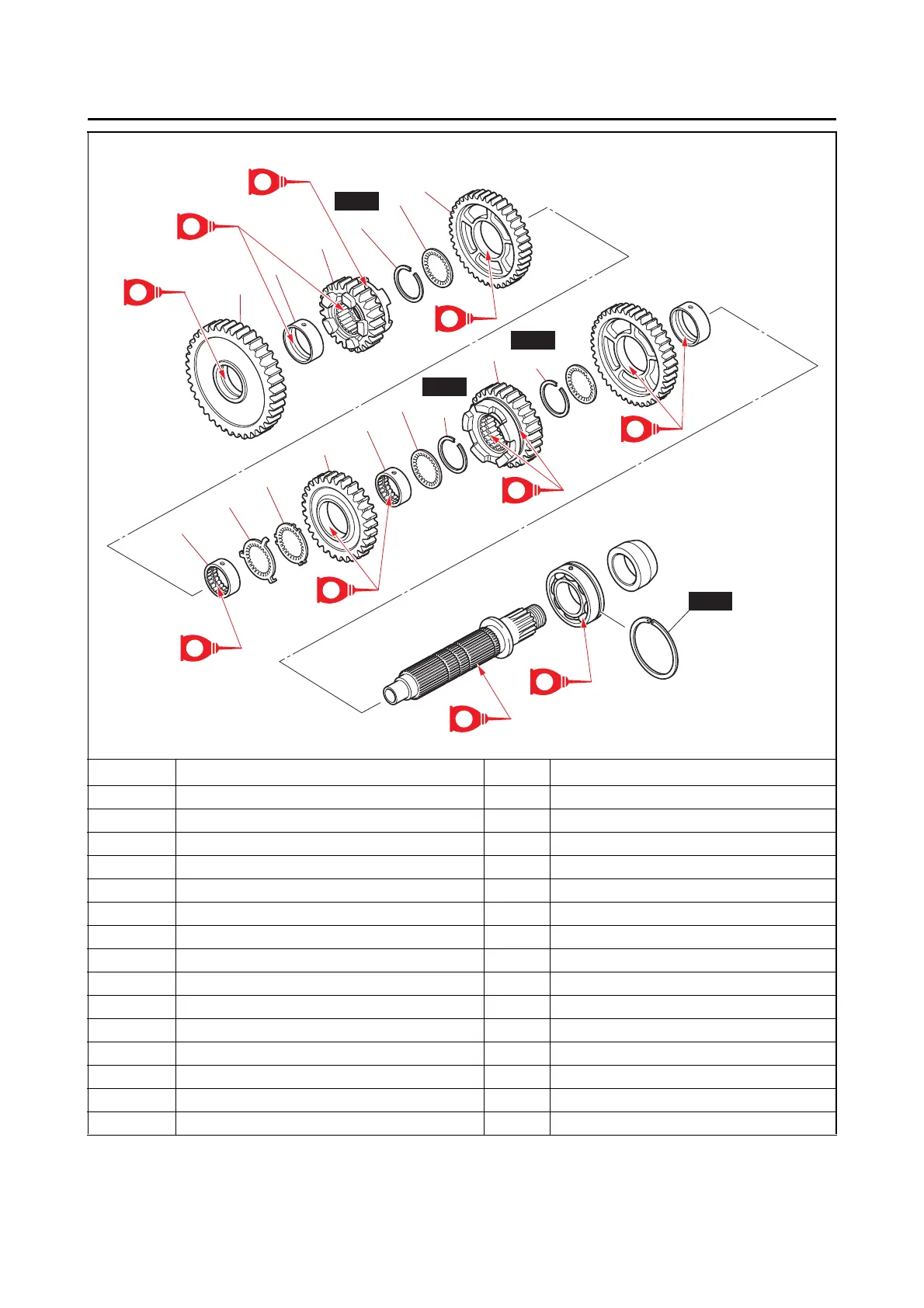

Disassembling the drive axle assembly
Order Job/Parts to remove Q’ty Remarks
1 1st wheel gear 1
2Collar 1
3 5th wheel gear 1
4 Circlip 1
5Washer 1
6 3rd wheel gear 1
7Collar 1
8 Toothed lock washer 1
9 Toothed lock washer retainer 1
10 4th wheel gear 1
11 Collar 1
12 Washer 1
13 Circlip 1
14 6th wheel gear 1
15 Circlip 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
M
M
M
E
M
M
M
M
M
M
New
New
New
New
