12.2 Alarm Displays
12.2.4 Displaying the Alarm History
12-41
12.2.4
Displaying the Alarm History
The alarm history displays up to the last ten alarms that have occurred in the SERVOPACK.
Preparations
No preparations are required.
Applicable Tools
The following table lists the tools that you can use to display the alarm history and the applica-
ble tool functions.
Operating Procedure
Use the following procedure to display the alarm history.
1.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
2.
Select Display Alarm in the Menu Dialog Box.
The Alarm Display Dialog Box will be displayed.
3.
Click the Alarm History Tab.

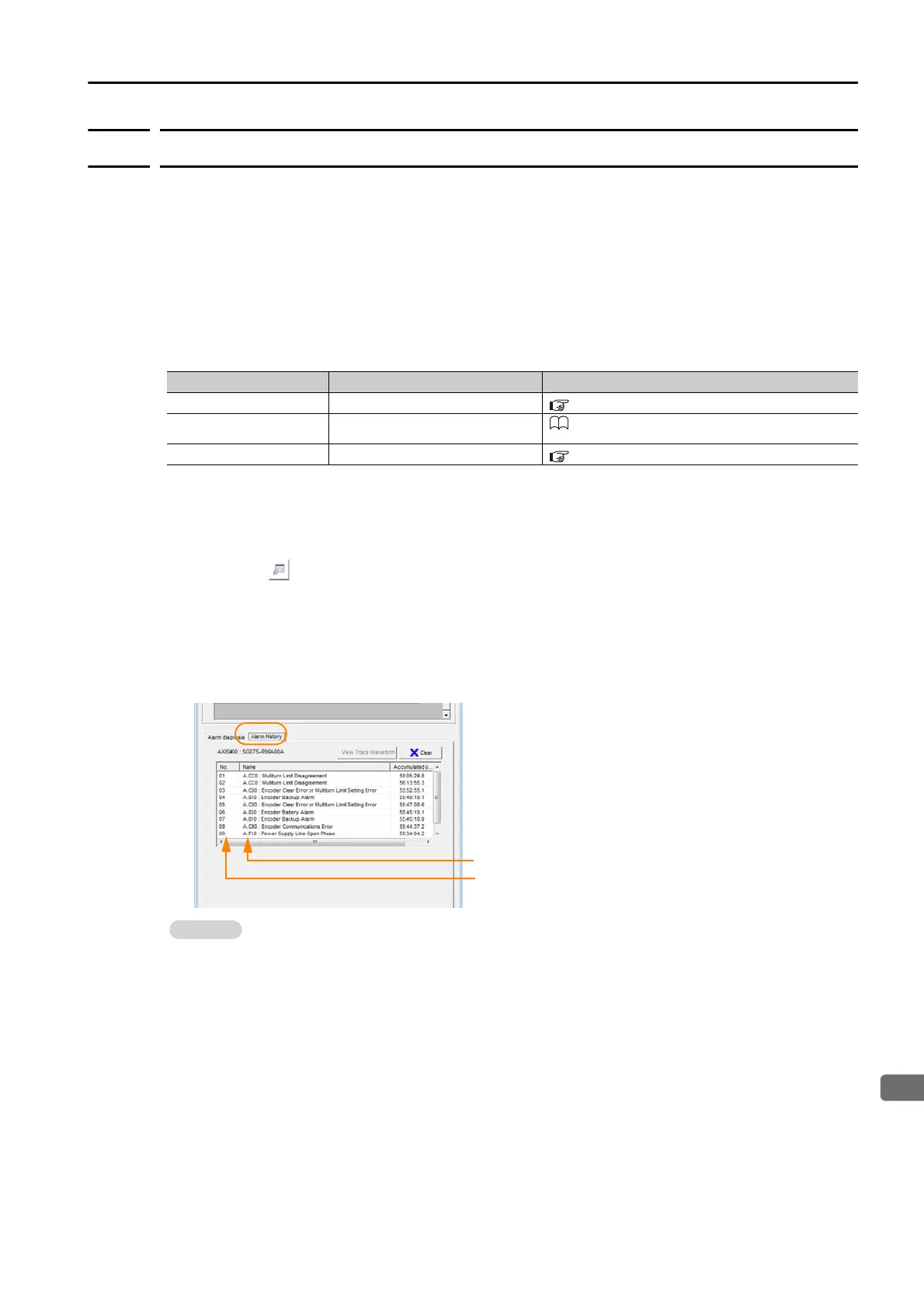

The following display will appear and you can check the alarms that occurred in the past.
This concludes the procedure to display the alarm history.
Tool Function Reference
Panel Operator Fn000
13.4.1
Display Alarm History (Fn000)
on page 13-12
Digital Operator Fn000
Σ
-7-Series Digital Operator Operating Manual
(Manual No.: SIEP S800001 33)
SigmaWin+ Alarm − Display Alarm
Operating Procedure
on page 12-41
1. If the same alarm occurs consecutively within one hour, it is not saved in the alarm history.
If it occurs after an hour or more, it is saved.
2. You can clear the alarm history by clicking the Clear Button. The alarm history is not
cleared when alarms are reset or when the SERVOPACK main circuit power is turned OFF.
Alarm number: Alarm name
Alarms in order of occurrence
(Older alarms have higher numbers.)
To Next Page
