13.1 Panel Operator
13.1.1 Panel Operator Key Names and Functions
13-3
13
Panel Displays and Panel Operator Procedures
13.1
Panel Operator
13.1.1
Panel Operator Key Names and Functions

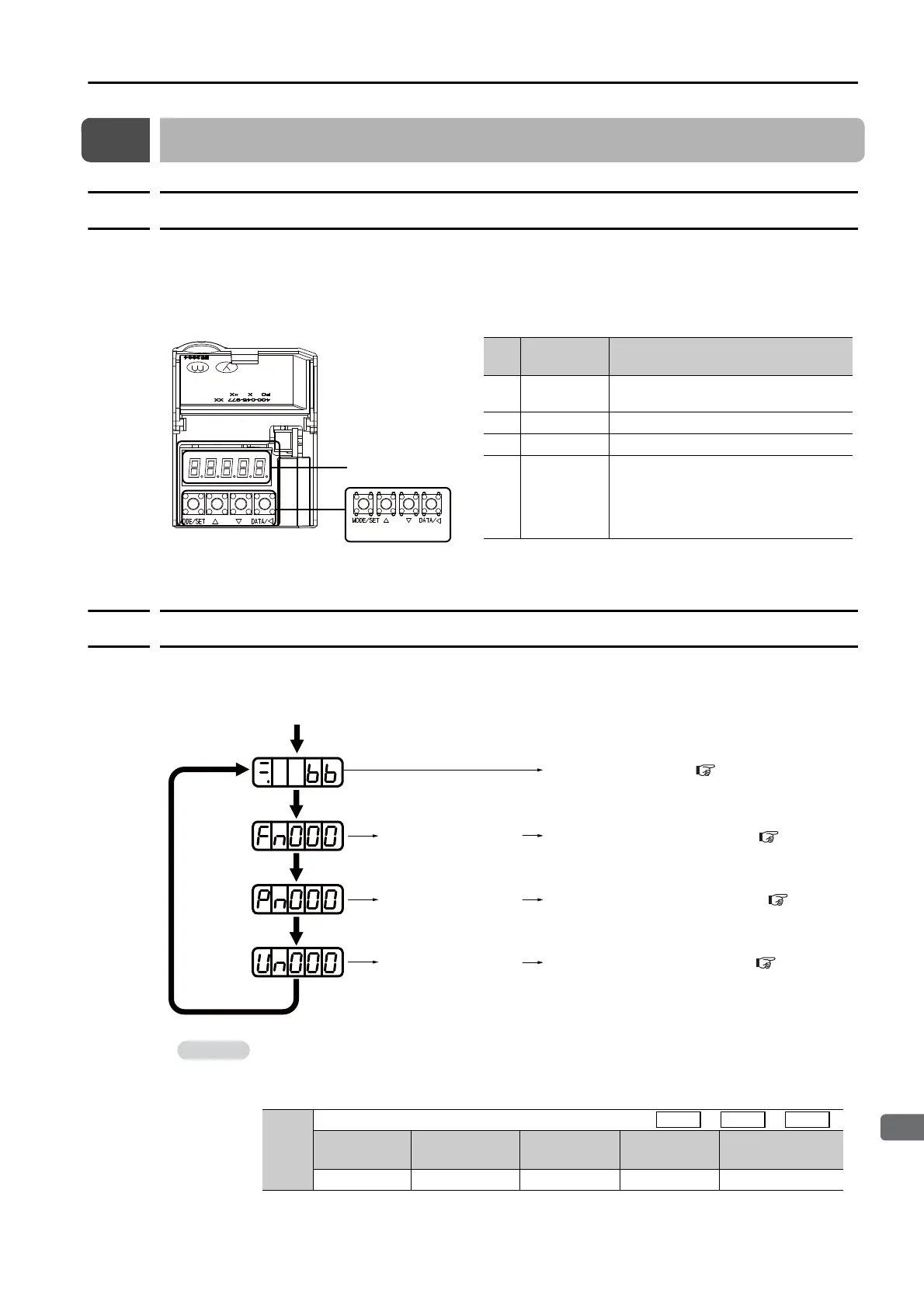

The Panel Operator consists of a panel display and Panel Operator keys.
You can use the Panel Operator to set parameters, display status, execute utility functions, and
monitor SERVOPACK operation.
The Panel Operator key names and functions are given below.
13.1.2
Changing Modes
Press the MODE/SET Key to change between the modes as shown below.
Refer to the reference pages for the operating procedures in each function mode.
c
d
e
f
Panel display
Panel Operator
Key
No.
Key Name Function
MODE/SET
Key
• Changes the display.
• Confirms settings.
UP Key Increases the setting.
DOWN Key Decreases the setting.
DATA/SHIFT
Key
• Displays the setting. To display the
setting, press the DATA/SHIFT Key
for approximately one second.
• Moves to the next digit on the left
when a digit is flashing.
You can change the setting of Pn52F (Monitor Display at Startup) to display the Monitor Dis-
play Mode instead of the Status Display Mode after the power supply is turned ON.
Set Pn52F to the Un number of the monitor display to display after the power supply is
turned ON.
If 0FFF is set (default setting), the SERVOPACK will enter the Status Display Mode after the
power supply is turned ON.
Power ON
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the DATA/SHIFT Key
for approx. 1 second.
Press the DATA/SHIFT Key
for approx. 1 second.
Press the DATA/SHIFT Key
for approx. 1 second.
Utility Function Mode (Fn) page 13-12
Status Display Mode page 13-4
Monitor Display Mode (Un) page 13-8
Parameter Setting Mode (Pn) page 13-6
Pn52F
Monitor Display at Startup
Setting
Range
Setting Unit
Default
Setting
When
Enabled
Classification
0000 to 0FFF – 0FFF Immediately Setup
To Next Page
