13.4 Utility Function (Fn) Operations on the Panel Operator
13.4.17 Display Software Version (Fn012)
13-25
13
Panel Displays and Panel Operator Procedures
13.4.17

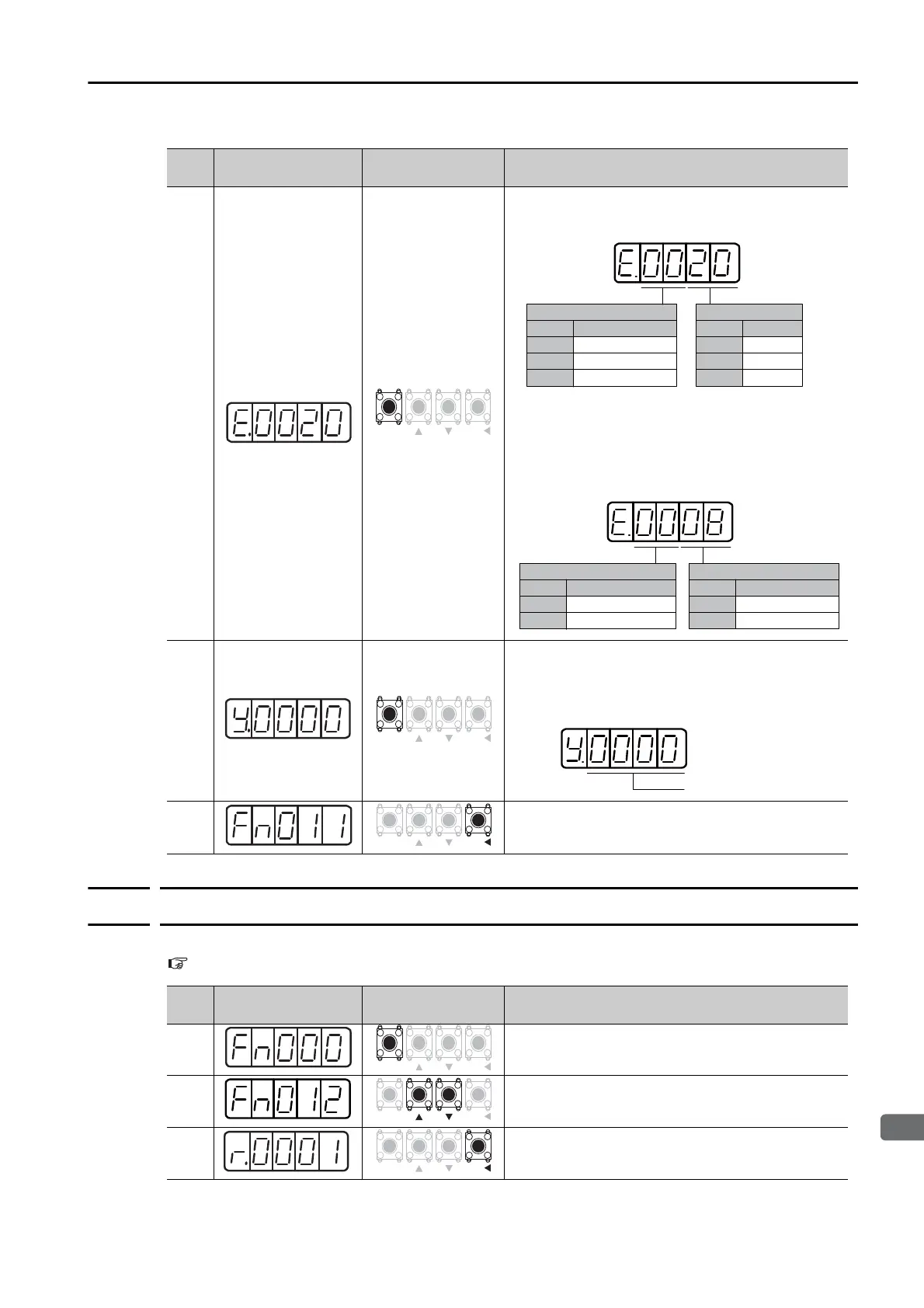

Display Software Version (Fn012)
Refer to the following section for information on this utility function other than the procedure.
9.1 Monitoring Product Information on page 9-2
5
Example
• Rotary Servomotors
Press the MODE/SET Key. The encoder type
and resolution codes will be displayed.
*A single-turn absolute encoder is used only for
a Direct Drive Servomotor.
• Linear Servomotors
Press the MODE/SET Key. The encoder type and
linear encoder scale pitch resolution codes will be
displayed.
6
Press the MODE/SET Key. The code for custom
SERVOPACK specifications will be displayed. y.0000
indicates a standard model. If anything other than
y.0000 is displayed, a customized SERVOPACK is
being used.
7
Press the DATA/SHIFT Key for approximately one
second to return the display to Fn011.
Continued from previous page.
Step
Panel Display after
Operation
Keys Operation
00
01
02
20
22
24
Encoder Type Encoder Resolution
No. Resolution
20 bits
22 bits
24 bits
No.
Type
Incremental
Single-turn absolute*
Multiturn absolute
256
4096
8
12
00
01
No. Type
Incremental
Absolute
Encoder Type
Linear Encoder Scale Pitch Resolution
No. Resolution
MODE
/
SET
DATA
/
Step
Panel Display after
Operation
Keys Operation
1
Press the MODE/SET Key to enter Utility Function
Mode.
2 Press the UP Key or DOWN Key to display Fn012.
3
Press the DATA/SHIFT Key for approximately one
second. The software version of the SERVOPACK will
be displayed.
Continued on next page.
MODE
/
SET
DATA
/
To Next Page
