2.3 External Dimensions
2.3.1 Front Cover Dimensions and Connector Specifications
2-19
2
Selecting a SERVOPACK
2.3 External Dimensions
2.3.1 Front Cover Dimensions and Connector Specifications
The front cover dimensions and panel connector section are the same for all models. Refer to
the following figures and table.
•

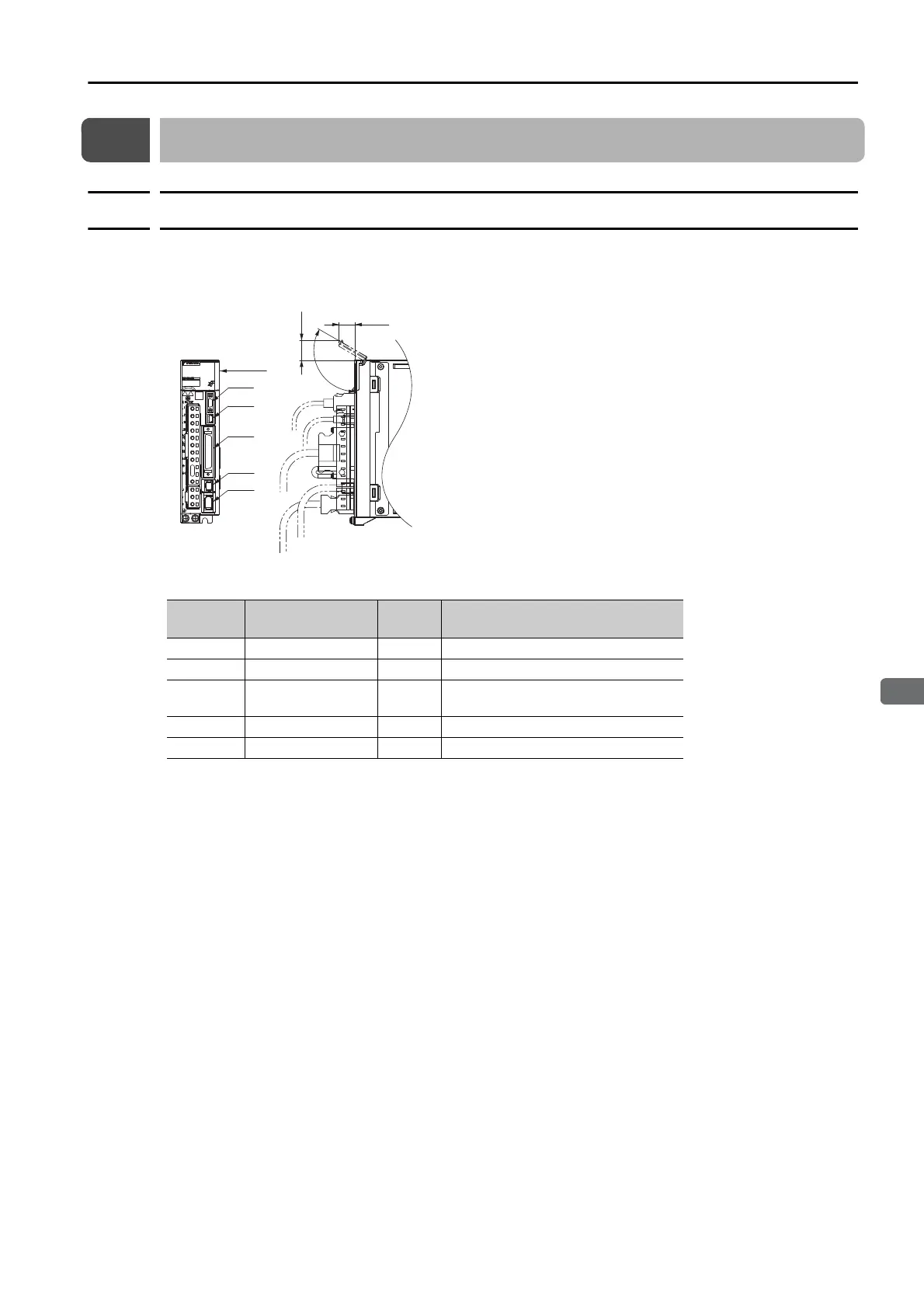

Front Cover Dimensions
•
Connector Specifications
Note: The above connectors or their equivalents are used for the SERVOPACKs.
Connec-
tor No.
Model
Number
of Pins
Manufacturer
CN1 10250-59A3MB 50 3M Japan Limited
CN2 3E106-0220KV 6 3M Japan Limited
CN3
HDR-EC14LFDTN-
SLD-PLUS
14 Honda Tsushin Kogyo Co., Ltd.
CN7 2172034-1 5 Tyco Electronics Japan G.K.
CN8 1981080-1 8 Tyco Electronics Japan G.K.
Front
cover
CN3
CN7
CN1
CN8
CN2
(16)
(120°)
(20)
