YASKAWA SGDM User Manual

4 SERVOPACK Specifications and Dimensional Drawings
4.5.3 Load Moment of Inertia
4-14
(4) Overhanging Loads
A servomotor may not be operated with an overhanging load, which tends to continuously rotate the motor. Fig.
4.1 shows a typical example of such a load.
• DO NOT use the servomotor with the Vertical Axis Motor Drive without Counterweight
• DO NOT use the servomotor with the Feeding Motor Drive

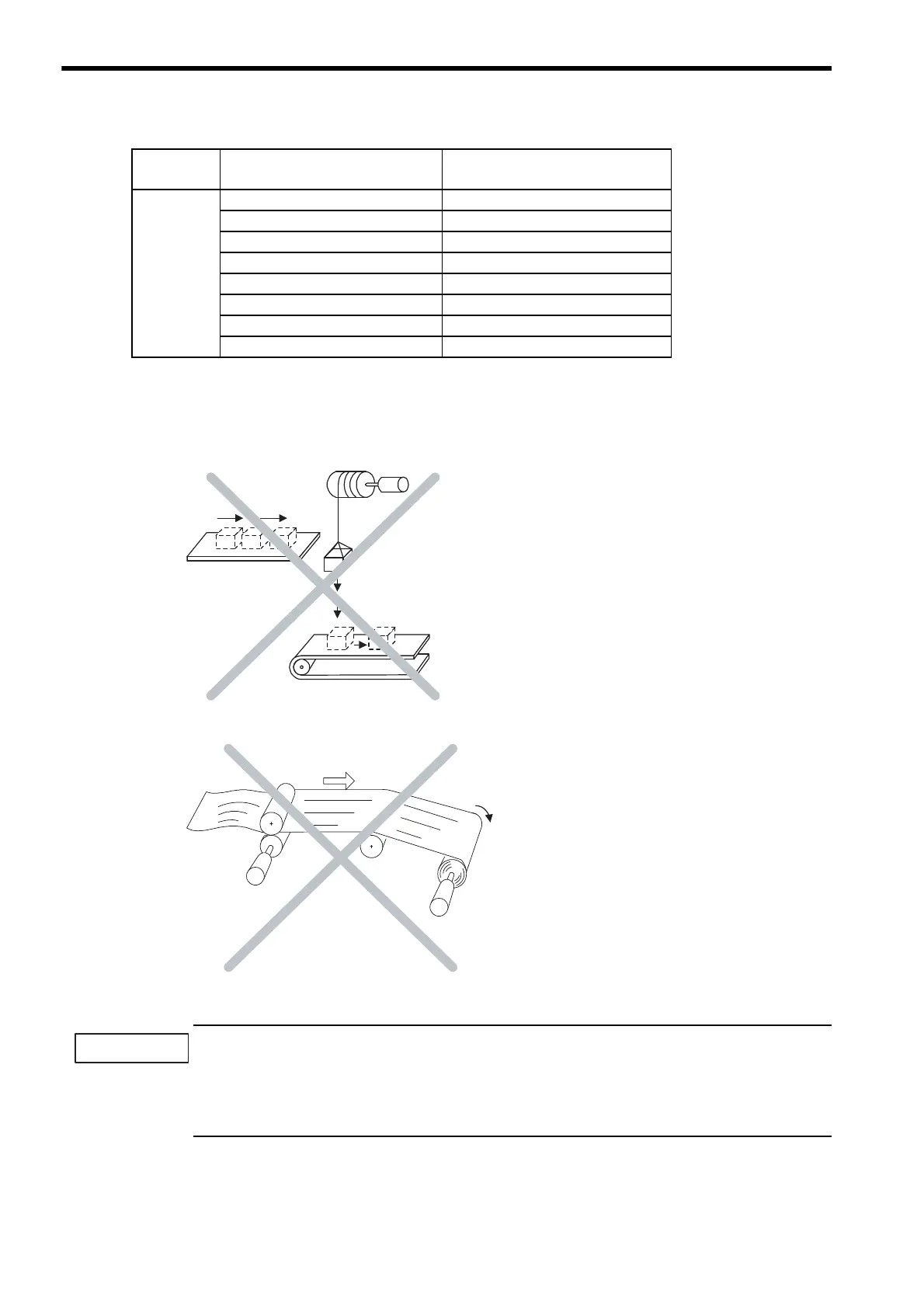

Fig 4.1 Examples of Overhanging Loads
• Never operate servomotors with an overhanging load. Doing so will cause the SERVOPACKs’ regenerative
brake to be applied continuously and the regenerative energy of the load may exceed the allowable range
causing damage to the SERVOPACK.
• The regenerative brake capacity of the SGDM SERVOPACKs is rated for short-term operation
approximately equivalent to the time it takes to decelerate to a stop.
Servomotor
Model
Rated Output (N
xm)
Allowable Load Moment of Inertia
(Rotor Moment of Inertia Ratio)
SGMCS
(200 V)
2.0, 4.0, 5.0, 7.0
×10
10.0
× 5
8.0, 14.0, 16.0, 17.0, 25.0, 35.0
× 3
45.0
× 3
80.0
× 3
110.0
× 3
150.0
× 3
200.0
× 3
Servomotor
Tension
Servomotor
Servomotor
Servomotor rotated repeatedly at a
constant speed to maintain the tension.
IMPORTANT

YASKAWA SGDM Specifications

General

Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Feedback	Incremental encoder, Absolute encoder
Protection Features	Overcurrent, Overvoltage, Overload, Overheat
Ambient Temperature	0°C to 55°C
Storage Temperature	-20 to +85°C (-4 to 185°F)
Vibration	5.9 m/s2 (0.6 G) at 10 to 55 Hz
