YASKAWA SIGMA-7 Series User Manual

3.4 Position Correction Table Settings
3.4.3 Setting Method with the SigmaWin+
3-10

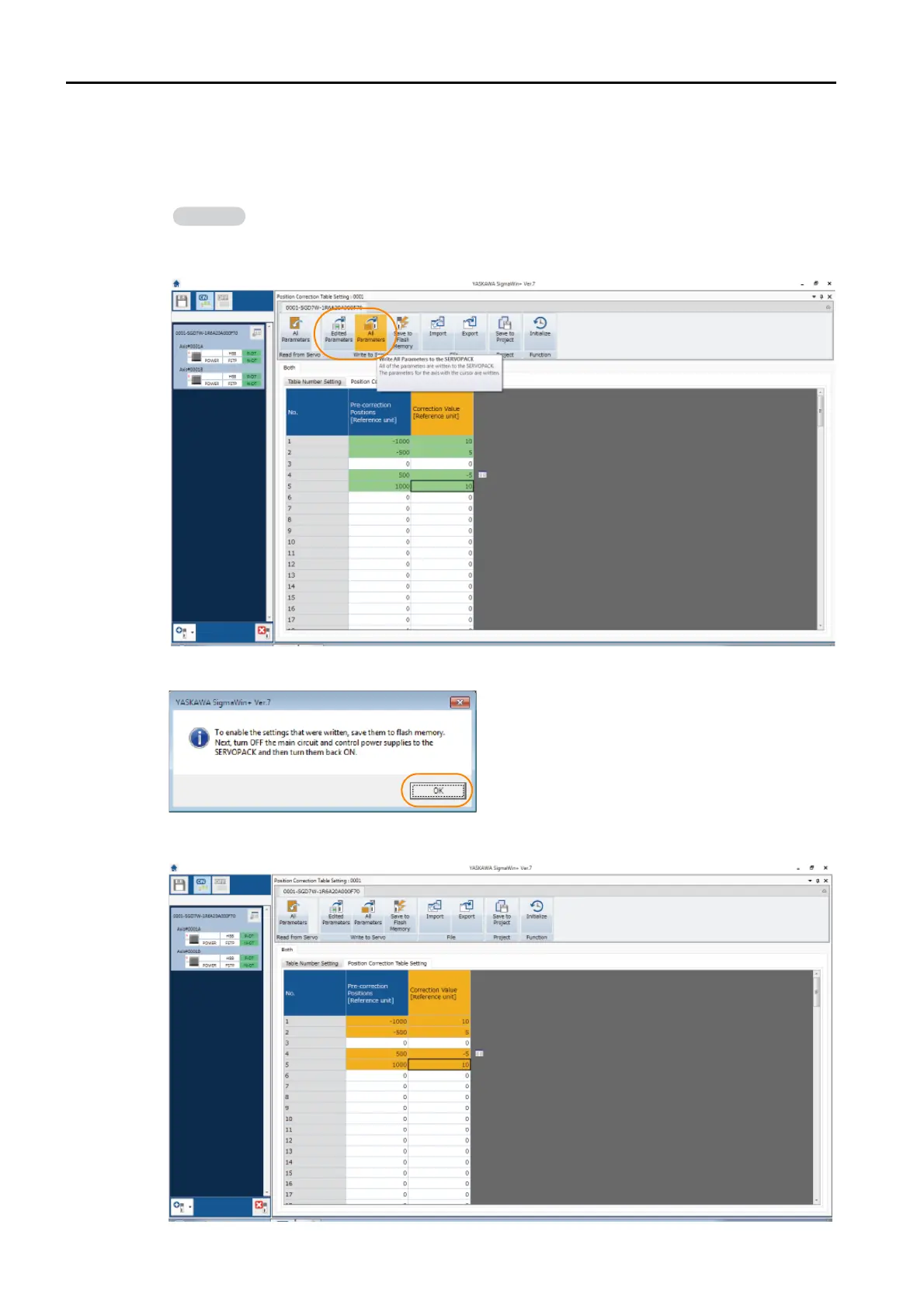

5.
To write only the parts of the Position Correction Table that were edited to the SERVO-
PACK, click Edited Parameters in the Write to Servo Group.
To write the entire Position Correction Table to the SERVOPACK, click All Parameters in
the Write to Servo Group.
6. Click the OK Button.
The created Position Correction Table was written to the volatile memory in the SERVOPACK.
The background of the edited parameter cell will change to orange.
Parameter will be used in the dialog box, but parameters are not written to the SERVO-
PACK.
The Position Correction Table is written to the SERVOPACK.
Information

YASKAWA SIGMA-7 Series Specifications

General

Encoder Resolution	24-bit absolute encoder
Pollution Degree	2
Cooling Method	Natural cooling or forced air cooling
Control Method	Vector control
Communication Protocols	EtherCAT, MECHATROLINK-III
Input Voltage	AC 200 V, AC 400 V
Rated Output	Varies by model
Safety Function	STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SLS (Safely Limited Speed), SBC (Safe Brake Control)
Power Supply Voltage	AC 200 V, AC 400 V
Rated Output Current	Varies by model
Protection Functions	Overload, overvoltage, undervoltage, overheat, short circuit
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 65°C
Vibration Resistance	5.9 m/s² at 10 Hz to 55 Hz
Ambient Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Installation	Panel mounted
