6-46
IM AQ6370D-01EN
Explanation
Noise Masking
HRZN

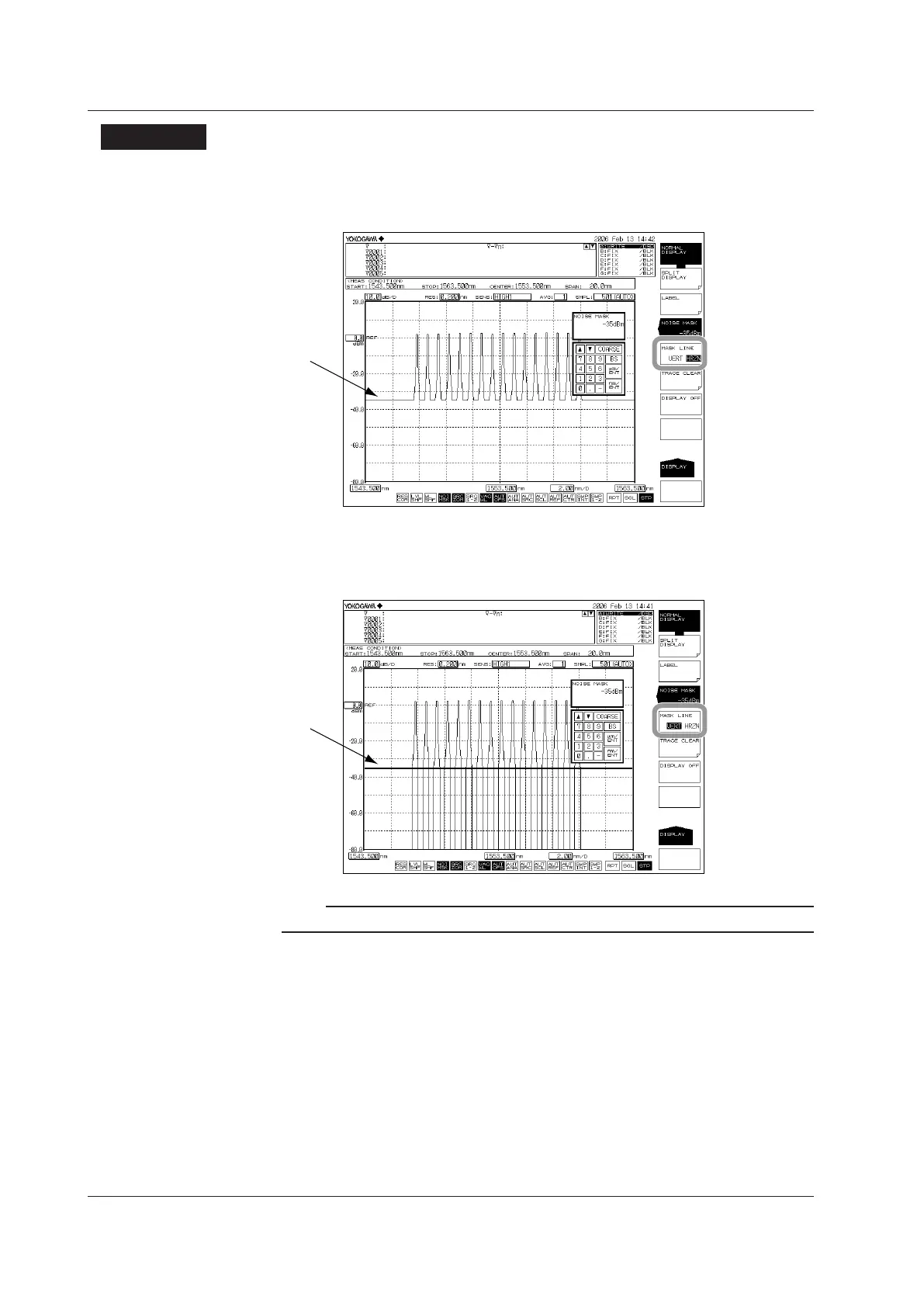

Displays the waveform with level values at or below the mask value as the mask value.
Mask line
VERT
Displays the waveform with level values at or below the mask value as the display lower
limit value (–210 dBm).
Mask line
Note
The noise mask function is disabled when the vertical axis is linear.
6.11 Noise Mask
