7-5
IM AQ6370D-01EN
Analysis
7
When changing the analysis parameters
4.
Continuing on from step 3, press the PARAMETER SETTING soft key. The notch
analysis parameter setting screen is displayed.
5.
Move the cursor with the arrow keys or soft keys, and enter a setting value with
the numeric key pad. To switch PEAK and BOTTOM, press the SELECT soft key.
6.
Press the CLOSE WINDOW soft key. The analysis parameter setting screen
closes, and the soft key menu returns to the previous stage.
7.
Press the ANALYSIS EXECUTE soft key. Analysis is performed according to the
changed parameters, and the results are displayed in the data area.

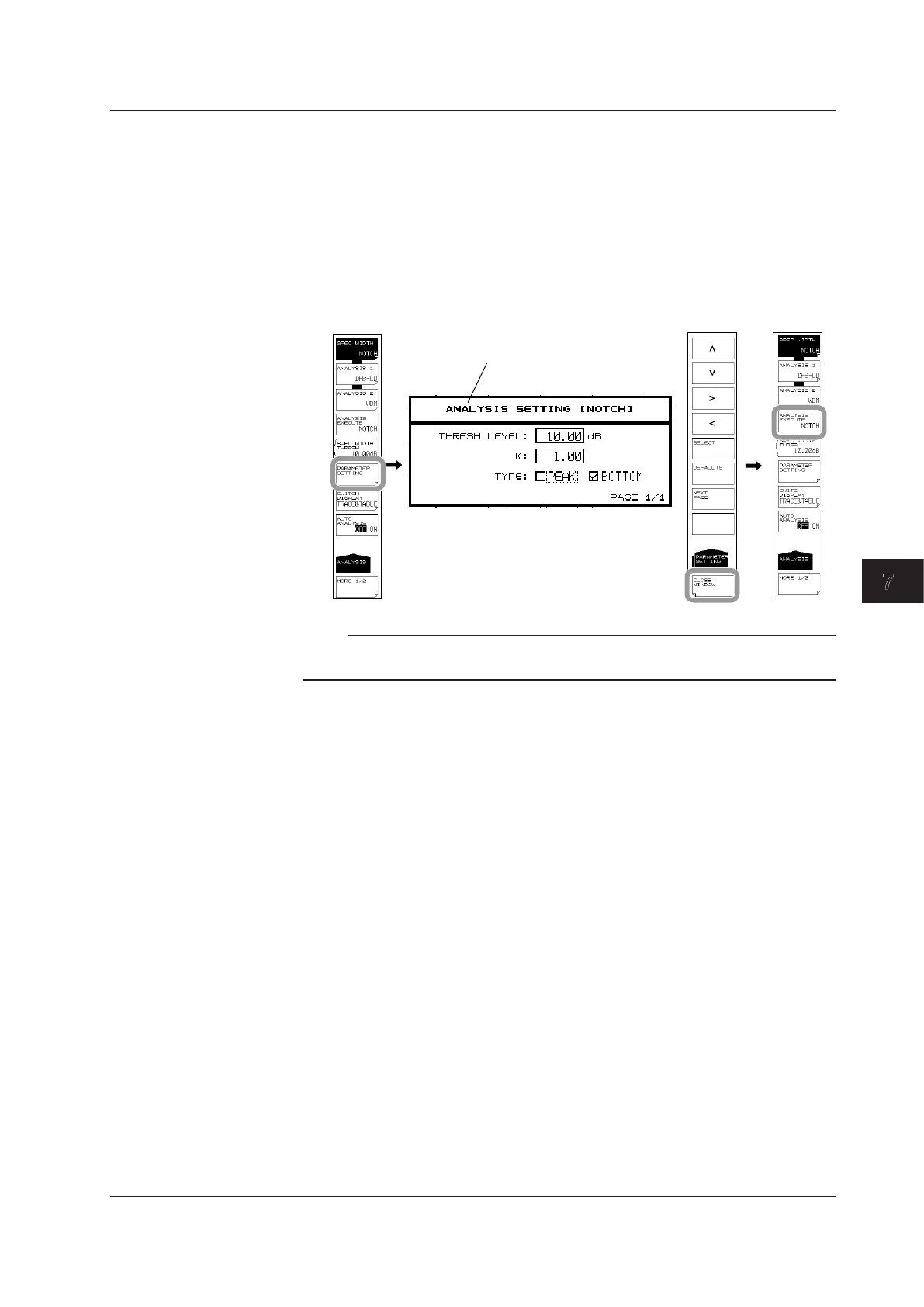

Analysis parameter setting screen
Note
For details about the notch width analysis algorithms and parameters, see appendix 2, “Data
Calculation Algorithms for Spectrum Widths.”
