7-27
IM AQ6370D-01EN
Analysis
7

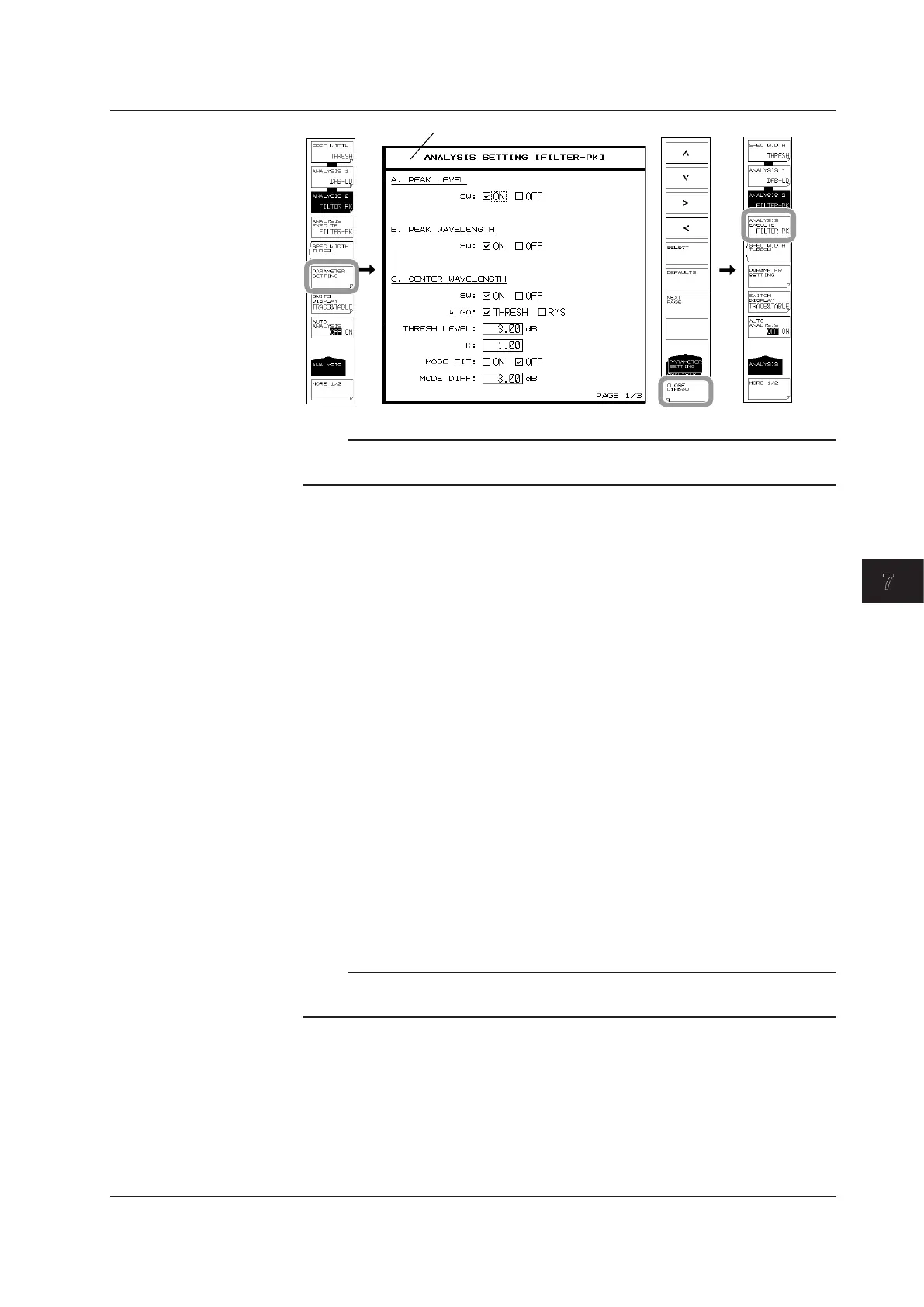

Analysis parameter setting screen
Note
See appendix 6, “Optical Filter Analysis Function” for a description of the optical filter analysis
algorithms and parameters.
Filter Bottom Analysis
This is used if the optical filter is of a notch type rather than a pass band type.
1.
Press ANALYSIS. The soft key menu for analyzing measured waveforms
appears.
2.
Press the ANALYSIS 2 soft key. The analysis function selection menu is
displayed.
3.
Press the FILTER-BTM soft key. Analysis is performed, and the results are
displayed in the data area.
When changing the analysis parameters
4.
Continuing on from step 3, press the PARAMETER SETTING soft key. The
FILTER-BTM analysis parameter setting screen is displayed. If a setting screen
has multiple pages, press the NEXT PAGE soft key to display the next screen.
5.
Move the cursor with the arrow keys or soft keys, and enter a setting value with
the numeric key pad. To select a check box, align the cursor then press the
SELECT soft key.
6.
Press the CLOSE WINDOW soft key. The FILTER-BTM analysis parameter
setting screen closes, and the soft key menu returns to the previous stage.
7.
Press the ANALYSIS EXECUTE soft key. Analysis is performed according to the
changed parameters, and the results are displayed in a list.
Note
See appendix 6, “Optical Filter Analysis Function” for a description of the optical filter analysis
algorithms and parameters.
7.9 Optical Filter Characteristics Measurement
