Switching to RELATIVE Mode
1.
Press ADVANCE followed by the TEMPLATE soft key.
2.

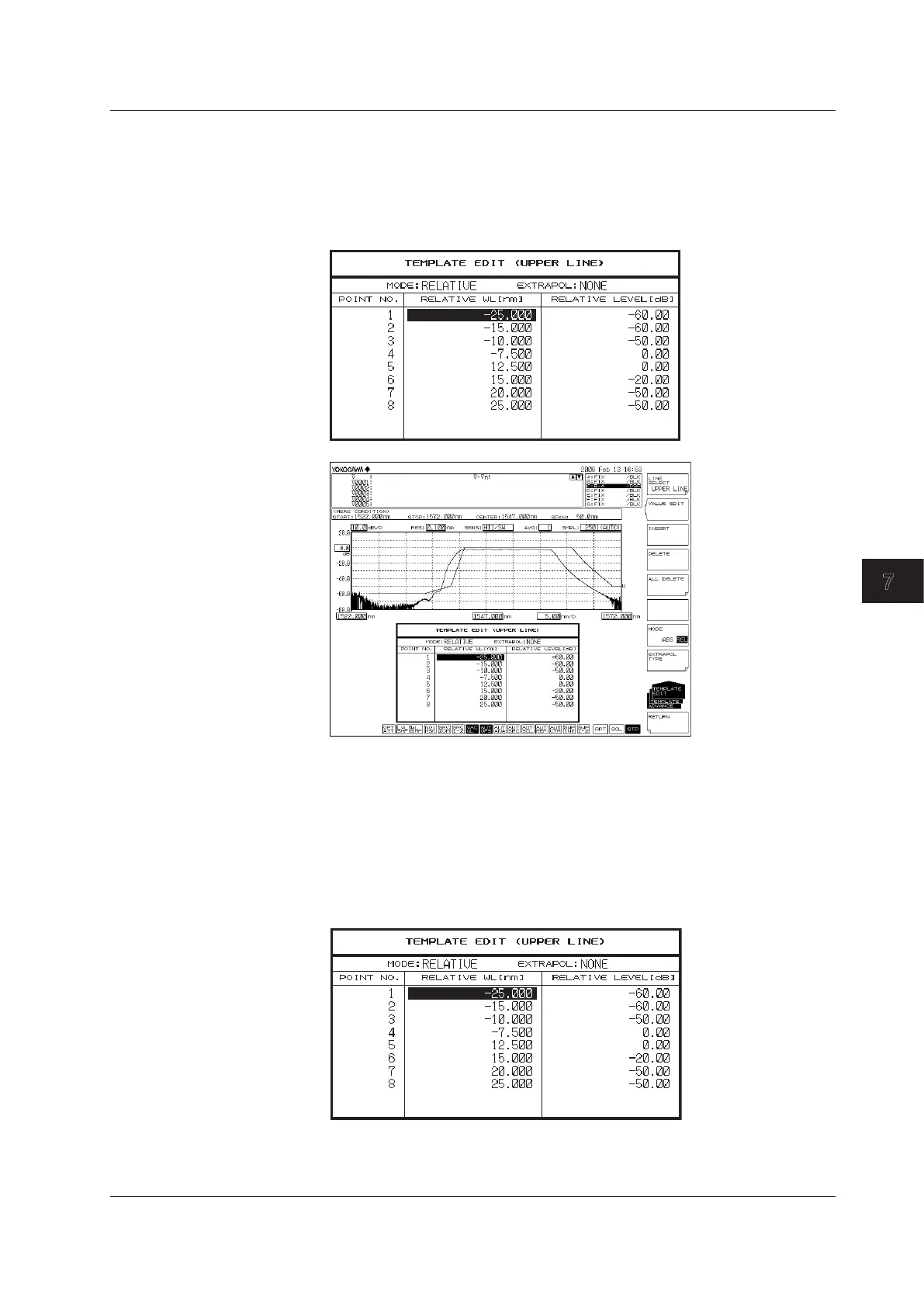

Press the TEMPLATE EDIT soft key. The edit menu is displayed.
3.
Press the MODE ABS/REL soft key to select REL. The instrument enters Relative
mode.
Changing ZOOM CENTER WL and REF LEVEL
• ZOOM CENTER WL: 1544.000 nm
• REF LEVEL: 10.00 dBm
4.
Press ZOOM, followed by the ZOOM CENTER WL soft key.
5.
Enter 1544.000 using the rotary knob or arrow keys, then press nm/ENTER.
6.
Press LEVEL, followed by the REF LEVEL soft key.
7.
Enter 10.00 using the rotary knob or arrow keys, then press nm/ENTER.
The template relative value does not change after editing.
