Template Data Format
The file extension for template data file names is always .CSV.
The template data format is shown below. Here, all capital letters are used. As many as
50,001 template data points can be defined.
Save the template data created on an external PC to a USB storage device for loading in
the instrument.

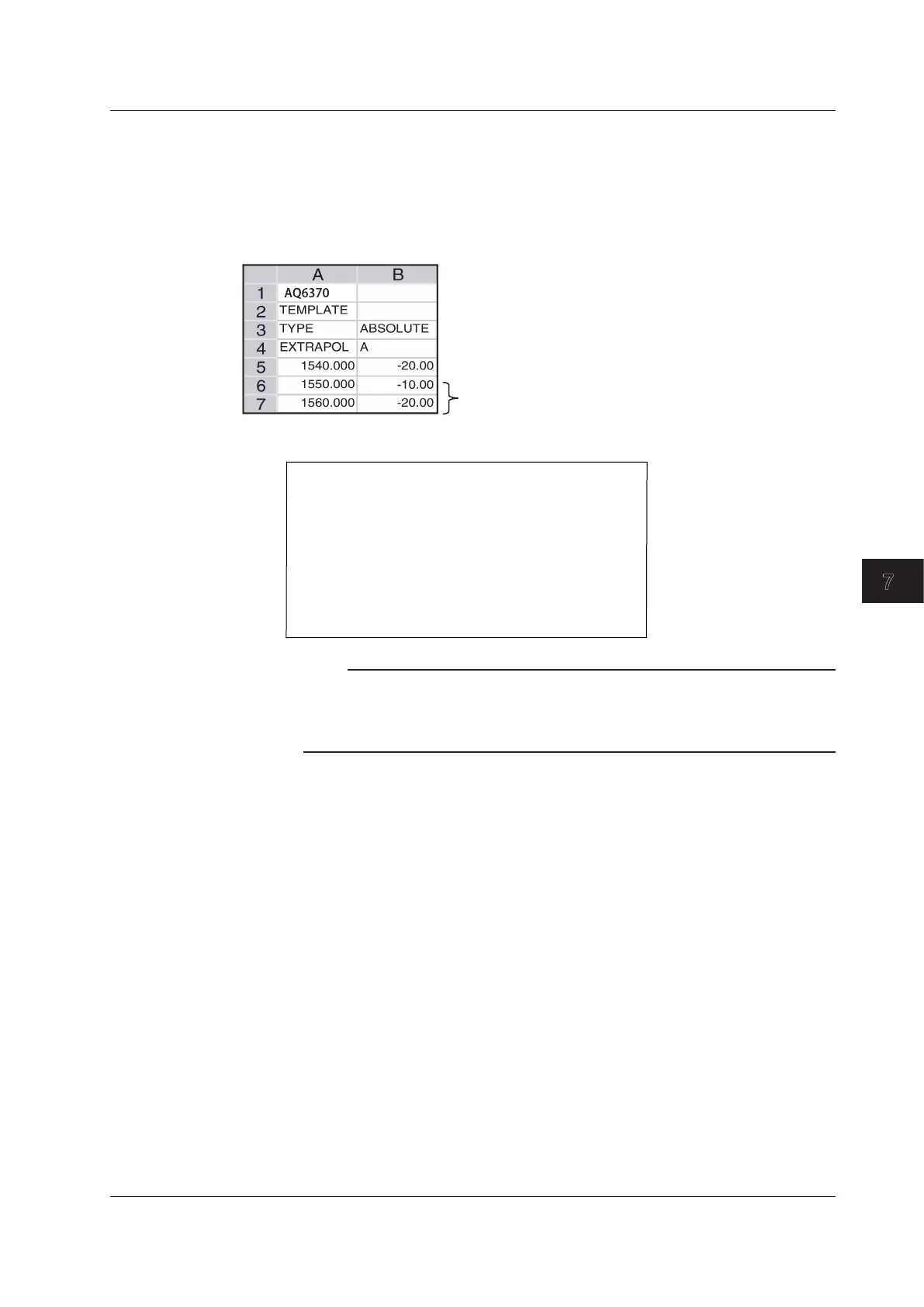

<- Header for the AQ6370D
<- Header indicating template data
<- Header indicating the template type (ABSOLUTE or RELATIVE)
<- Extrapolation type (A or B or None)
<- Wavelength and level data (1550.123, -20.00)
Up to 50001 points of data sorted in order starting from the
data of the smallest wavelength
D
.CSV file containing the above template data
AQ6370D,
TEMPLATE,
TYPE,ABSOLUTE
EXTRAPOL,A
1540.000,-20.00
1550.000,-10.00
1560.000,-20.00
Note
• Only English capital letters and numbers are supported for all template data.
• Like normal templates, template data can contain up to 50001 points.
• The .CSV extension must be used when saving.
• If the format is not unified, the instrument will not be able to load the template data.
