8-24
IM AQ6370D-01EN

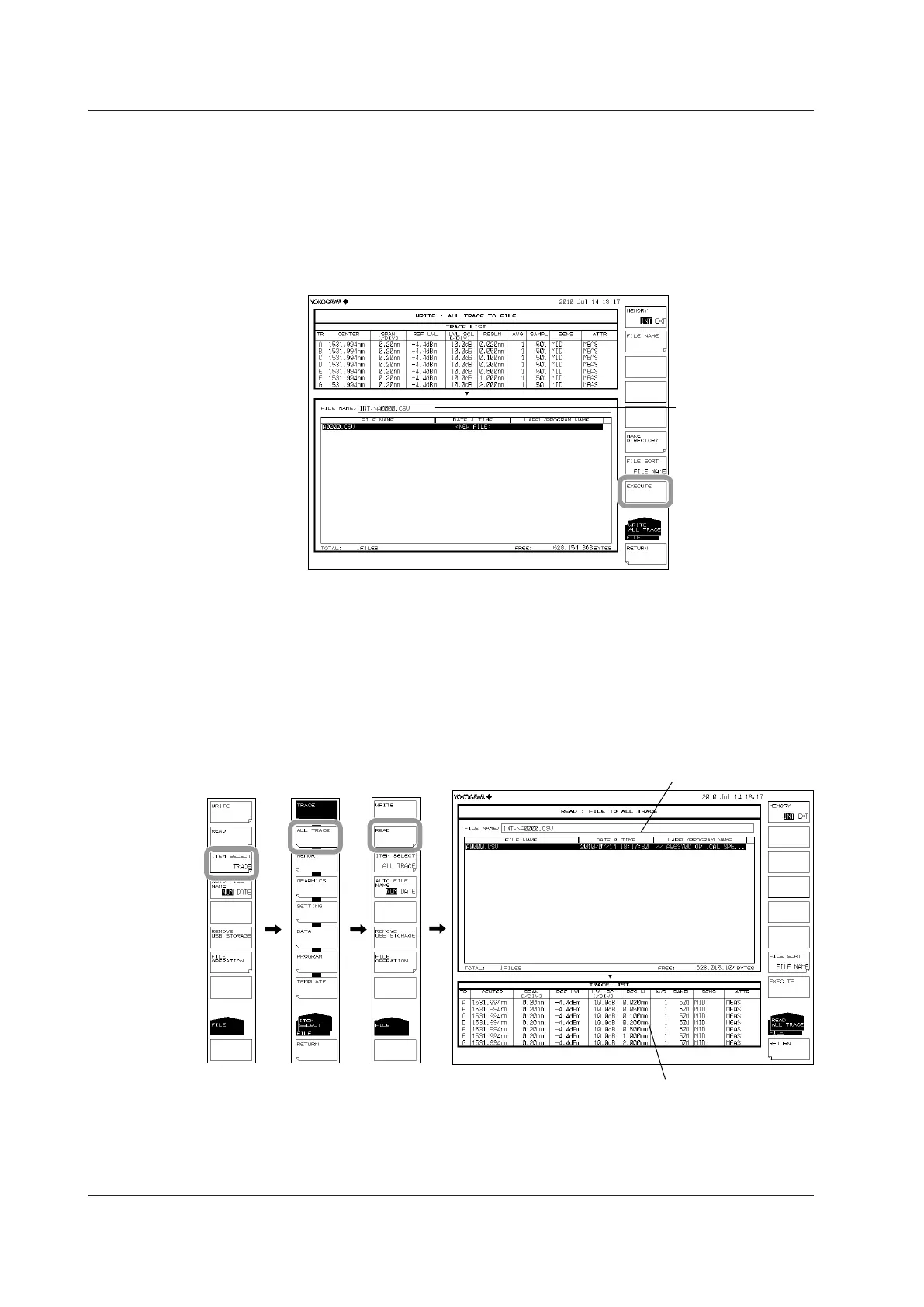

Executing the Save
10.
To overwrite previously saved files, place the cursor on the existing file name.
11.
Press the EXECUTE soft key. Saving executes.
If you press the RETURN soft key, saving is cancelled. The screen returns to the
previous menu.
12.
When overwriting during a save, a confirmation message appears. Press the YES
soft key. To cancel saving (overwriting), press the NO soft key.
Loading all trace data
Setting the file type of files to load to ALL TRACE
1.
Press the FILE key. The soft key menu for data saving and loading appears.
2.
Press the ITEM SELECT soft key. A menu for selecting files to save appears.
3.
Press the TRACE ALL soft key. TRACE becomes selected, and the screen
returns to the previous menu.
4.
Press the READ soft key. The file list is displayed on screen.
8.4 Saving/Loading Displayed Data(All Trace)
To Next Page
