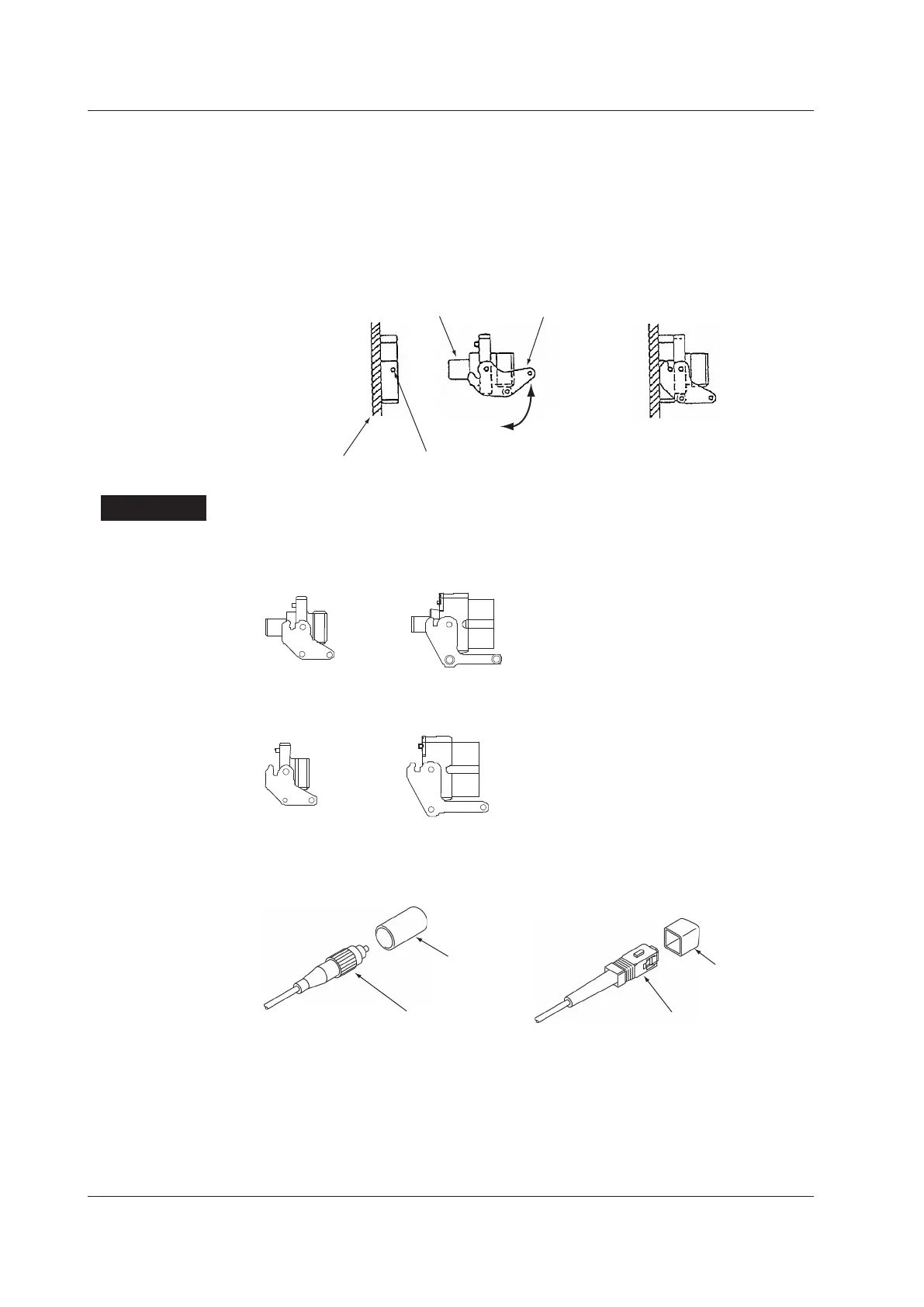

Removal Procedure
1.
Confirm that the power is OFF.
2.
Turn the connector adapter’s lock lever up. The lock lever’s lock is released.
3.
Pull the connector adapter all the way out.
4.
Close the optical connector cover at the front of the instrument.
Panel
Lock lever
Ferrule
Latch pin
Optical input
section
Connector
adapter
Attached
Explanation
Types of Connector Adapter
The connector adapter for internal reference light output (AQ9441) comes in the following
two types.
FC type
SC type
The optical input connector adapter (AQ9447) comes in the following two types.
SC type
FC type
Optical Connectors Types
The instrument can use FC or SC type optical connectors.
FC type optical
connector
Cap
SC type optical
connector
Cap
3.2 Attaching the Connector Adapter
