Cleaning the Optical Output
WARNING
The instrument has a built-in reference light source for wavelength calibration, and
infrared light is always being output from the optical output connector. Never look
into the optical output connector. Infrared light entering the eyes can cause severe
injury and loss of vision.
Turn the power OFF, then remove the connector adapter from the instrument.
Remove the connector adapter, then use a swab dipped into a small quantity of undiluted
alcohol to clean the ferrule end of the optical output section. Be sure to use a new swab
each time.
Remove the connector adapter from the unit. For removal, refer to section 3.2, “Attaching
the Connector Adapter.” Use a swab dipped into a small quantity of undiluted alcohol to
clean the ferrule end of the optical output section.
After the cleaning is finished, connect the connector adapter to the instrument.

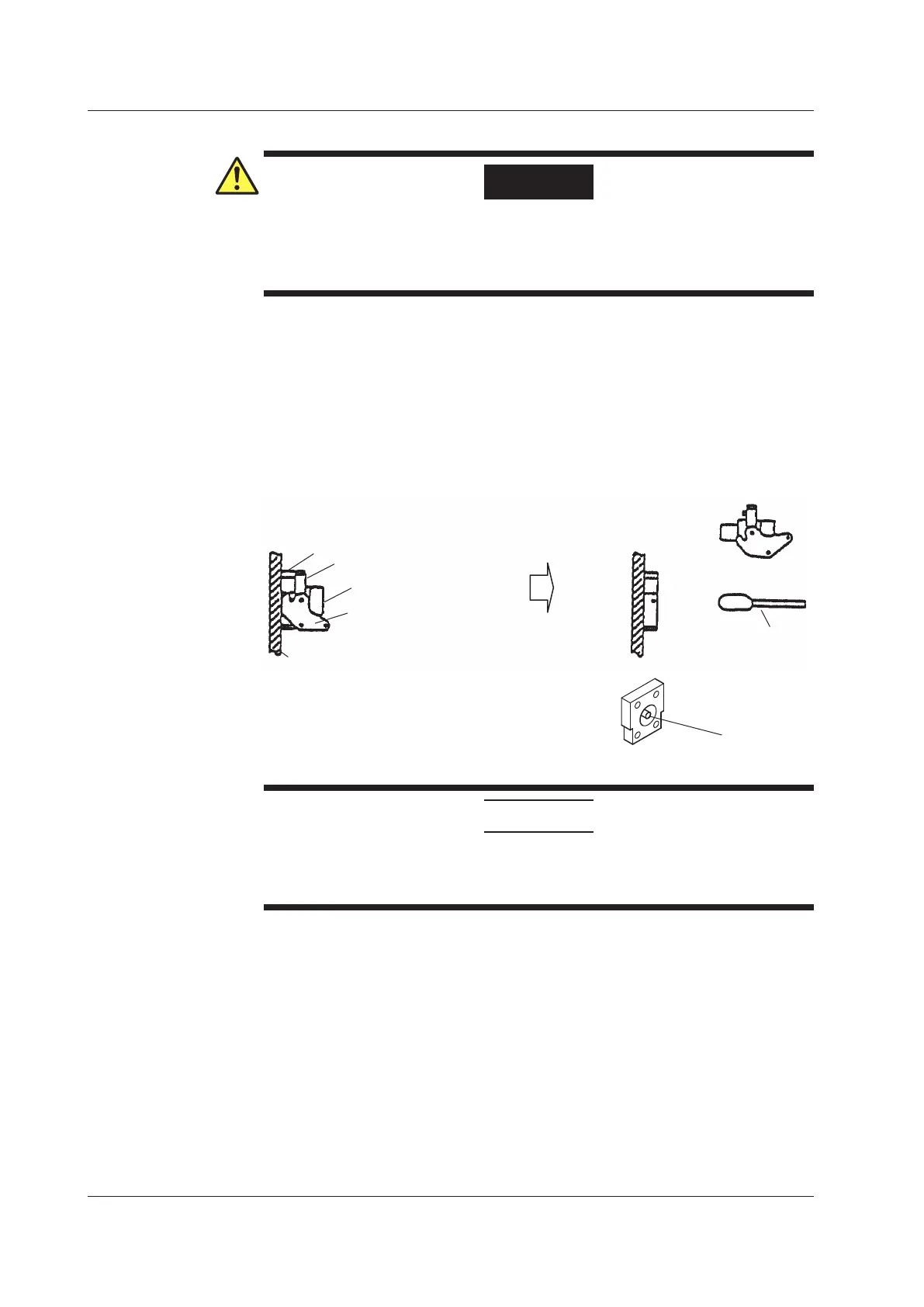

Swab
Optical output
Connector adapter
Optical connector
Instrument panel
Lock lever
CAUTION
• When attaching or removing a connector adapter, be careful not to damage the
ferrule edge or adapter.
• Wiping with a soiled swab can damage the optical outputs.
