RELATIVE

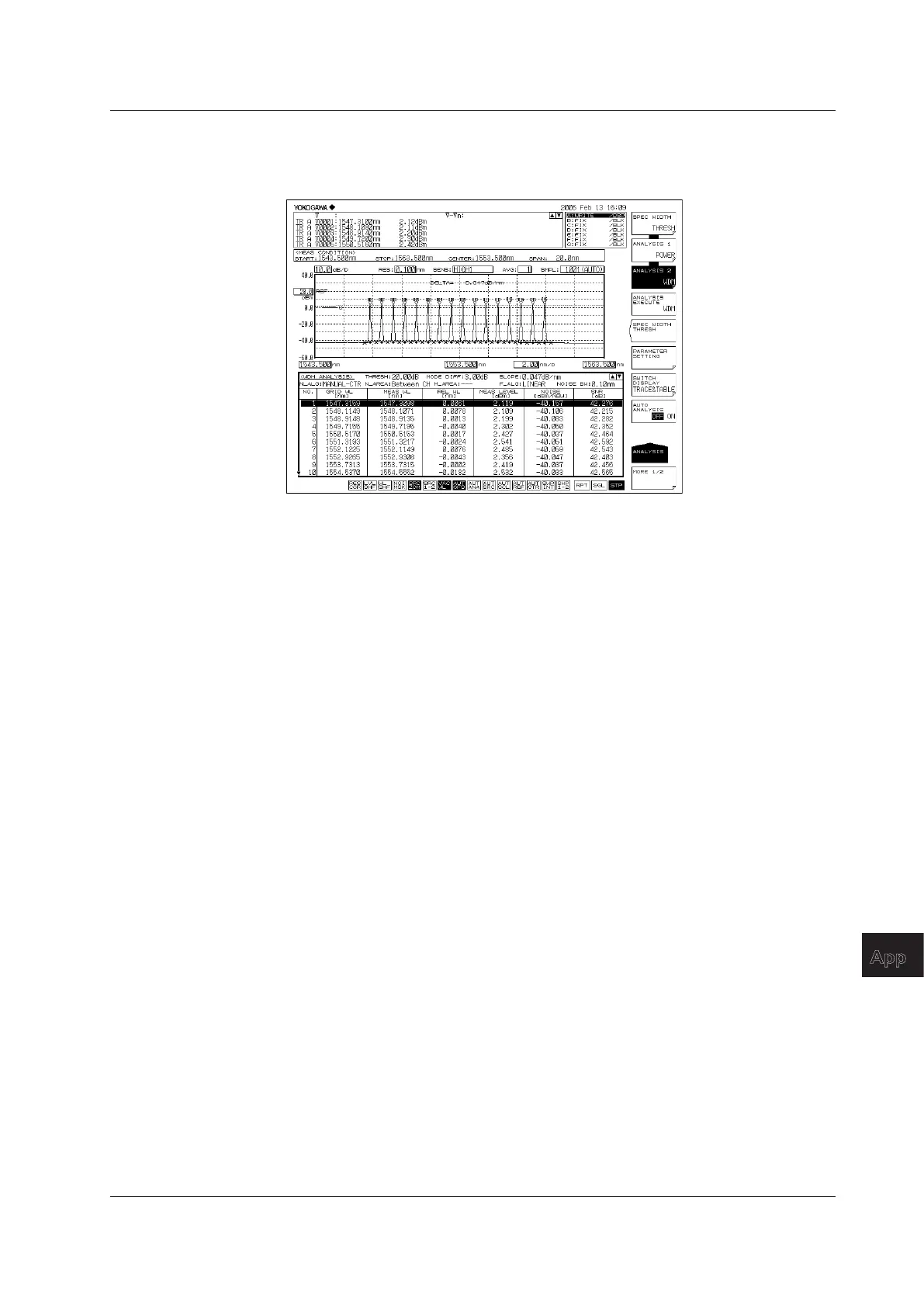

Of the analytical results, wavelength values are displayed as relative values to the values
in the grid table.
Explanations of display items
NO: Channel number
GRID WL: GRID wavelength of the channel
MEAS WL: Center wavelength of the channel
REL WL: Relative wavelength to the GRID wavelengths of the channel
MEAS LVL: Level of the channel (peak level – noise level)
NOISE: Noise level of the channel
SNR: SNR value of the channel
Appendix 4 Detailed Explanations of WDM Analysis Function
