YOKOGAWA AQ6370D User Manual

3-13
IM AQ6370D-01EN
Preparing for Measurement
1
2
3
4
5
6
7
8
9
10
11
App
Index
Connecting Optical Fibers
5.
Open the instrument’s optical input connector cover.
6.
Connect the optical fiber’s optical connector to the optical input connector on the
instrument.
Setting the optical fiber connector
7.
Press SETUP. The soft key menu is displayed.
8.
Press the MORE 1/2 soft key.
9.
Press the FIBER CONNECTOR soft key. Pressing the key repeatedly toggles
between NORM and ANGLED. Set ANGLED if the optical fiber under test is APC
(angle lap PC). Otherwise, set NORMAL.
Note
• If you set FIBER CONNECTOR to ANGLED, is displayed in the
measurement conditions area.
• The instrument's measurement accuracy specification is for when FIBER CONNECTOR is
set to NORM
Connecting the DUT (Light Source)
10.
Clean the top of the optical connector on the other end of the optical fiber with a
fiber cleaner.
11.
Connect the optical connector on the other end of the optical fiber to the optical
connector on the DUT.

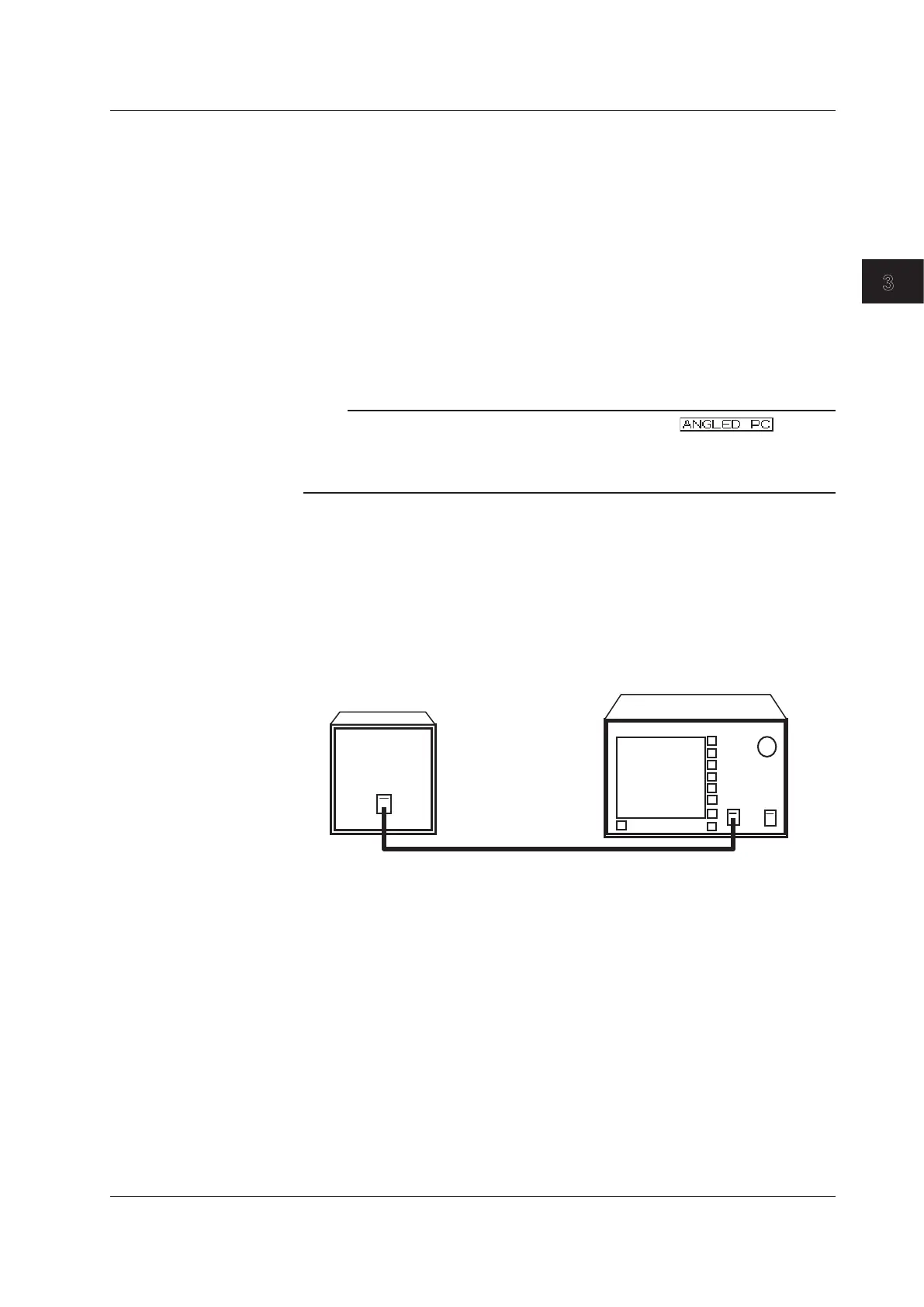

Measuring System
AQ6370D
Light source
Optical fiber
3.5 Connecting the DUT
