SYSTEM(MORE 3/4, MORE 4/4)
1
2
3
4
6
7
8
10
11
12
13
14
14-1
14-2
9
10-1
10-2
12-1
12-2
14-3
5
15
16
1 UNCAL, warning display ON/OFF (9.6)
2 Buzzer settings (9.6)
3 Setting the number of level data digits (4.4)
4 Semitransparent display ON/OFF (4.4)
5 Language setting (9.6)
6 Date/time setting (4.5)
7 Setting the display color (4.4)
8 Locking the operation key and changing the password for operation lock
(9.5 AQ6370D R02.01 or later)
9 Removing the USB storage medium (3.3, 8.1)
10 System information display (9.7)
10-1 Displaying the serial number, Ethernet port MAC address, and other items
(9.7)
10-2 Displaying, clearing, and saving the system log to USB memory (9.7)
11 Setting the resolution correct mode (9.5 AQ6370D R02.01 or later)
12 Performs rms resolution calibration (3.8)
12-1 Executes calibration (3.8)
12-2 Clears the calibration value (3.8)
13 Initializes the data (9.2)
14 Displaying the software version and upgrading (10.1)
14-1 Displaying the patch list (10.1)
14-2 Upgrading the software (10.1)
15 Service menu (9.6)
16 System shutdown (3.4)

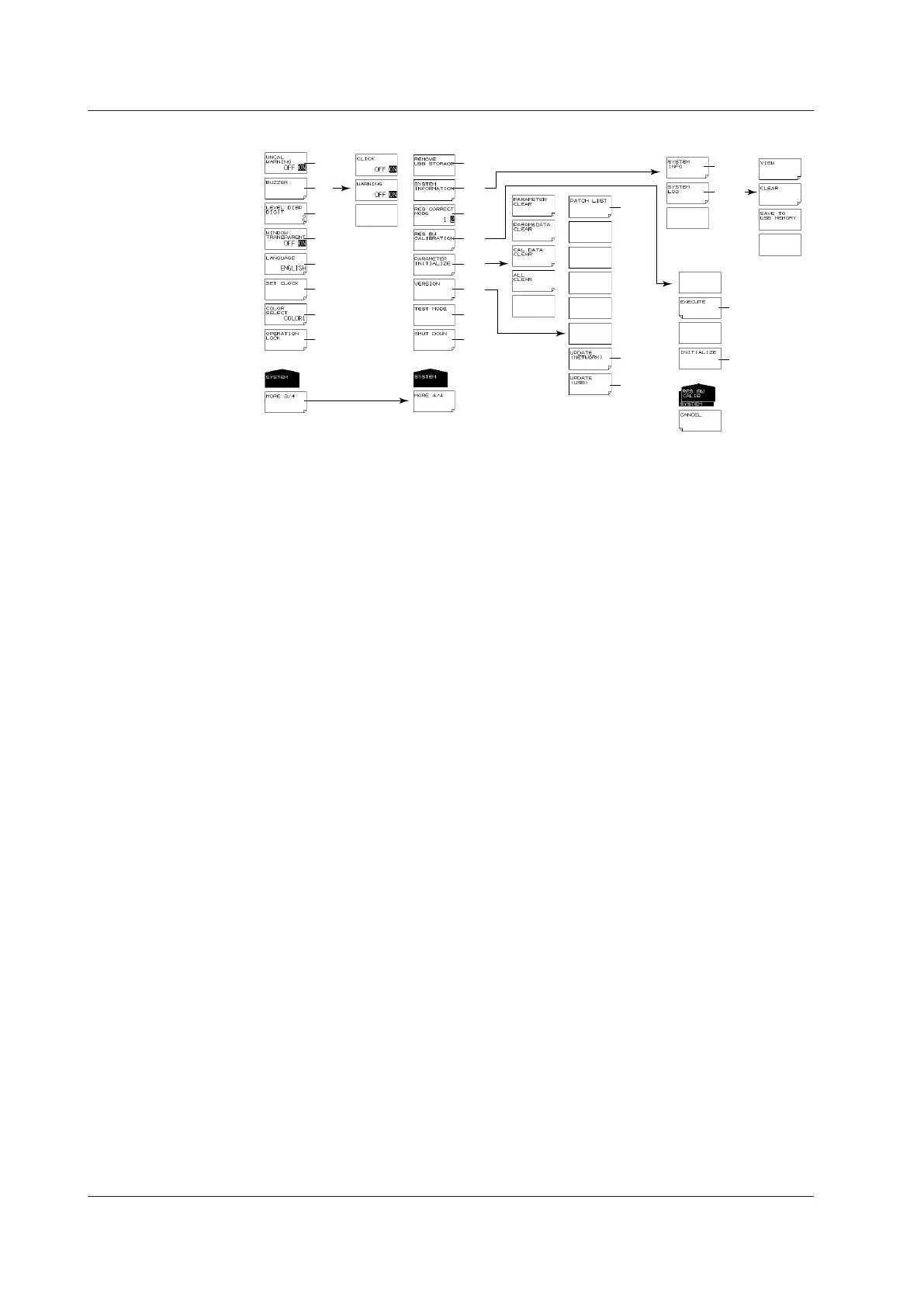

Appendix 7 Soft Key Tree Diagram
