Measurement
5
Setting Up the Vertical Axis
Setting to Log Scale Display
1.

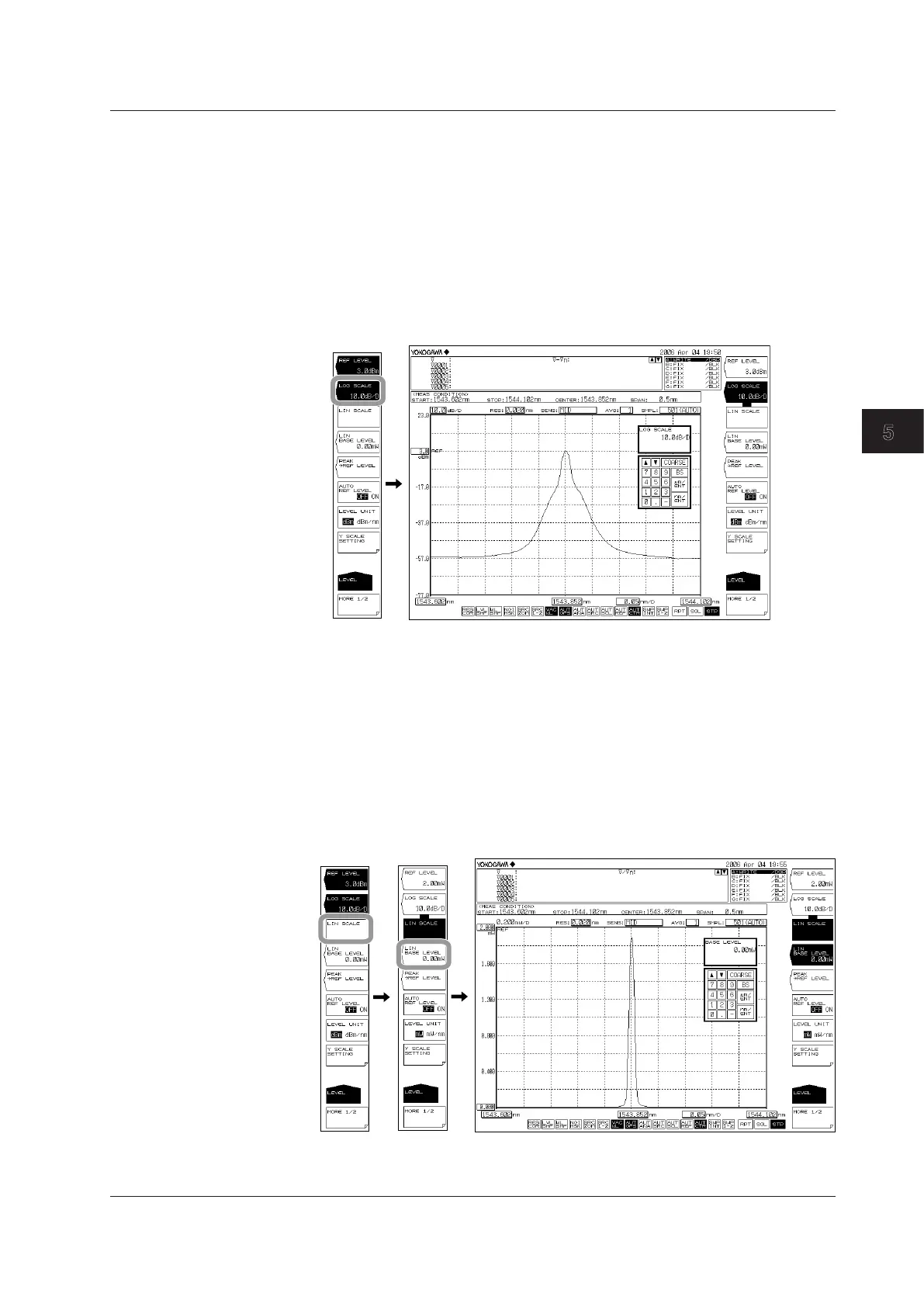

Press LEVEL. The soft key menu for vertical axis settings appears along with the
reference level setting screen.
2.
Press the LOG SCALE soft key. The vertical axis is displayed with the currently
specified log scale values. At the same time, the log scale value setting screen is
displayed.
3.
Enter a log scale value using the rotary knob, arrow keys, or numeric key pad.
4.
Press ENTER.
Setting to Linear Scale Display
1.
Press LEVEL. The soft key menu for vertical axis settings appears along with the
reference level setting screen.
2.
Press the LIN SCALE soft key. The vertical axis is displayed with the currently
specified linear scale values.
3.
Press the LIN BASE LEVEL soft key. A screen for setting the lower-end value of
the level scale is displayed.
4.
Enter a value using the rotary knob, arrow keys, or numeric key pad.
5.
Press ENTER.
