5-4
IM AQ6370D-01EN
Setting Units for the Vertical Axis
1.
Press LEVEL.
2.
Press the LEVEL UNIT soft key. When the vertical axis is log scale, the
instruments toggle between dBm and dBm/nm each time you press the key. With
a linear scale, it scrolls through nW, μW, mW, or pW, and nW/nm, μW/nm, mW/nm
or pW/nm.
Setting the Number of Vertical Axis Divisions (for LOG SCALE)
1.
Press LEVEL.
2.
Press the LOG SCALE soft key.
3.
Press the Y SCALE SETTING soft key. The level scale setting menu is displayed.
4.

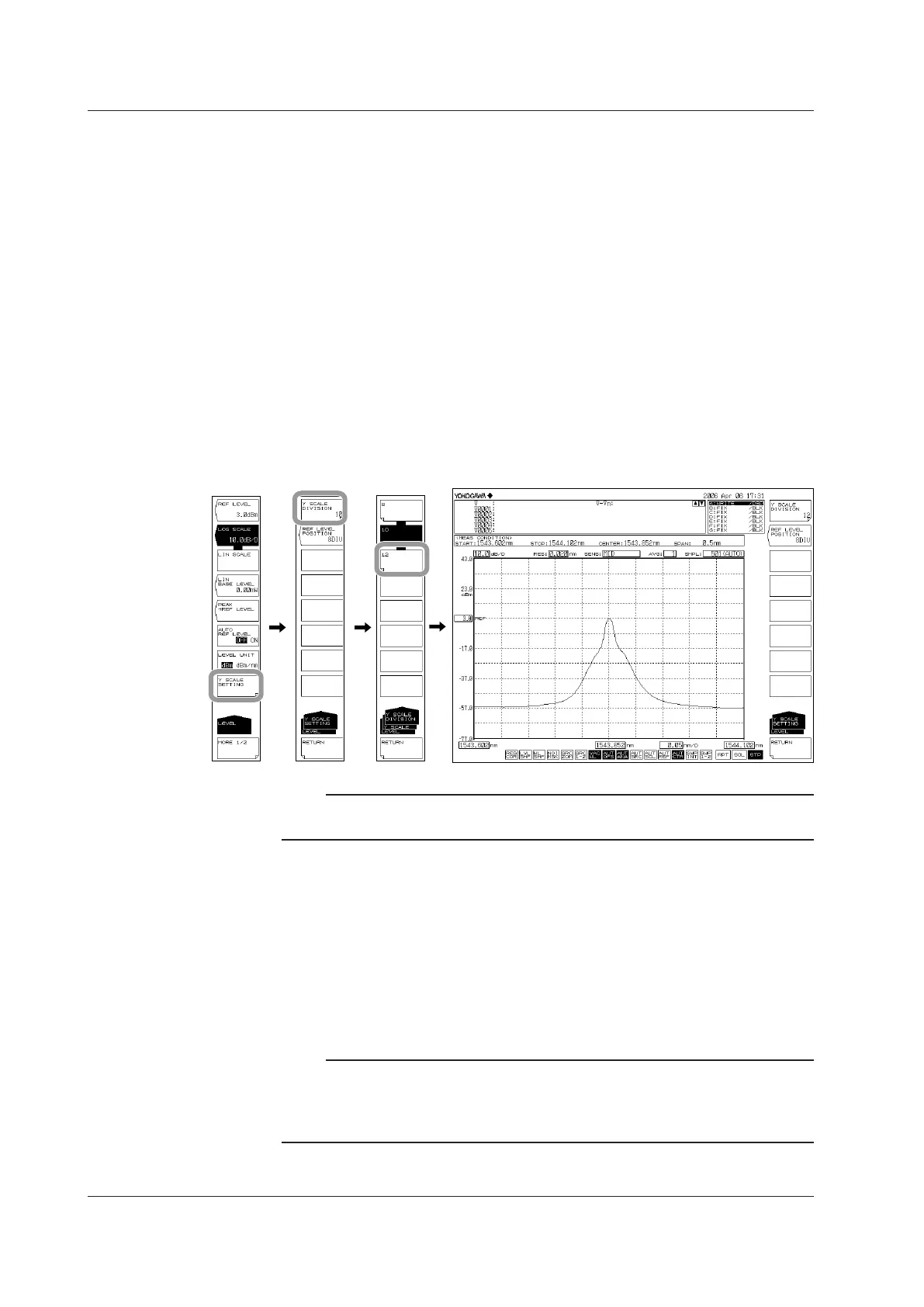

Press the Y SCALE DIVISION soft key. The soft key menu for selecting a number
of divisions is displayed.
5.
Press a soft key corresponding to 8, 10, or 12 divisions. The level axis is
displayed with divisions as selected.
Note
• This is only available when the main scale is a log scale.
• When it is a linear scale, the number of divisions is fixed at 10.
Reference Level Screen Position Setting (for LOG SCALE)
4.
Continuing on from step 3, press the REF LEVEL POSITION soft key. A screen
for setting the screen position of the reference level (REF position) is displayed.
5.
Enter a value starting from the bottom of the screen using the rotary knob, arrow
keys, or numeric key pad. The setting range is 0 to 12. The setting resolution is
steps of 1, or steps of 1-2-5 when COARSE is pressed.
6.
Press ENTER.
Note
• This is only available when the main scale is a log scale.
• If the REF position value is larger than the number of divisions, it is forcibly reduced to the
number of divisions.
• When using linear scale, the REF position is at the top (fixed to 10 divisions).
5.2 Horizontal/Vertical Axis Settings
