Setting by Pressing the REF LEVEL Soft Key (Linear Scale)
1.
Press LEVEL. The soft key menu for vertical axis settings appears along with the
reference level setting screen.
2.
When the vertical axis is not using a linear scale, press the LIN SCALE soft key.
If a linear scale is displayed, continue to step 4.
3.

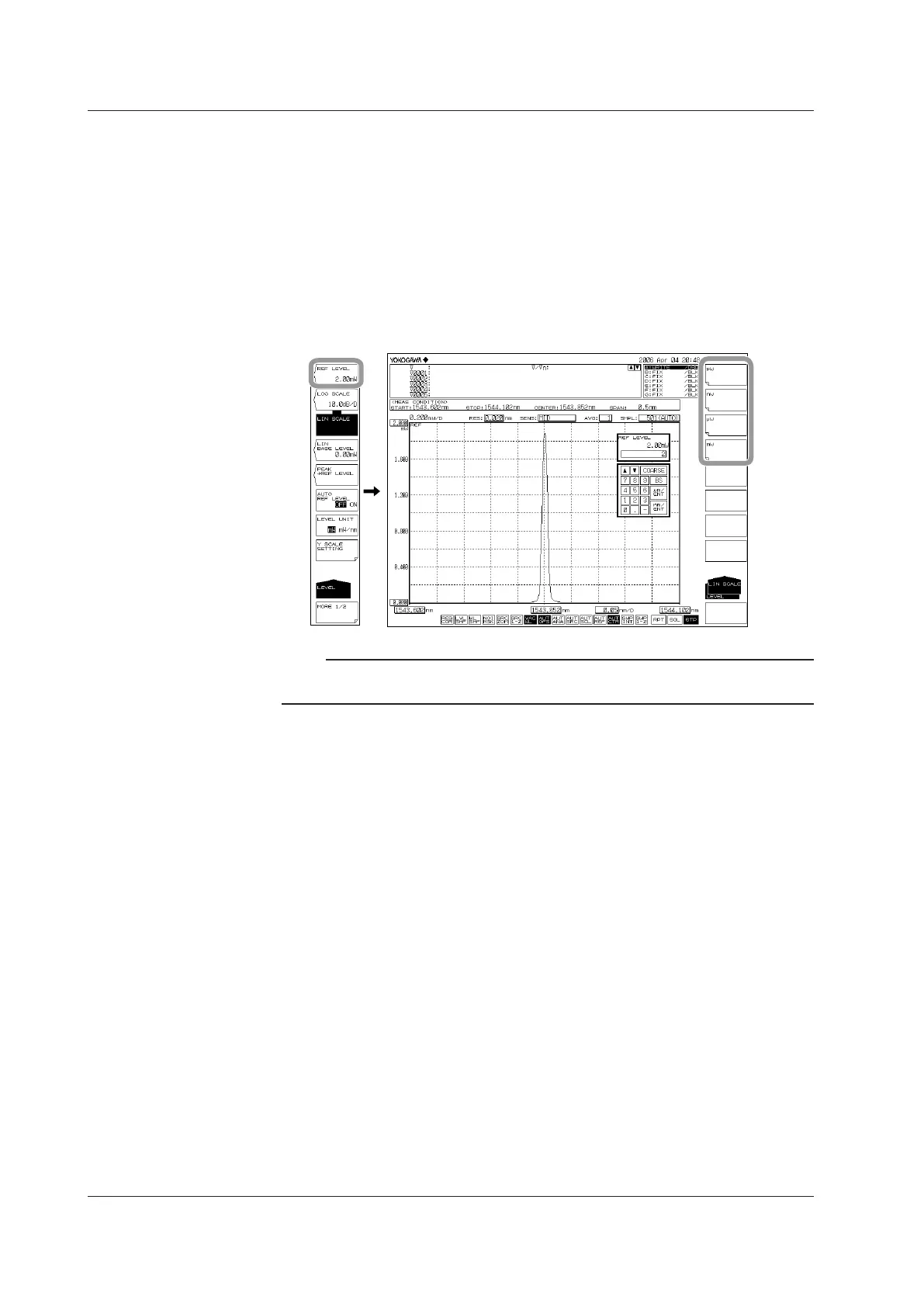

Press the REF LEVEL soft key. The reference level setting screen is displayed.
4.
Enter a reference value using the rotary knob, arrow keys, or numeric key pad.
When a value is input a soft key menu for selecting the instrument appears.
5.
Press the soft key corresponding to the desired units. The reference level is set.
Note
When entered with the rotary knob or arrow keys, the reference level is set using the current
units.
