5-16
IM AQ6370D-01EN
Setting with the START WL/STOP WL or START FREQ/STOP FREQ Soft Key
1.
Press CENTER. The soft key menu for center wavelength or center frequency
settings appears.
Setting the Start Wavelength or Start Frequency
2.

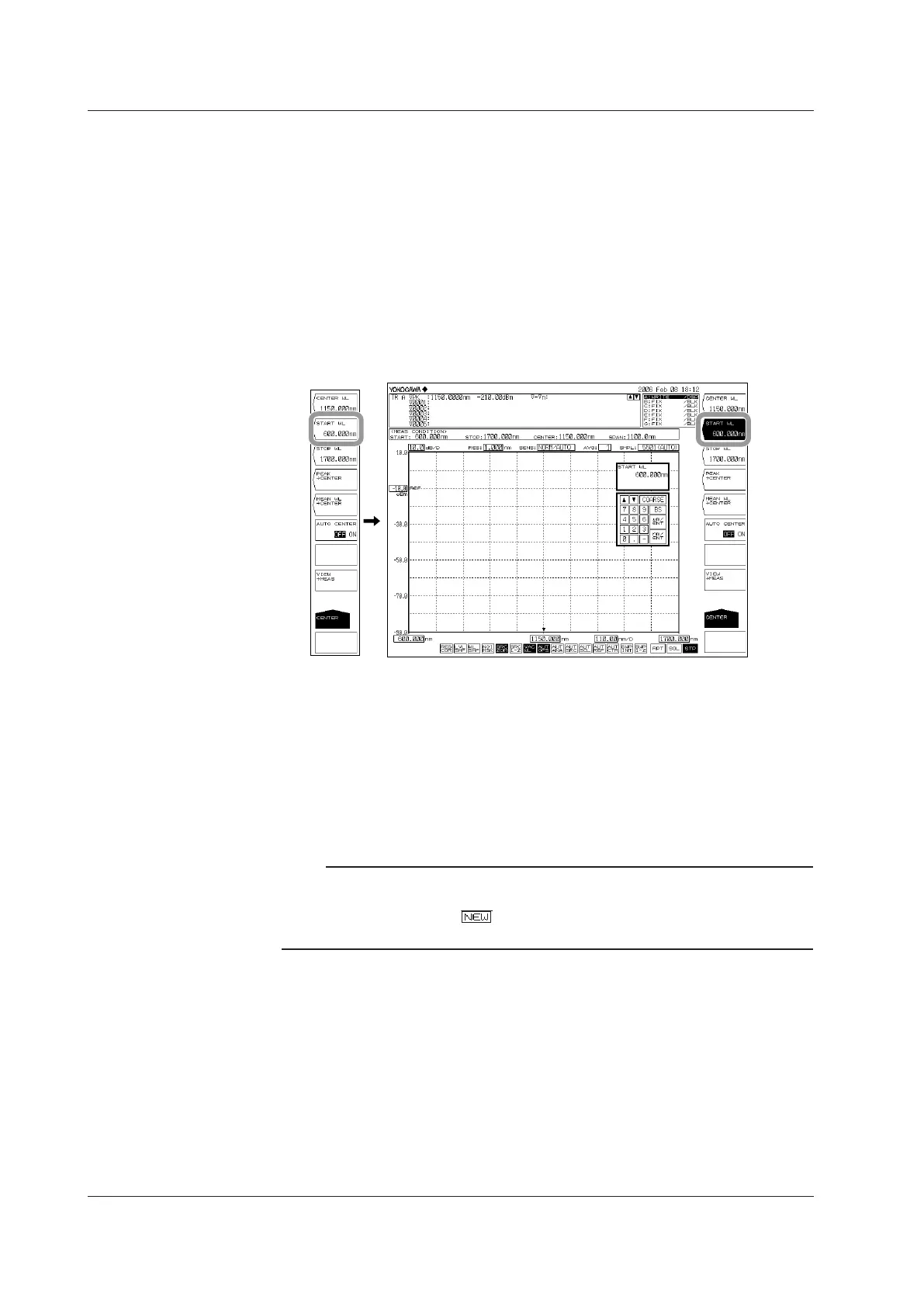

Press the START WL soft key for start wavelength or the START FREQ soft
key for start frequency. The start wavelength or start frequency setting screen is
displayed.
3.
Enter a start wavelength or start frequency using the rotary knob, arrow keys, or
numeric key pad.
4.
Press nm/ENTER.
Setting the Stop Wavelength or Stop Frequency
5.
Press the STOP WL soft key for stop wavelength or the STOP FREQ soft key
for stop frequency. The stop wavelength or stop frequency setting screen is
displayed.
6.
Enter a stop wavelength or stop frequency using the rotary knob, arrow keys, or
numeric key pad.
7.
Press nm/ENTER.
Note
• It is not necessary to press nm/ENTER when using the rotary knob or arrow keys.
• The set value is applied to the measurement conditions area.
• When a setting is changed,
appears in the measurement conditions area.
• If a value outside the setting range is entered, the nearest permitted value is set.
For instructions on switching the wavelength and frequency displays, see section 5.2.
5.5 Center Wavelength (Center Frequency) Setting
