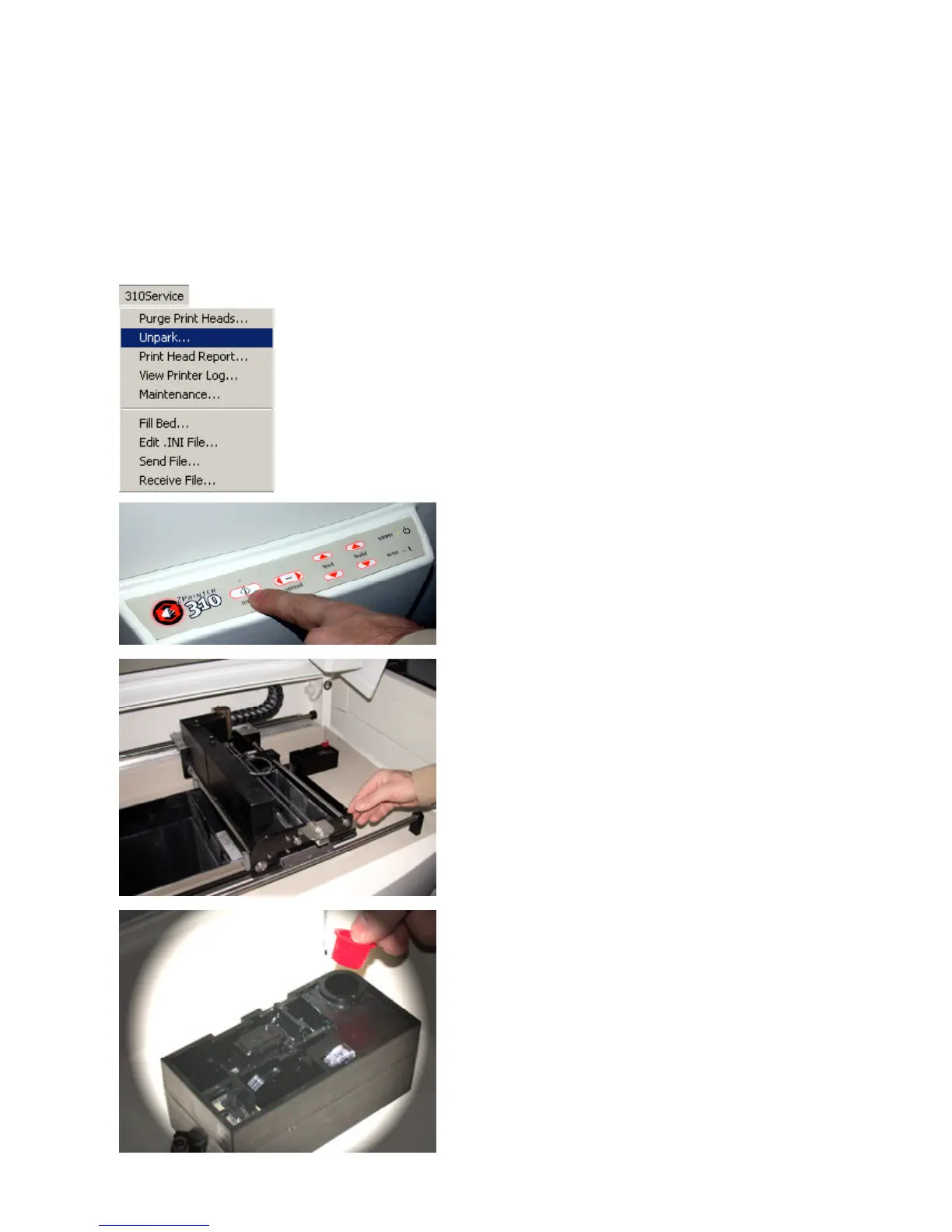

REFILLING THE WASH FLUID RESERVOIR
2. Take the printer offline.
3. Lift the top cover of the printer.
4. Manually move the gantry to expose the service
station.
5. Remove the red wash fluid reservoir cover.
1. Select the ‘Unpark’ option in the ZPrint Software
under the 310Service menu.
Refill the wash fluid reservoir with zc10 wash fluid when alerted by the ZPrint Software, or refill if the wick on the
service station has dried out. One bottle of wash fluid will fill up the entire reservoir. The ZPrint Software will alert
you when it is time to refill the wash fluid if the maintenance reminder feature is enabled.
