5 - 18 CS4070 Scanner Product Reference Guide

Transmit UPC-E1 Check Digit

Parameter # 42

SSI # 2Ah

The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate

bar code below to transmit the bar code data with or without the UPC-E1 check digit. It is always verified to

guarantee the integrity of the data.

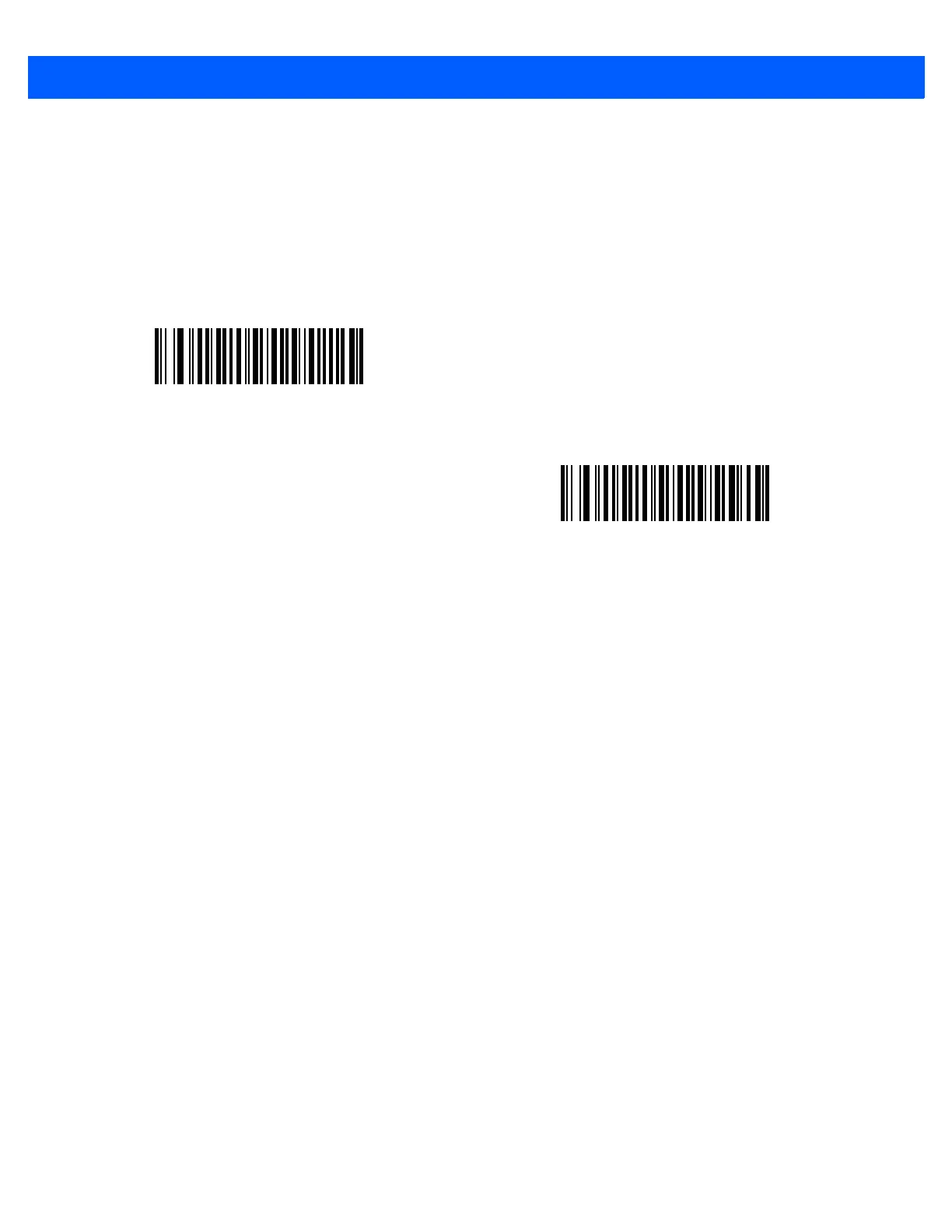

*Transmit UPC-E1 Check Digit

(1)

Do Not Transmit UPC-E1 Check Digit

(0)
