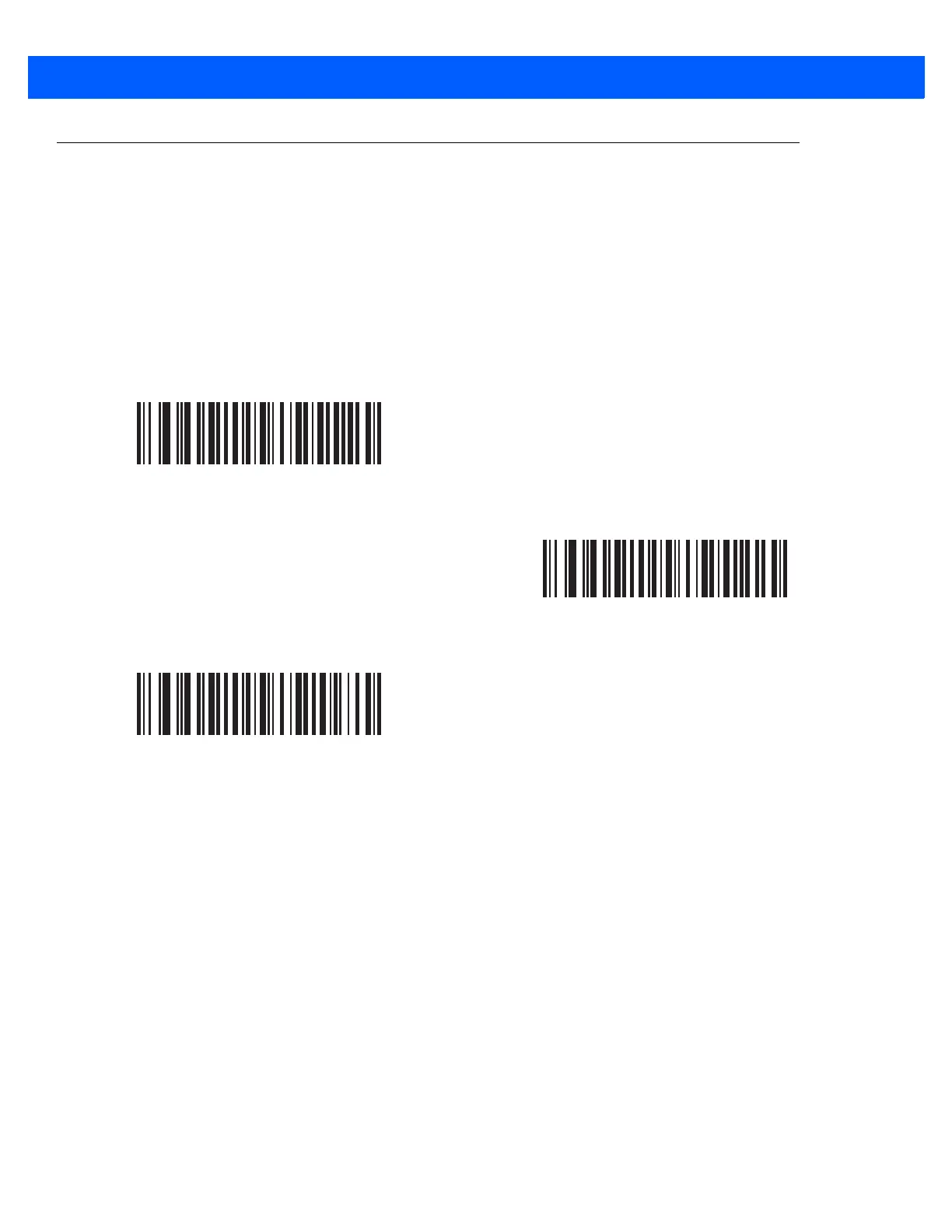

5 - 64 CS4070 Scanner Product Reference Guide

Inverse 1D

Parameter # 586

SSI # F1h 4Ah

This parameter sets the 1D inverse scanner setting. Options are:

•

Regular Only - the scanner decodes regular 1D bar codes only.

•

Inverse Only - the scanner decodes inverse 1D bar codes only.

•

Inverse Autodetect - the scanner decodes both regular and inverse 1D bar codes.

*Regular

(0)

Inverse Only

(1)

Inverse Autodetect

(2)
