Symbologies 5 - 85

QR Inverse

Parameter # 587

SSI # F1h 4Bh

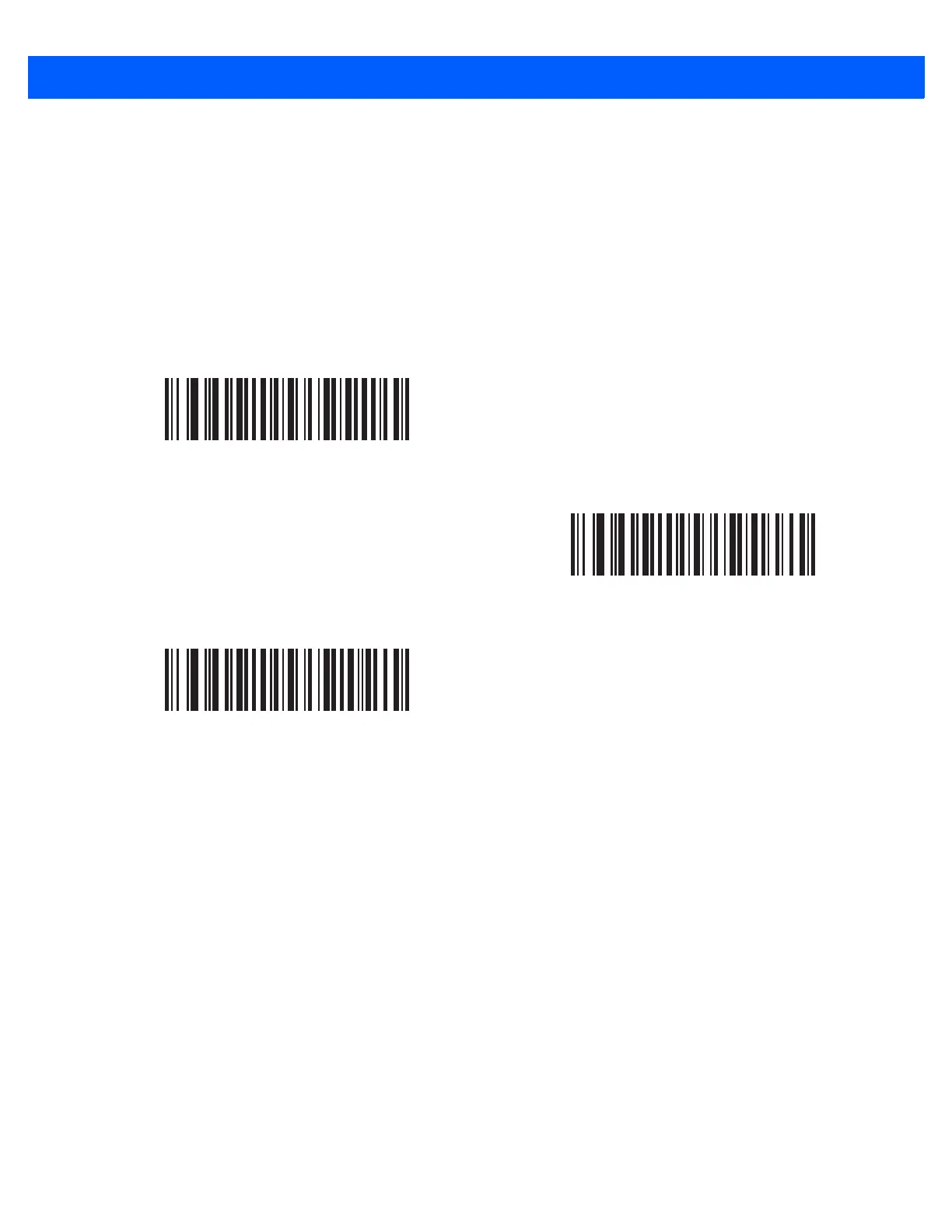

This parameter sets the QR inverse scanner setting. Options are:

•

Regular Only - the scanner decodes regular QR bar codes only.

•

Inverse Only - the scanner decodes inverse QR bar codes only.

•

Inverse Autodetect - the scanner decodes both regular and inverse QR bar codes.

*Regular

(0)

Inverse Only

(1)

Inverse Autodetect

(2)
