User Preferences 3 - 31

Presentation Mode Field of View

Parameter # 609

SSI # F1h 61h

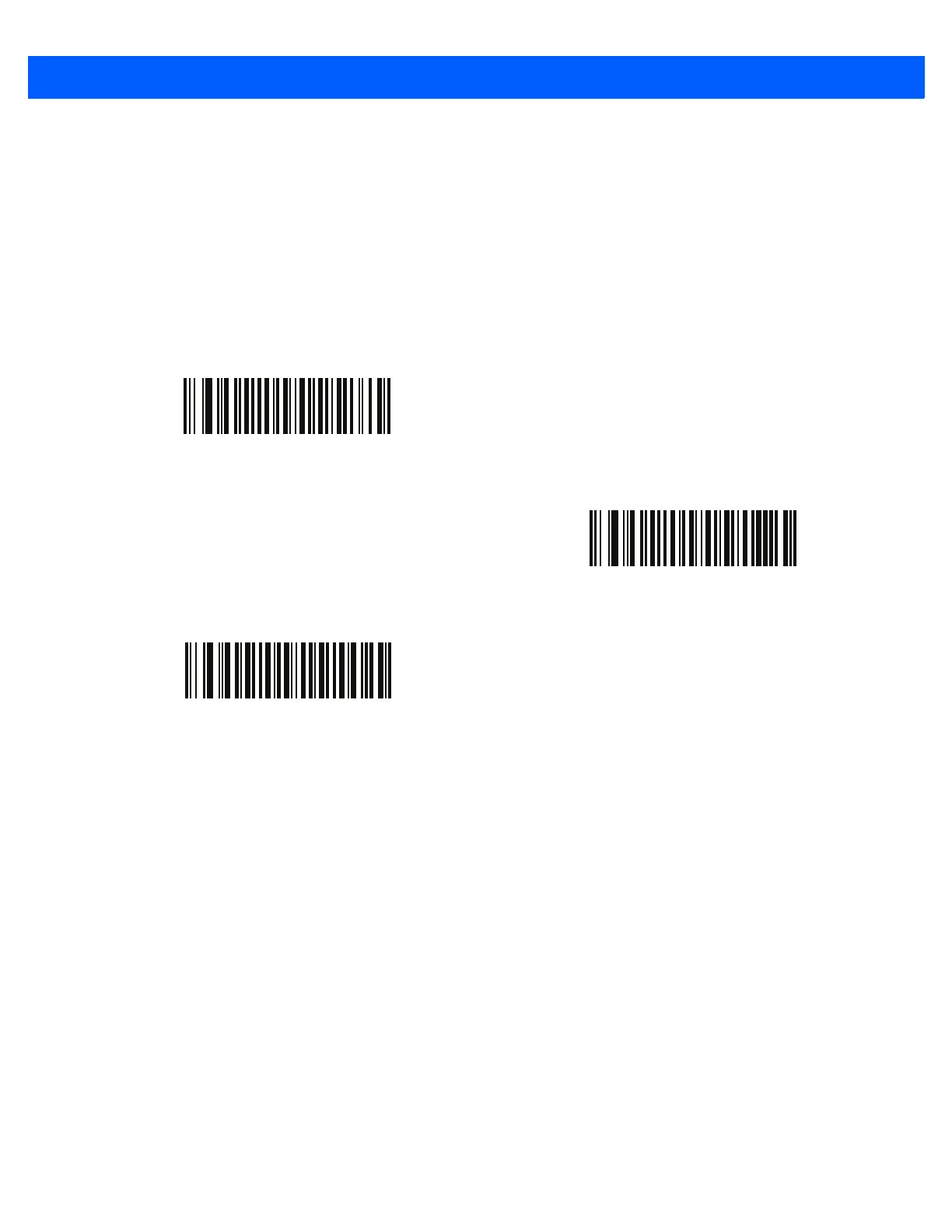

In presentation mode, by default the scanner searches the larger area of the aiming pattern (Full Field of View).

To search for a bar code in a smaller region around the aiming dot’s center in order to speed search time,

select

Small Field of View or Medium Field of View.

Small Field of View

(0)

Medium Field of View

(1)

*Full Field of View

(2)
