Accessories B - 11
3. Use four screws to mount the bracket to a wall. Ensure to use additional wall mounting hardware, as
needed, for safe mounting to the wall type.

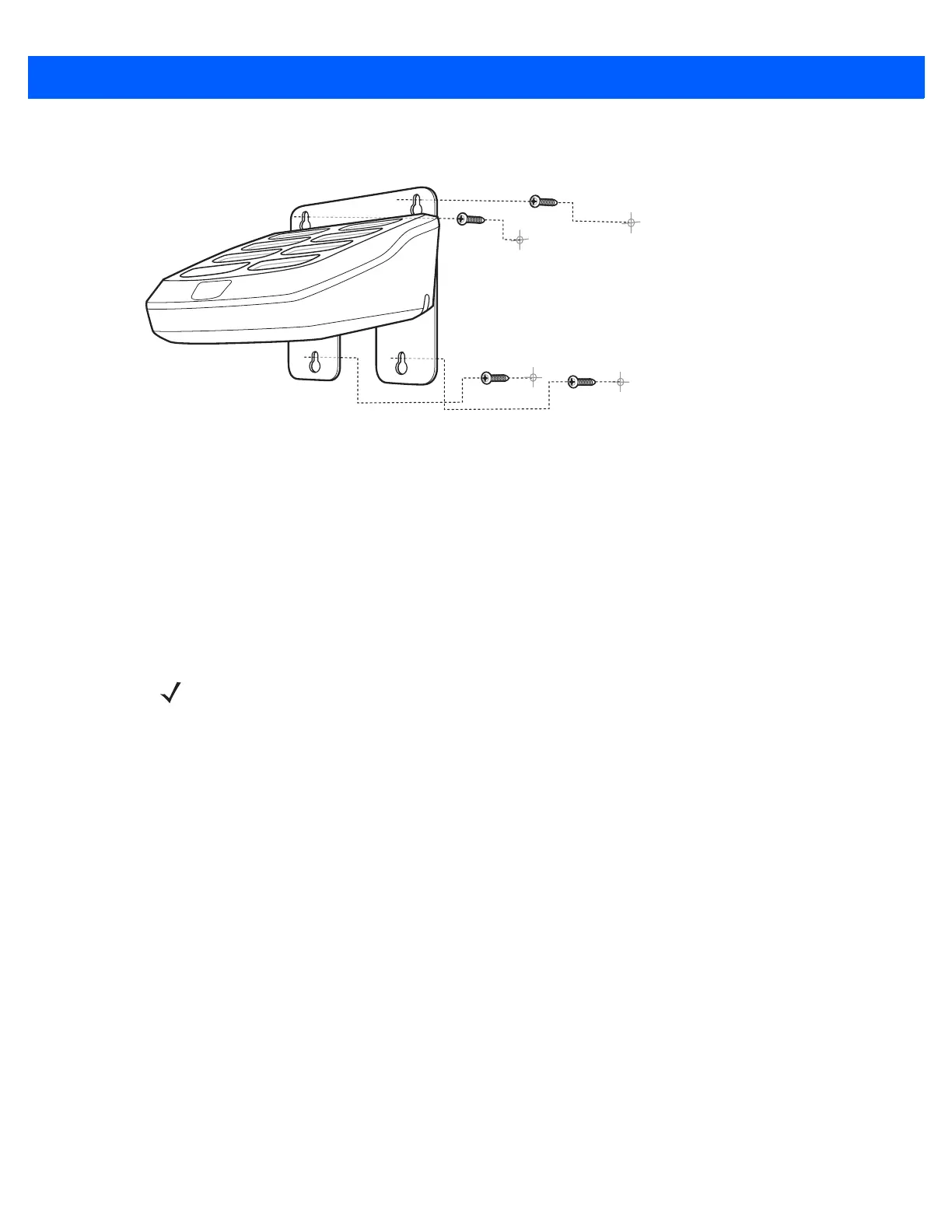

Figure B-8
Mount to Wall
KT-102375-01R Bracket
The KT-102375-01R bracket mounts one CHS5000-8000CR (eight-slot) CS4070 charger, or two
SAC5000-8000CR (eight-slot) spare battery chargers to a wall. Use the wall mount brackets as a template to
mark the locations of the four mounting screws.
Included Hardware
•
Two KT-102375-01R Mounting Bracket
•
One black .5” Phillips round head, thread cutting screw.
NOTE Use the .5” Phillips round head screw supplied in mounting bracket kit to attach the eight-slot spare
battery charger to the mounting bracket. This screw is not intended for mounting the bracket on a wall.
For safety and stability, it is recommended that you use the appropriate wall mounting hardware for
installation. For safe mounting, it is essential to use wall anchors appropriate to the wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.
The wall mount bracket mounting slots are designed for a fastener with a #8 pan head.
To Next Page
