5 - 82 CS4070 Scanner Product Reference Guide

Data Matrix Inverse

Parameter # 588

SSI # F1h 4Ch

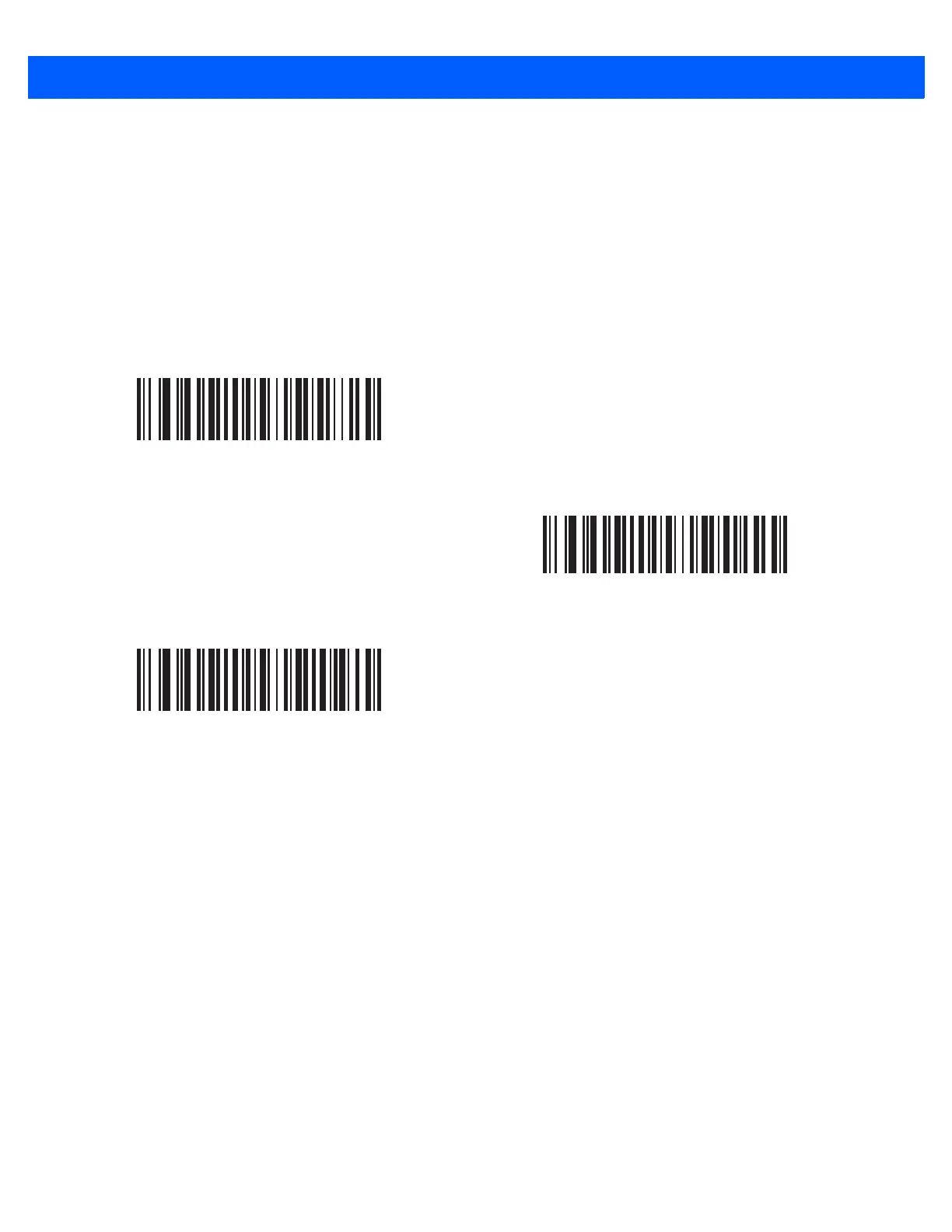

This parameter sets the Data Matrix inverse scanner setting. Options are:

•

Regular Only - the scanner decodes regular Data Matrix bar codes only.

•

Inverse Only - the scanner decodes inverse Data Matrix bar codes only.

•

Inverse Autodetect - the scanner decodes both regular and inverse Data Matrix bar codes.

Regular

(0)

Inverse Only

(1)

*Inverse Autodetect

(2)
