Symbologies 5 - 87

Aztec Inverse

Parameter # 589

SSI # F1h 4Dh

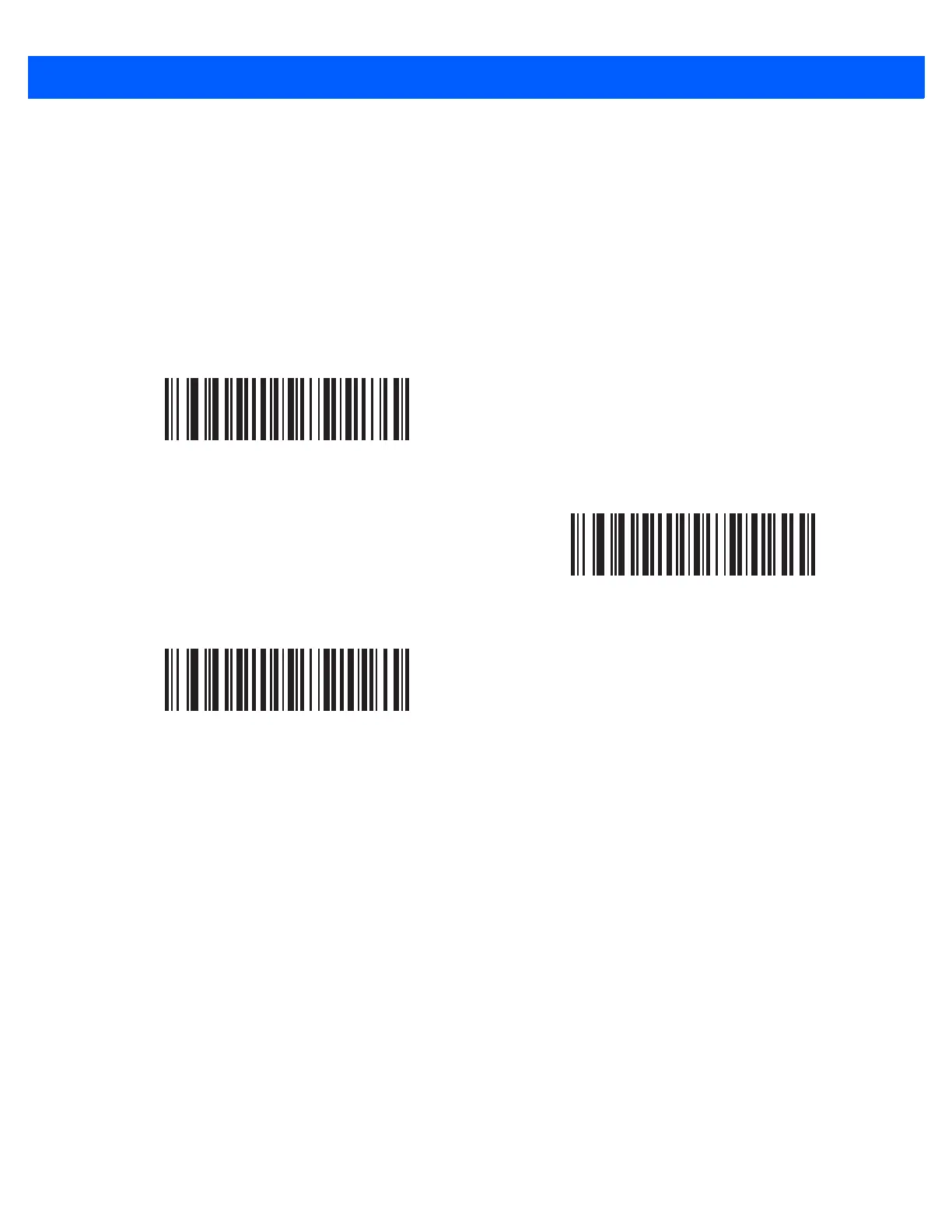

This parameter sets the Aztec inverse scanner setting. Options are:

•

Regular Only - the scanner decodes regular Aztec bar codes only.

•

Inverse Only - the scanner decodes inverse Aztec bar codes only.

•

Inverse Autodetect - the scanner decodes both regular and inverse Aztec bar codes.

Regular

(0)

Inverse Only

(1)

*Inverse Autodetect

(2)
