Accessories B - 3
Single-Slot CS4070 Charging Cradle with Spare Battery Charger
The single-slot CS4070 charging cradle:
•
Provides 5.1 VDC power for operating the device.
•
Charges the CS4070 battery in the device.
•
Charges one spare battery.
To charge batteries in the single-slot cradle:
1. Connect the cradle to power.
2. To charge the battery in the device, insert the CS4070 into the device slot.
To charge a spare battery, insert it in the spare battery charging well.

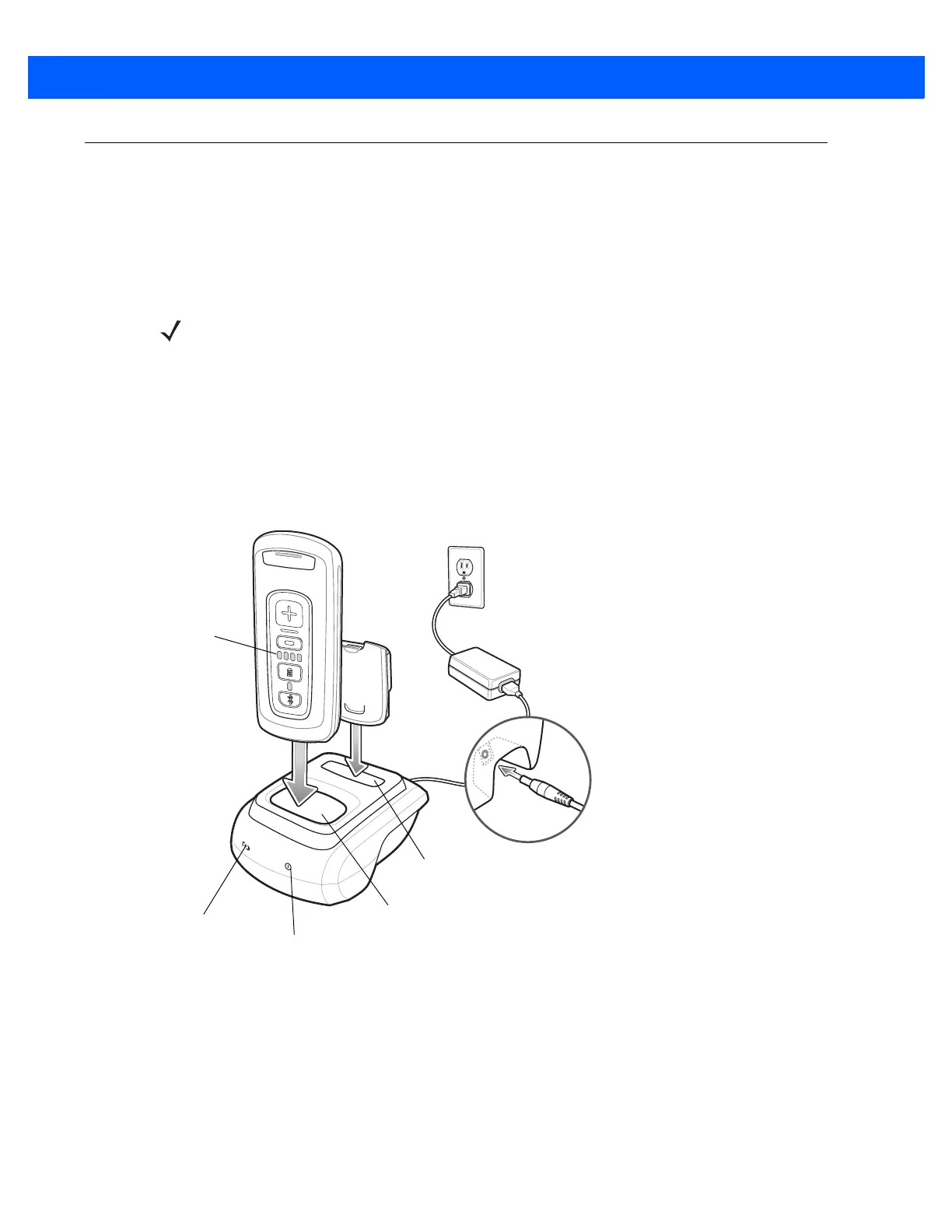

Figure B-1
Single-Slot Cradle Power Connection
NOTE Use only genuine Zebra batteries (p/n 82-83172-01) with CS4070 devices and charging accessories.
Use only an approved power supply 50-14000-147R output rated 12 Vdc and minimum 3.3 A with AC line
cord 50-16000-182R. The power supply is certified to EN60950-1 with SELV outputs. Use of an
alternative power supply invalidates any approval given to this device and may be dangerous.
Battery Charge
LEDs
Spare Battery
Charge LED
Cradle Power LED
Spare Battery
Charging Well
Device Charging
Slot
