Accessories B - 5
Eight-Slot CS4070 Charging Cradle
The eight-slot CS4070 charging cradle provides 5.1 VDC power for operating the device and charges the
CS4070 battery in the device.
To charge batteries in the eight-slot charging cradle:
1. Connect the cradle to power.
2. To charge the device battery, insert the CS4070 into a device slot.

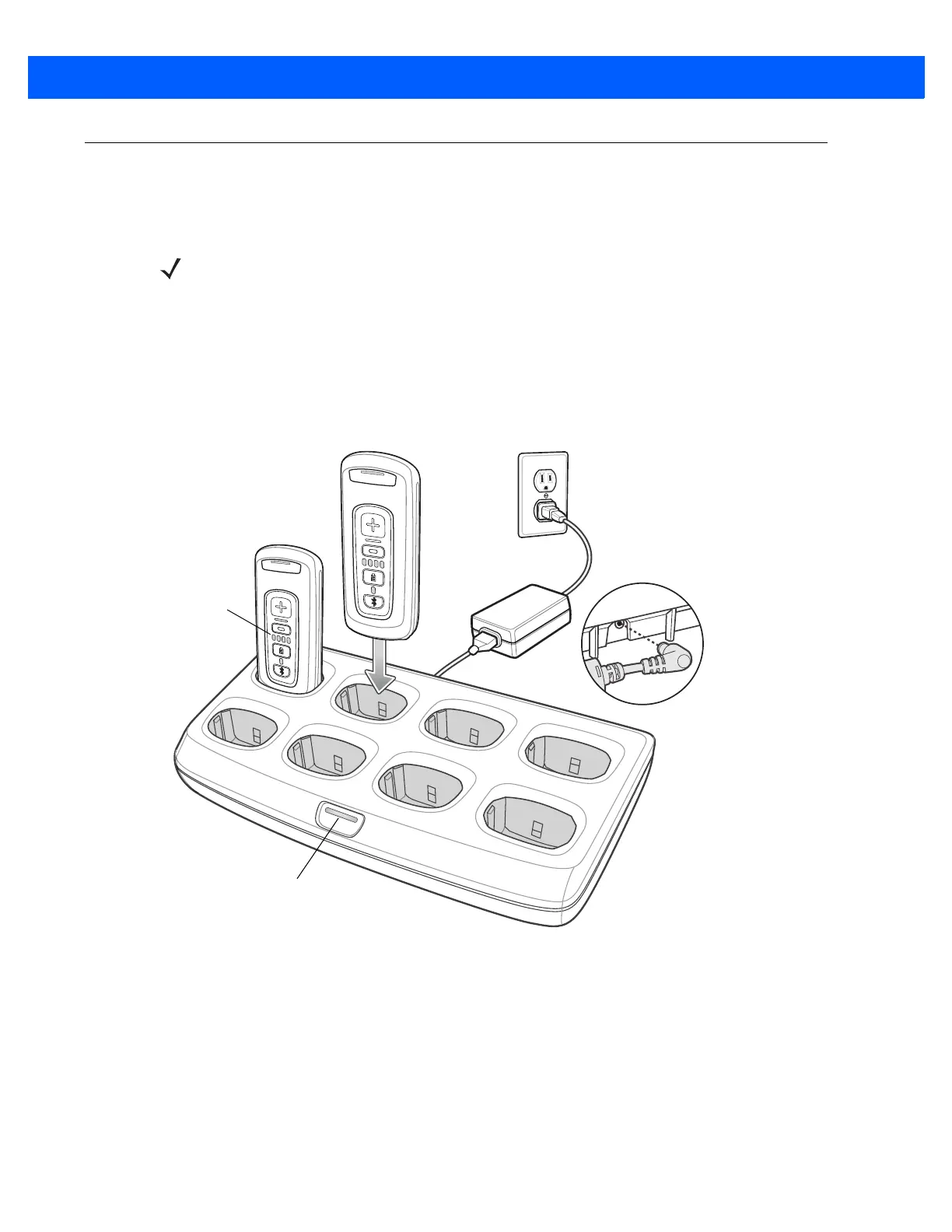

Figure B-2
Eight-Slot Cradle Power Connection
NOTE Use only genuine Zebra batteries (p/n 82-83172-01) with CS4070 devices and charging accessories.
Use only an approved power supply KT-14000-148R output rated 12 Vdc and minimum 3.3 A with AC line
cord 23844-00-00. The power supply is certified to EN60950-1 with SELV outputs. Use of an alternative
power supply invalidates any approval given to this device and may be dangerous.
Cradle Power
Battery Level
LEDs
To Next Page
