Symbologies 5 - 65

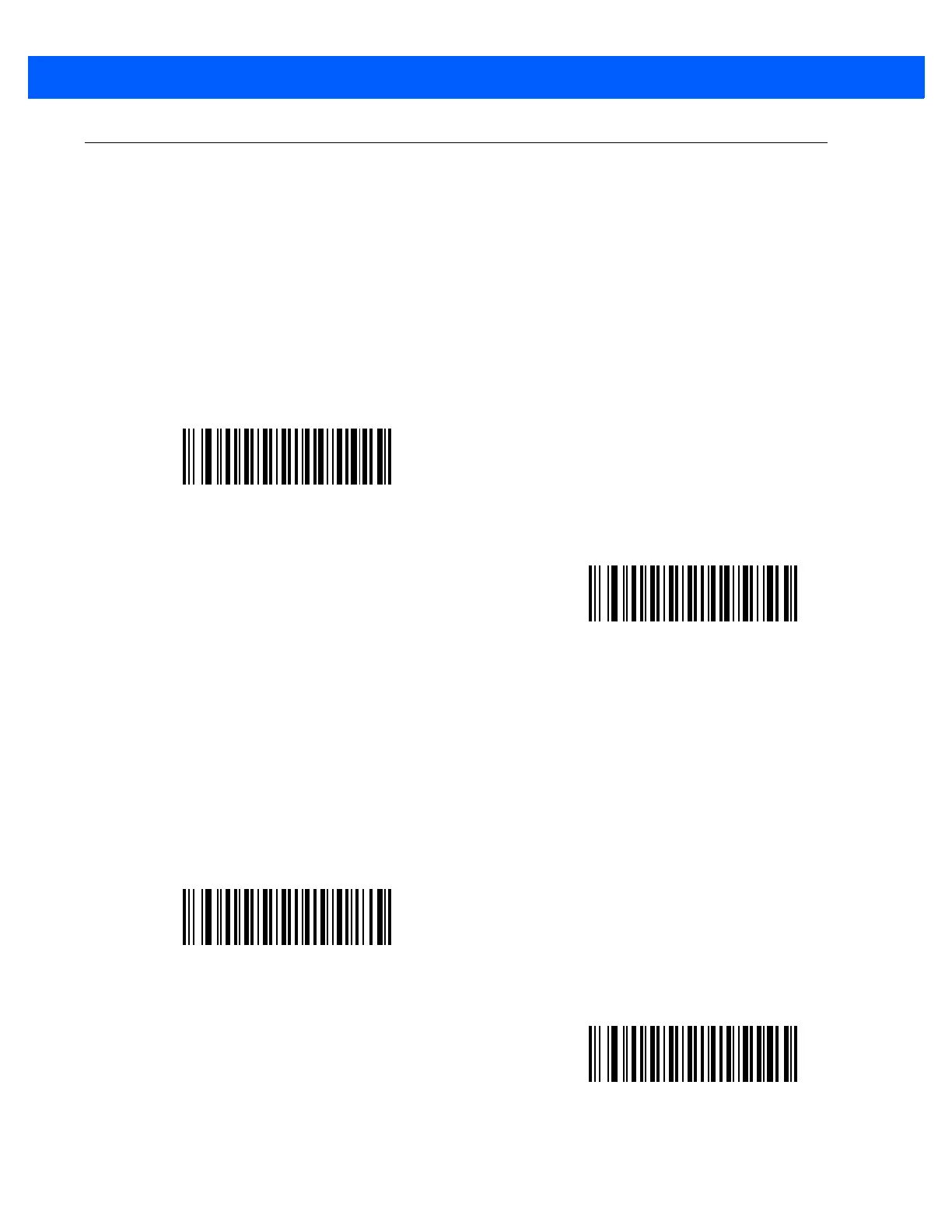

GS1 DataBar

The variants of GS1 DataBar are DataBar-14, DataBar Expanded, and DataBar Limited. The limited and

expanded versions have stacked variants. Scan the appropriate bar codes to enable or disable each variant of

GS1 DataBar.

GS1 DataBar-14

Parameter # 338

SSI # F0h 52h

GS1 DataBar Limited

Parameter # 339

SSI # F0h 53h

*Enable GS1 DataBar-14

(1)

Disable GS1 DataBar-14

(0)

*Enable GS1 DataBar Limited

(1)

Disable GS1 DataBar Limited

(0)
