5 - 68 CS4070 Scanner Product Reference Guide

Composite

Composite CC-C

Parameter # 341

SSI # F0h 55h

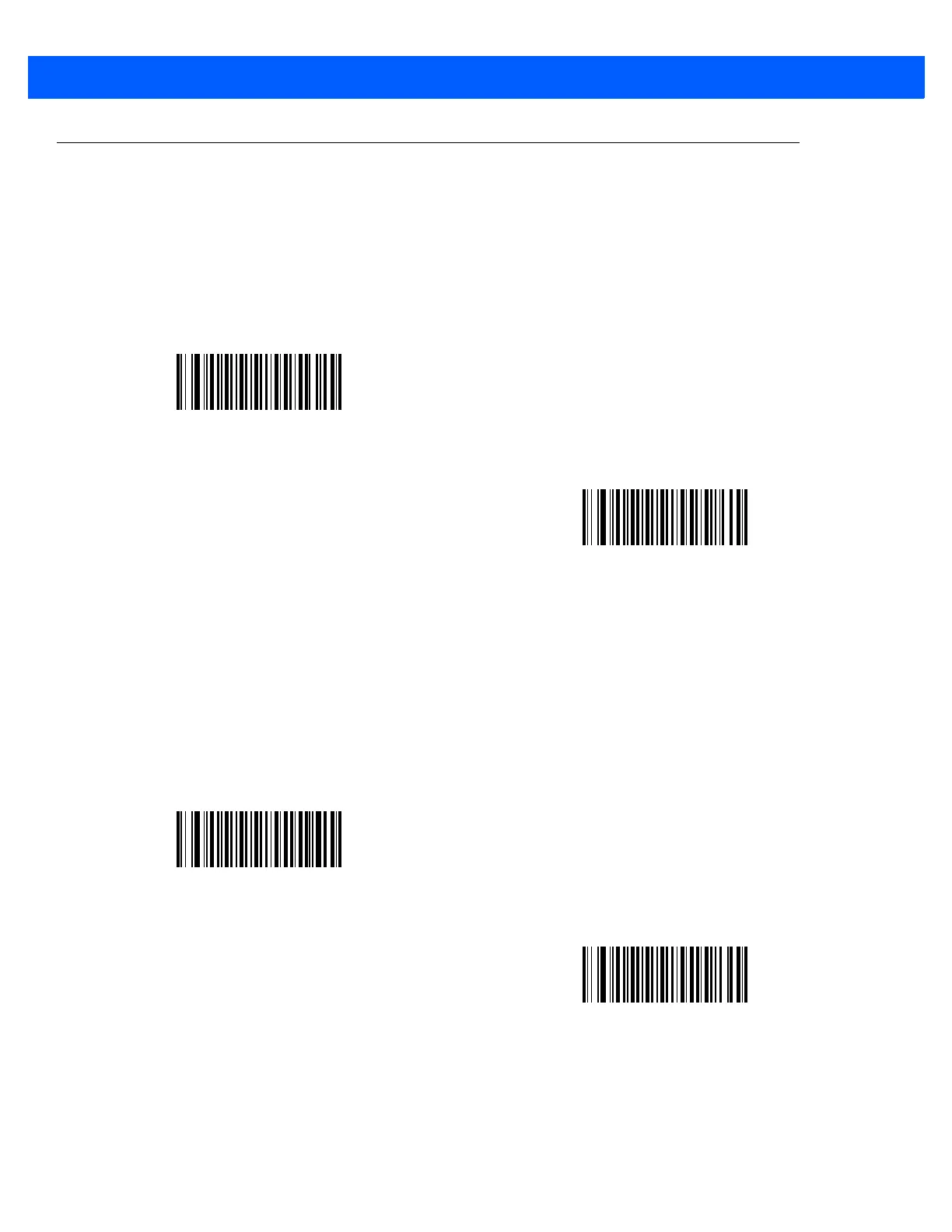

Scan a bar code below to enable or disable Composite bar codes of type CC-C.

Composite CC-A/B

Parameter # 342

SSI # F0h 56h

Scan a bar code below to enable or disable Composite bar codes of type CC-A/B.

Enable CC-C

(1)

*Disable CC-C

(0)

Enable CC-A/B

(1)

*Disable CC-A/B

(0)
