B - 10 CS4070 Scanner Product Reference Guide
Mounting Instructions

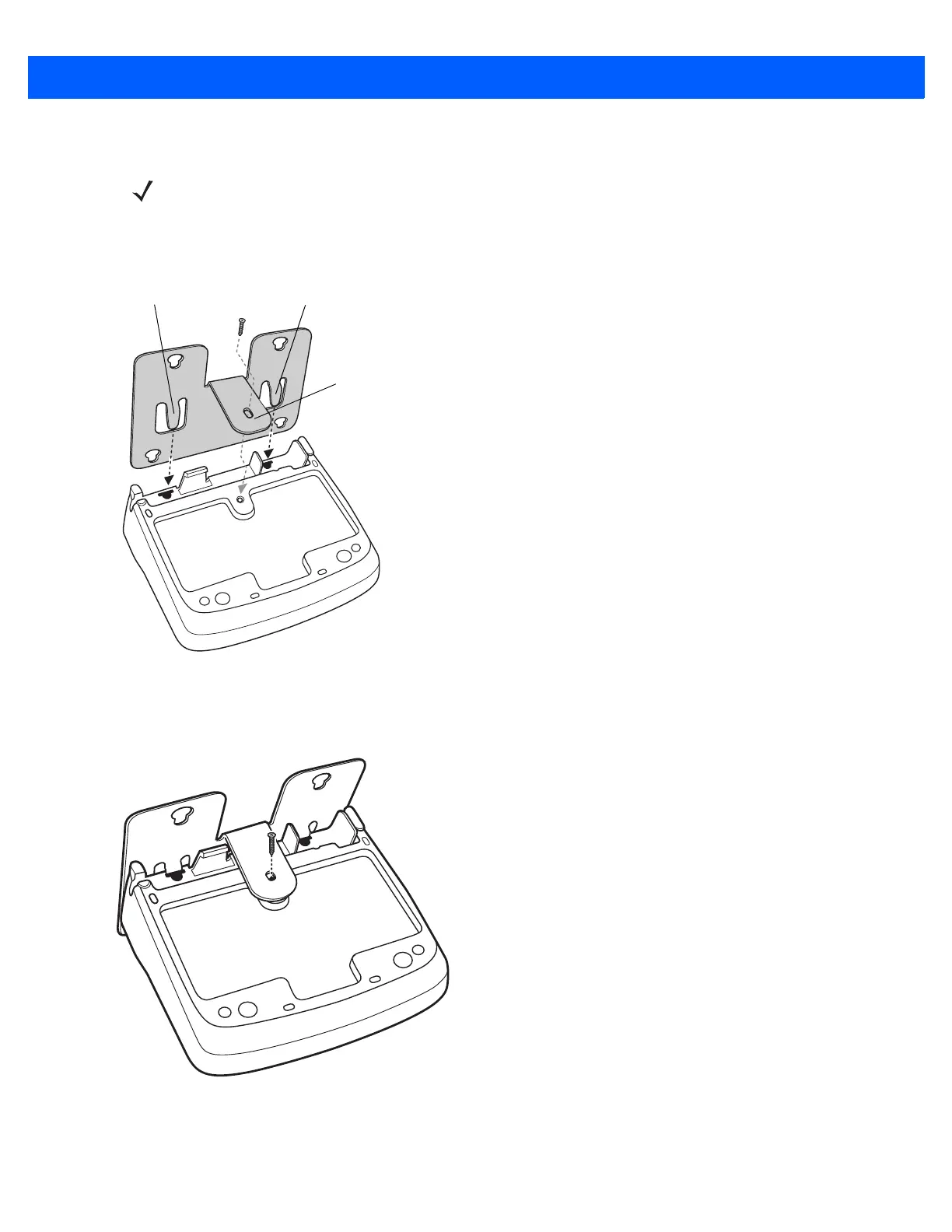

1. Slide the two bracket mounting tabs into the receptacles on the bottom of the cradle as shown. Ensure the
screw hole in the bracket flange aligns with the screw hole in the cradle.
Figure B-6
Insert Bracket into Cradle
2. Screw the .5” Phillips screw (supplied) into the bracket flange and tighten until the cradle is securely
attached to the bracket.
Figure B-7
Attach Flange with Screw
NOTE Connect an approved power supply to the cradle prior to attaching the cradle to the wall mount bracket.
See Eight-Slot Spare Battery Charger on page B-7 for power supply information.
Mounting
tab
Flange
Mounting
tab
