6 - 4 DS2208 Digital Scanner Product Reference Guide
Signature Capture File Format Selector
Parameter # 313
SSI # F0h 39h

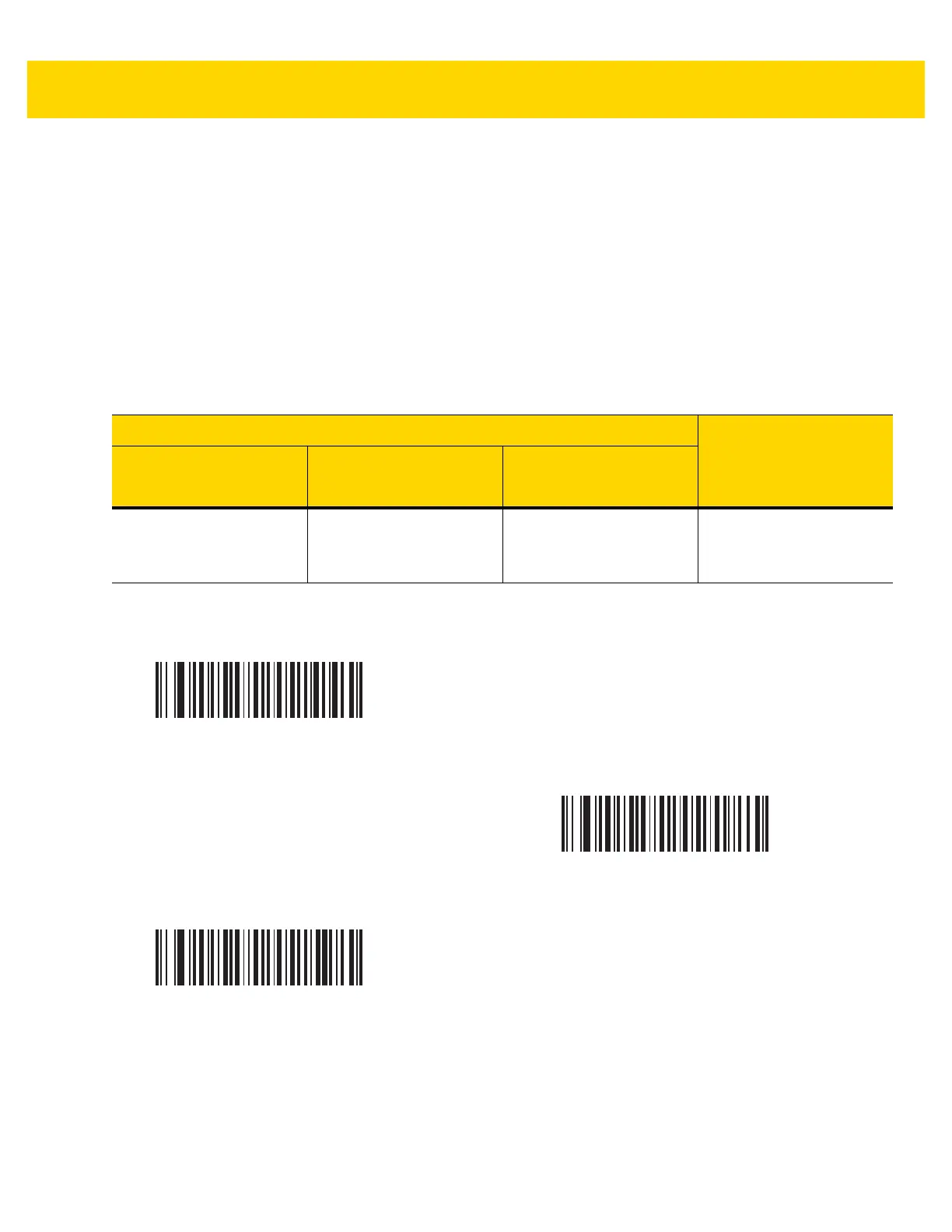

Scan one of the following bar codes to select a signature file format appropriate for the system (BMP, TIFF, or
JPEG). The imager stores captured signatures in the selected format.
Output File Format
Decoding a signature capture bar code de-skews the signature image and converts the image to a BMP, JPEG, or
TIFF file format. The output data includes the file descriptor followed by the formatted signature image.
Table 6-2 Output File Format
File Descriptor
Signature Image
Output Format
(1 byte)
Signature Type (1 byte)
Signature Image Size
(4 bytes)
(BIG Endian)
JPEG - 1
BMP - 3
TIFF - 4
1-8 0x00000400 0x00010203….
BMP Signature Format
(3)
*JPEG Signature Format
(1)
TIFF Signature Format
(4)
