9 - 18 DS2278 Digital Scanner Product Reference Guide

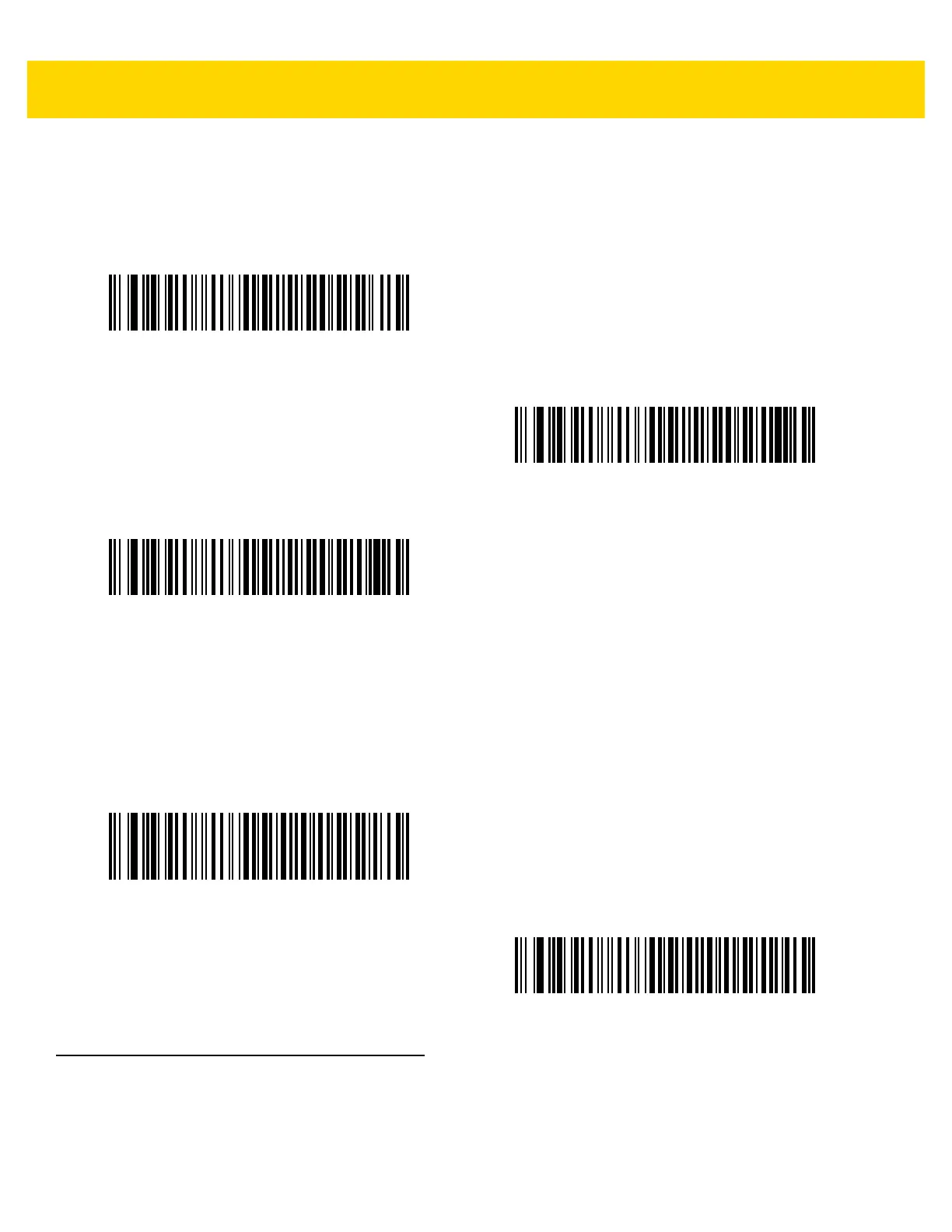

Nixdorf Beep/LED Options
If you selected Nixdorf Mode B, scan one of the following bar codes to indicate when the scanner beeps and turns
on its LED after a decode.
Bar Codes with Unknown Characters
Unknown characters are characters the host does not recognize. Scan Send Bar Codes With Unknown
Characters to send all bar code data except for unknown characters. The scanner issues no error beeps.
Scan Do Not Send Bar Codes With Unknown Characters to send bar code data up to the first unknown
character. The scanner issues an error beep.
ASCII Character Set for RS-232
See Appendix I, ASCII Character Sets for Prefix/Suffix values. The values in Table I-1 can be assigned as prefixes
or suffixes for ASCII character data transmission.
*Normal Operation
(Beep/LED Immediately After Decode)
Beep/LED After Transmission
Beep/LED After CTS Pulse
*Send Bar Codes With Unknown Characters
Do Not Send Bar Codes With Unknown Characters
