Zebra DS2278 Reference Guide

Symbologies 12 - 93
Grid Matrix
Parameter # 1718
SSI # F8h 06h B6h

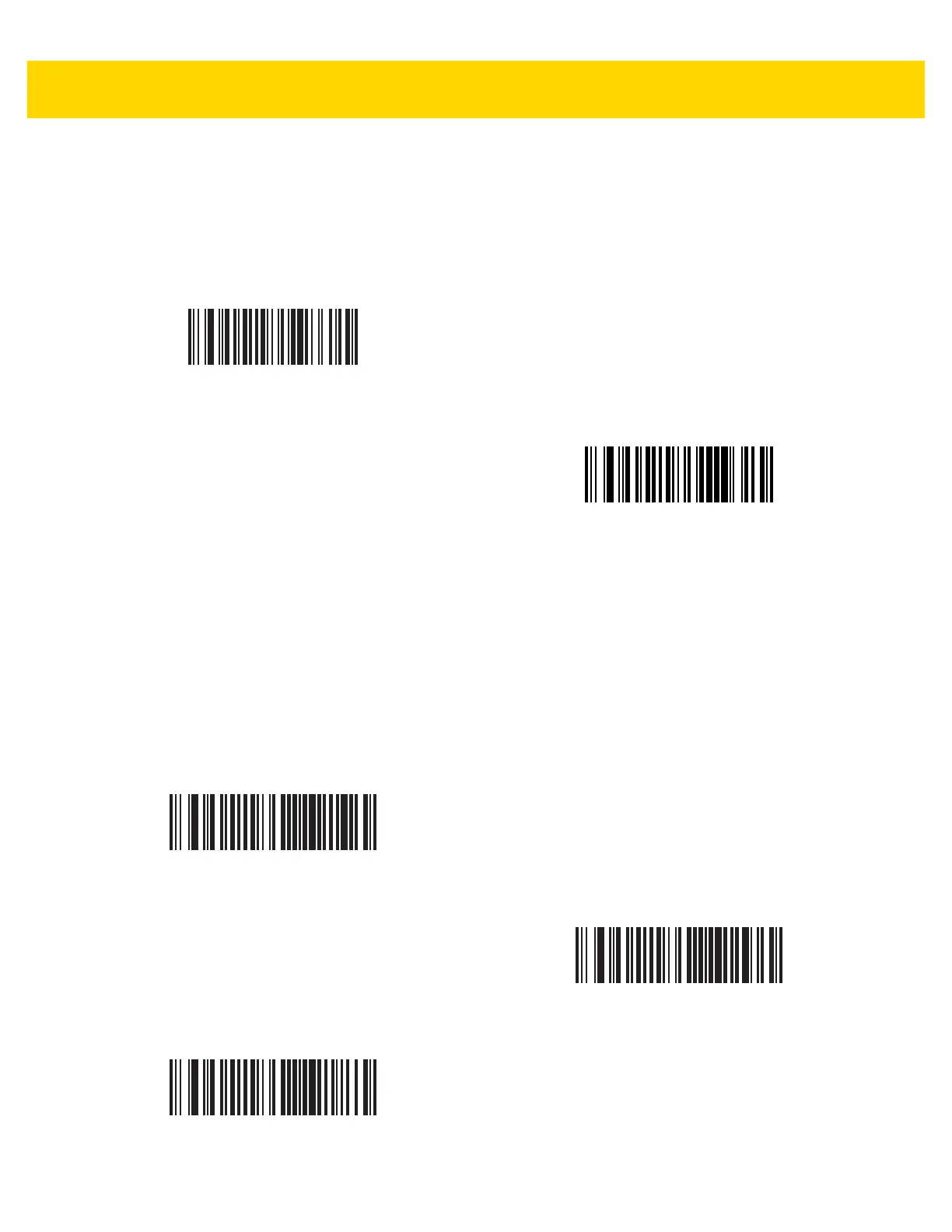

Scan one of the following bar codes to enable or disable Grid Matrix.
Grid Matrix Inverse
Parameter # 1719
SSI # F8h 06h B7h
Scan one of the following bar codes to select a Grid Matrix inverse decoder setting:
• Regular Only - The scanner decodes regular Grid Matrix bar codes only.
• Inverse Only - The scanner decodes inverse Grid Matrix bar codes only.
• Autodiscriminate - The scanner decodes both regular and inverse Grid Matrix bar codes.
Enable
(1)
*Disable
(0)
*Regular Only
(0)
Inverse Only
(1)
Autodiscriminate
(2)

Zebra DS2278 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	White
LED indicators	Yes
Built-in display	No
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	645 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	-65 - 65 °
Motion tolerance (cm/s)	13
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
Optical sensor resolution (W x H)	640 x 480 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Battery life	84 h
Input voltage	4.5 - 5.5 V
Battery capacity	2400 mAh
Power source type	Battery, DC
Number of batteries supported	1
USB version	2.0
Bluetooth version	4.0
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	90 mm
Width	66 mm
Height	175 mm
Weight	214 g
