Zebra DS2278 Reference Guide

12 - 16 DS2278 Digital Scanner Product Reference Guide
User-Programmable Supplementals
Supplemental 1: Parameter # 579
SSI # F1h 43h
Supplemental 2: Parameter # 580
SSI # F1h 44h
If you selected a Supplemental User-Programmable option from Decode UPC/EAN/JAN Supplementals on page
12-13, scan User-Programmable Supplemental 1, and then scan three bar codes from Appendix G, Numeric
Bar Codes to set the 3-digit prefix. To set a second 3-digit prefix, scan User-Programmable Supplemental 2, and
then scan three bar codes from Appendix G, Numeric Bar Codes. The default is 000 (zeroes).
UPC/EAN/JAN Supplemental Redundancy
Parameter # 80
SSI # 50h
If you selected Autodiscriminate UPC/EAN/JAN with Supplementals, this option sets the number of times to
decode a symbol without supplementals before transmission. The range is from two to 30. Five or above is
recommended when decoding a mix of UPC/EAN/JAN symbols with and without supplementals.
The default is 10.
To set a redundancy value, scan the following bar code, and then scan two bar codes from Appendix G, Numeric
Bar Codes. Enter a leading zero for single digit numbers. To correct an error or change a selection, scan Cancel
on page G-3.

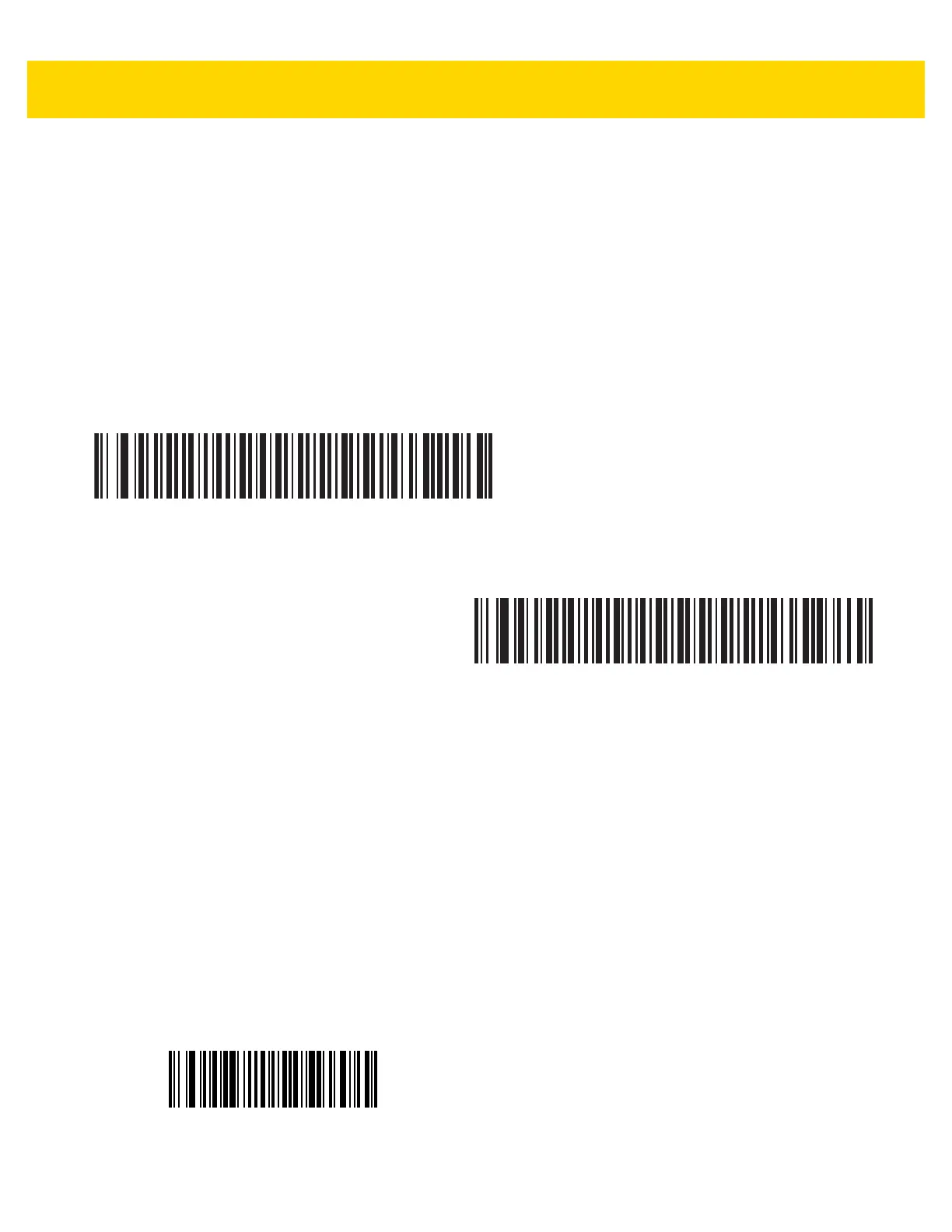

User-Programmable Supplemental 1
User-Programmable Supplemental 2
UPC/EAN/JAN Supplemental Redundancy

Zebra DS2278 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	White
LED indicators	Yes
Built-in display	No
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	645 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	-65 - 65 °
Motion tolerance (cm/s)	13
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
Optical sensor resolution (W x H)	640 x 480 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Battery life	84 h
Input voltage	4.5 - 5.5 V
Battery capacity	2400 mAh
Power source type	Battery, DC
Number of batteries supported	1
USB version	2.0
Bluetooth version	4.0
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	90 mm
Width	66 mm
Height	175 mm
Weight	214 g
