Zebra DS2278 Reference Guide

Getting Started 1 - 7
Shutting Off the Digital Scanner Battery
Scan the Battery Off bar code below to shut off the battery for long term storage or shipping. Pull the digital
scanner trigger to turn on the battery.
Battery Off
Inserting the Battery

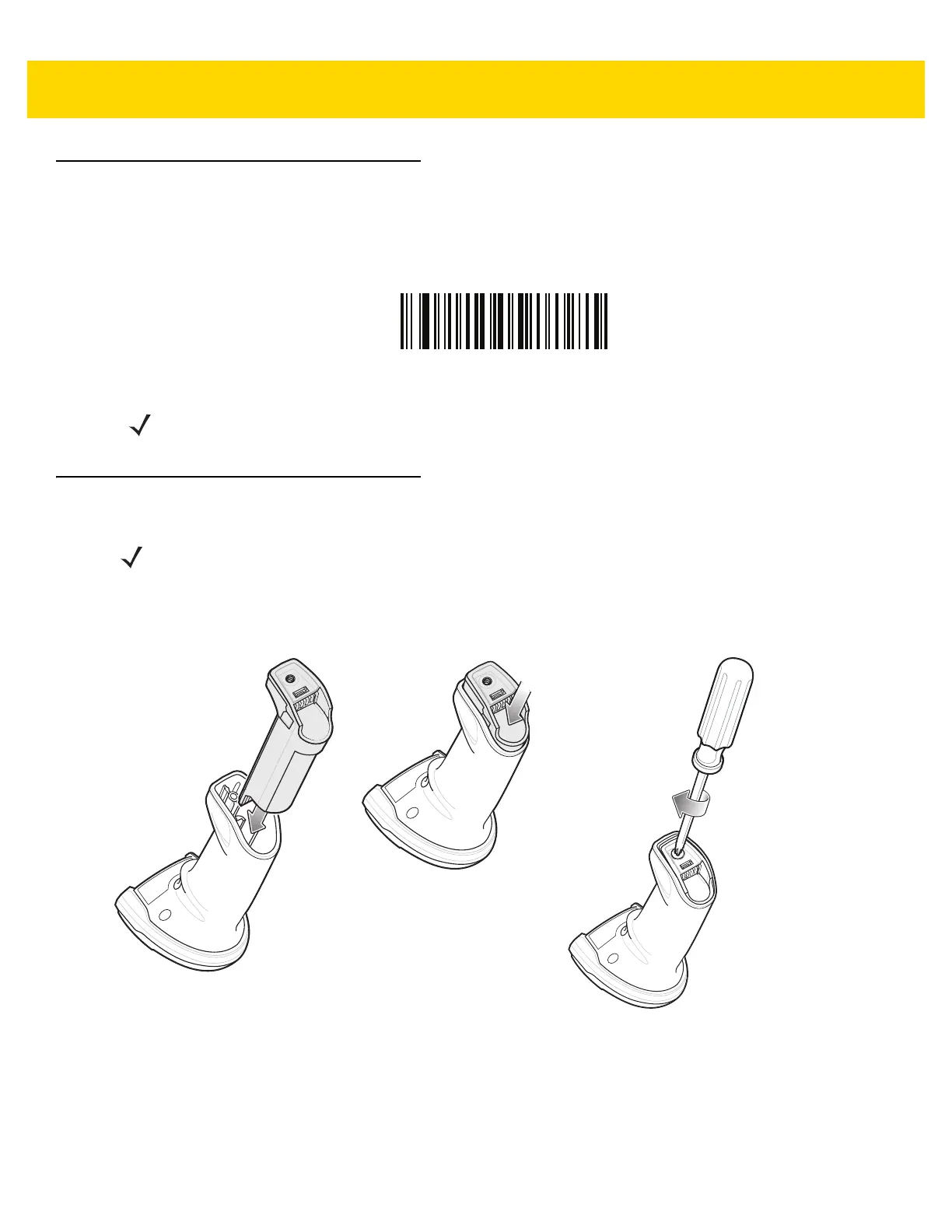

Figure 1-5 Inserting the Battery
To insert the battery into the digital scanner:
1. Insert the battery into the battery compartment and push down.
2. Turn the screw on the battery compartment clockwise to tighten. Do not over torque the screw.
NOTE Always scan the Battery Off bar code in hand-held mode. Also see Battery Preservation Mode on page
4-15 for additional battery features.
NOTES
1. It is recommended to fully charge the battery before first use.
2. The battery is initially shipped inside the digital scanner. Inserting a battery would only be
applicable for a replacement battery.

Zebra DS2278 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	White
LED indicators	Yes
Built-in display	No
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	645 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	-65 - 65 °
Motion tolerance (cm/s)	13
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
Optical sensor resolution (W x H)	640 x 480 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Battery life	84 h
Input voltage	4.5 - 5.5 V
Battery capacity	2400 mAh
Power source type	Battery, DC
Number of batteries supported	1
USB version	2.0
Bluetooth version	4.0
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	90 mm
Width	66 mm
Height	175 mm
Weight	214 g
