OPERATION
Axio Examiner Illumination and contrast procedures Carl Zeiss
M60-2-0003 e 05/2012 63
(4) Centering the DIC slider
Only for DIC sliders for objectives with a parfocal length of 45 mm.

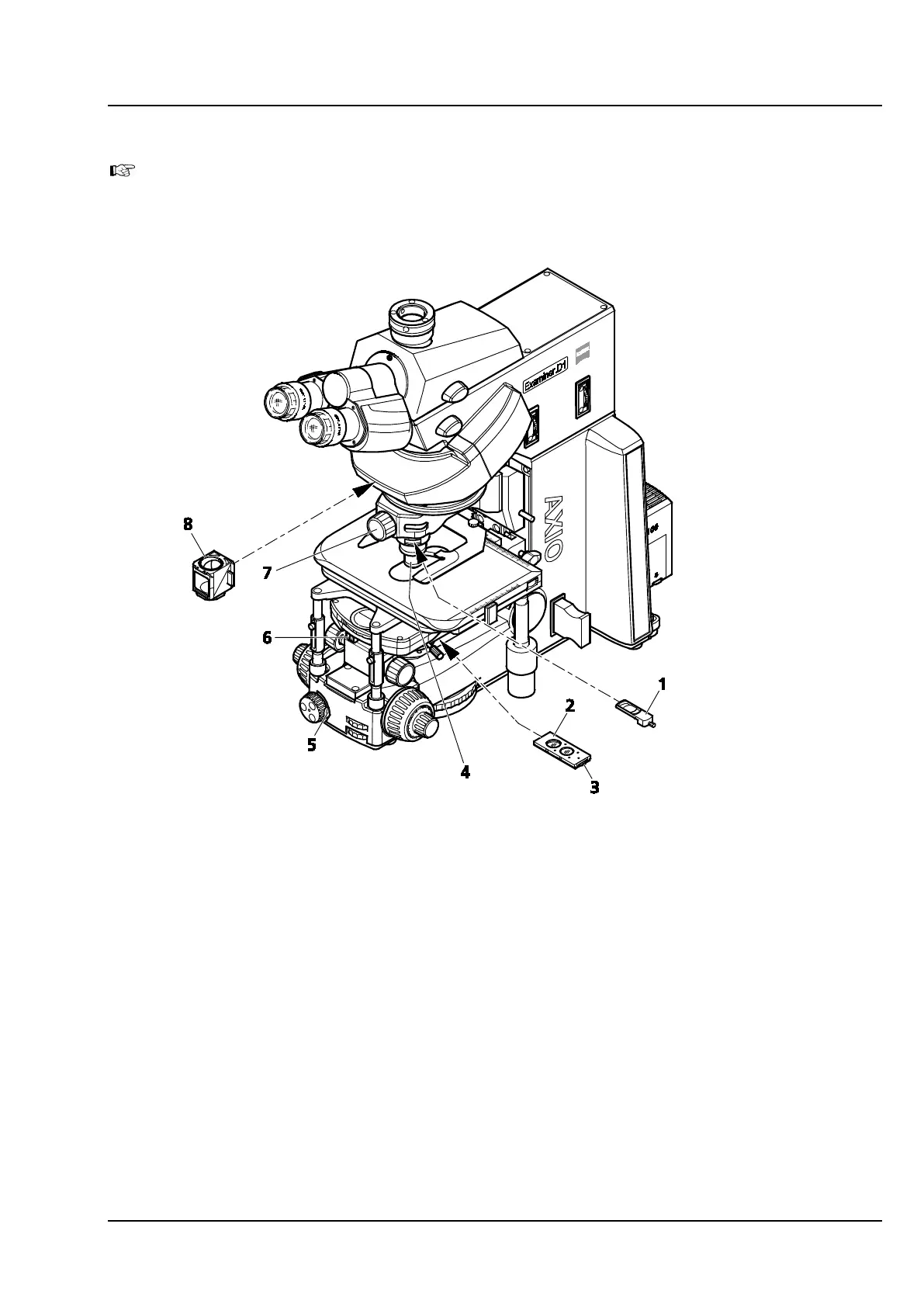

Figure 4-5 Axio Examiner.D1 with DIC equipment
− The DIC slider (Figure 4-5/1) is inserted properly into the objective adapter.
− The microscope adjusted for a bright field according to KÖHLER's rules.
− The 10x objective (or the overview objective used) (Figure 4-5/4) is in working position.
− The condenser turret has been swiveled into the bright field or into an unequipped position.
• Swing the SÉNARMONT polarizer (Figure 4-5/2) into the optical path.
• Turn the thumb wheel (Figure 4-5/3) at the SÉNARMONT polarizer to the 45° lock-in position.
• Swing in the analyzer module at the reflector turret (Figure 4-5/8).
• Remove one eyepiece from its eyepiece socket, and insert an auxiliary microscope.
• A diagonal black strip of the DIC slider is seen when observing the visual field through the auxiliary
microscope.
