Errors and faults
61211-1020202 CenterMax Operating Instructions

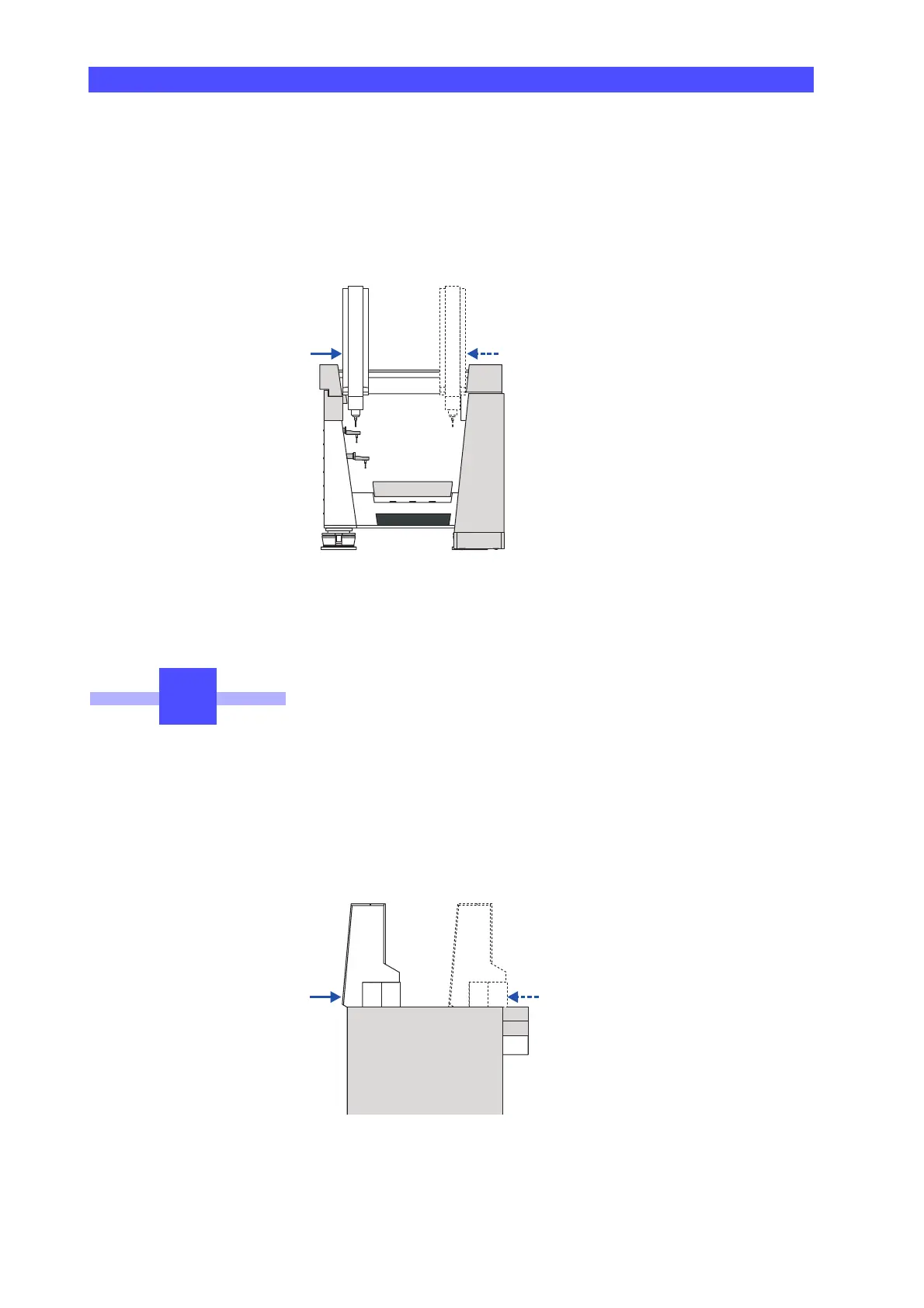

x direction: Position the probe head in the measuring volume by
pushing against the cover of the quill. If you cannot touch the cover
with your hands you then must push the bridge to the front of the
measuring volume in the y direction. Always observe the following:
• Push against the marked spot on the cover and move the quill
back into the measuring volume.
Depending on the quill position, you have to push against the
cover from the left- or right-hand side.
Important!
You may only push against the cover of the quill.
• Do not push against the quill or the probe head.
The probe head and quill may be damaged.
y direction: To return the probe head to the measuring volume,
push against the housing of the column on the drive side of the
bridge.
!
To Next Page
