Errors and faults
61211-1020202 CenterMax Operating Instructions
• Press the switch with a thin object while pulling the quill down-
wards.
Important!
Do not pull the probe head.
• Hold the quill above the probe head (2) in order to pull the quill
downwards.

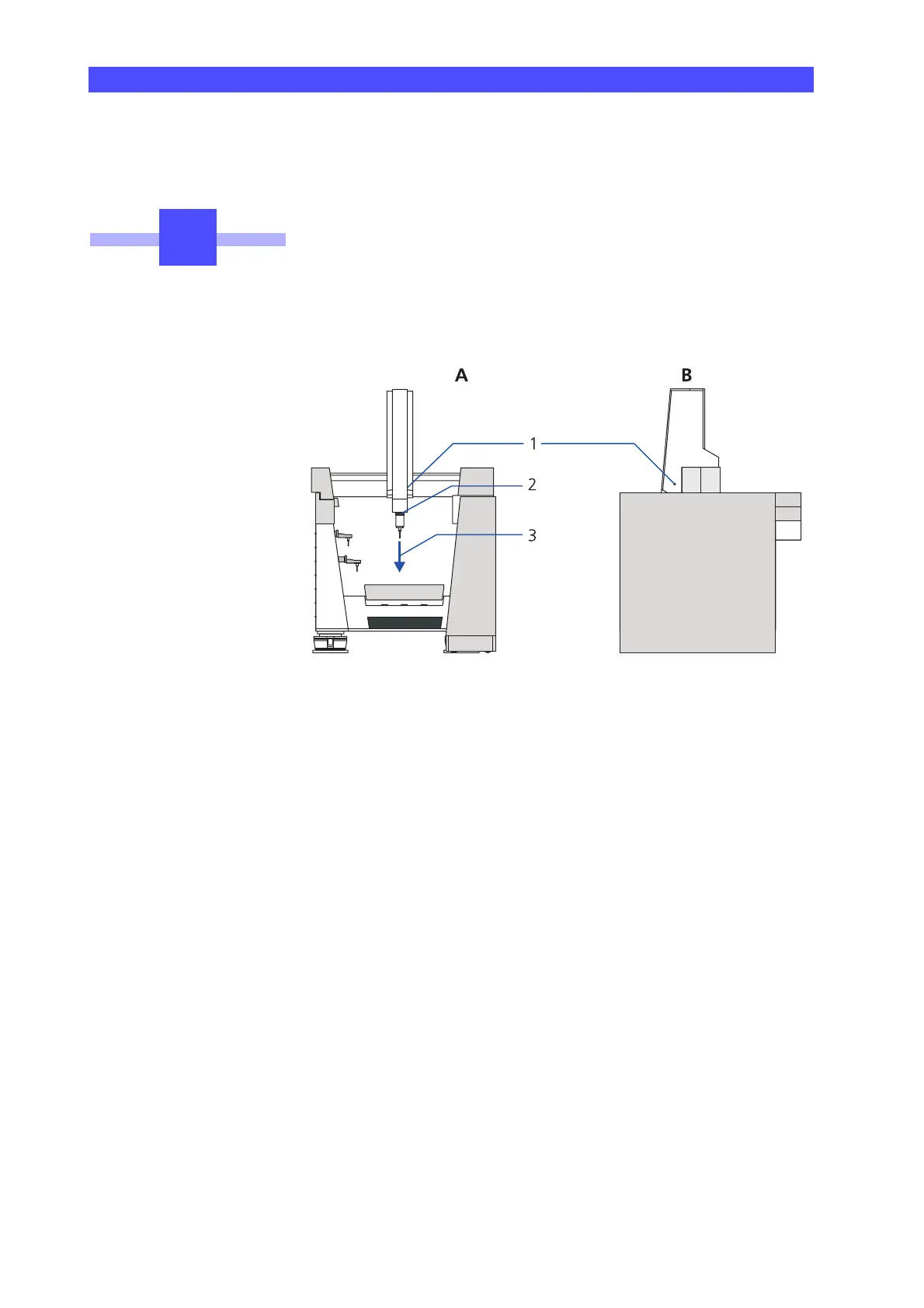

A Front view
B View from the right
1 Switch for fall brake
2Quill
3 Pull direction
Switching on the drives
The drives can be switched on after the probe head has been in the
measuring volume.
• Turn the rotary switch clockwise approx. 90° and hold it there until
the indicator lamp above lights up.
As soon as the indicator lamp above the switch lights up, the
drives are switched on. The rotary switch does not engage. It snaps
back as soon as it is released.
!
