5-12
Preparations for start-up
61211-1020202 CenterMax Operating Instructions
Installing a probe rack
In the case of the CenterMax, two different positions on the guide-
way side can be used for installing the profile rail. If you only have one
profile rail, you must mount it at the lower position first. This is neces-
sary for reasons of safety.

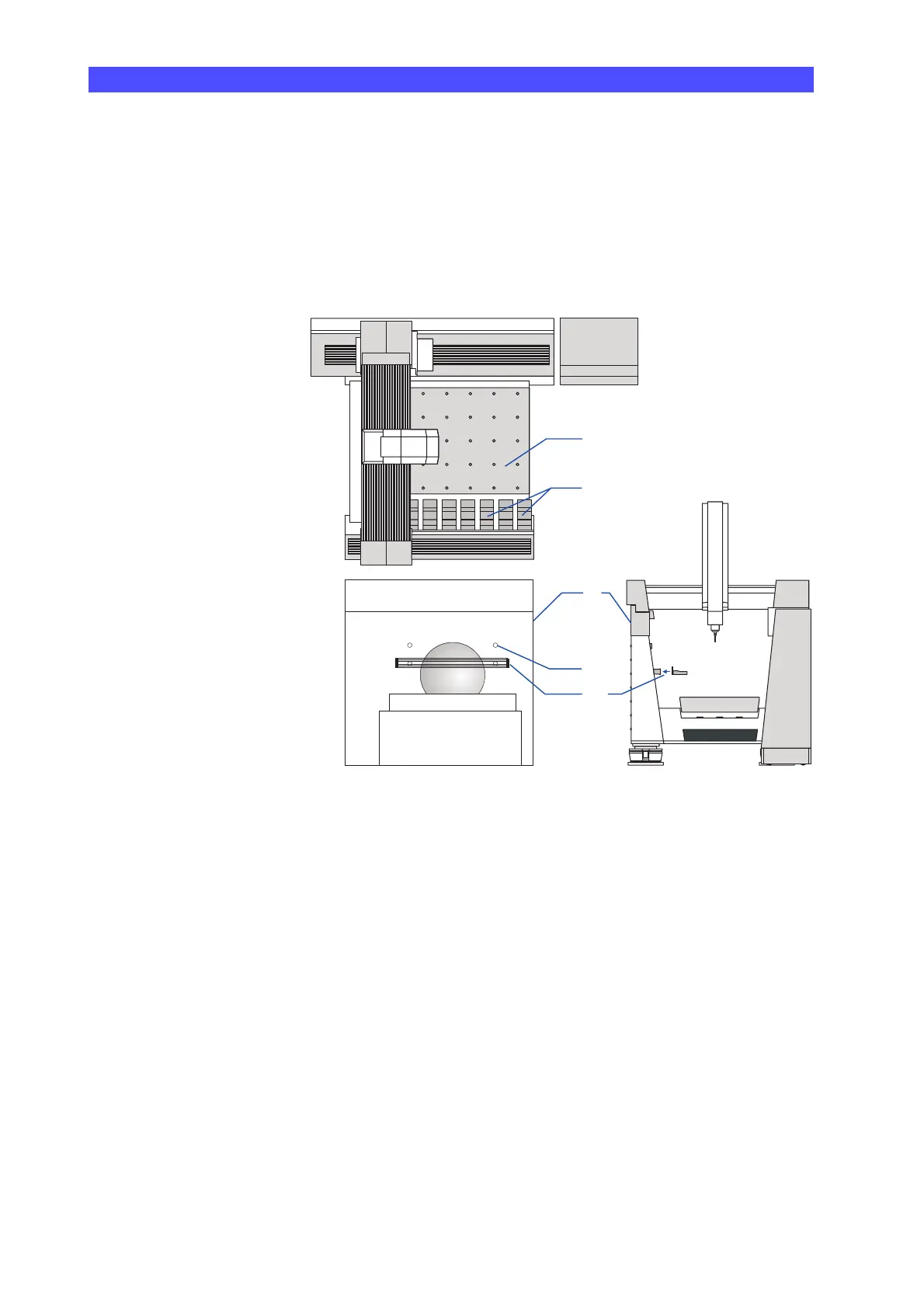

A CenterMax: top plan view.
B Guide side
1 Holders (storage positions)
2 Mounting option for upper position
3 Mounting the profile rail in the lower position
A
1
B
2
3
