Mounting the probe rack (option)
5-13CenterMax Operating Instructions61211-1020202

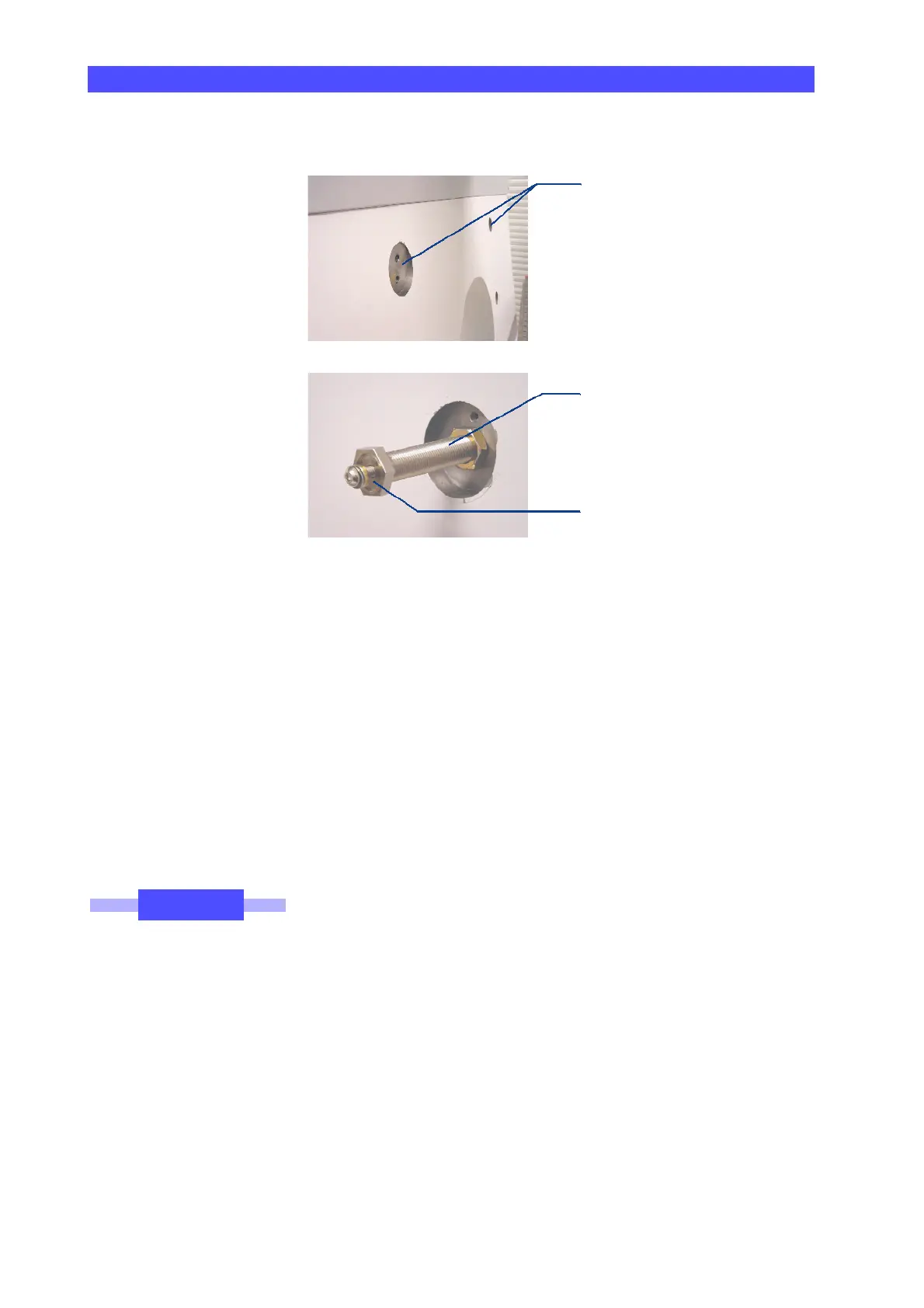

1 Threaded holes provided on the guide side
2 Threaded bolts
3 Fastening of the profile rail
Depending on whether the profile rail is to be mounted at the top or
at the bottom, threaded bolts of varying length are required.
• If you mount the profile rail at the top, you have to use long
threaded bolts.
• If you mount the profile rail at the bottom, you have to use short
threaded bolts.
Three threaded bolts are required per profile rail. Two threaded bolts
are screwed into the threaded holes at the front and one threaded
bolt is screwed into the threaded hole at the rear.
If you require more holders than can be mounted on two profile rails,
it is possible to mount a third profile rail on the drive side. However,
this will decrease the effective measuring range.
1
2
3
NOTE
